DPU7060Fet

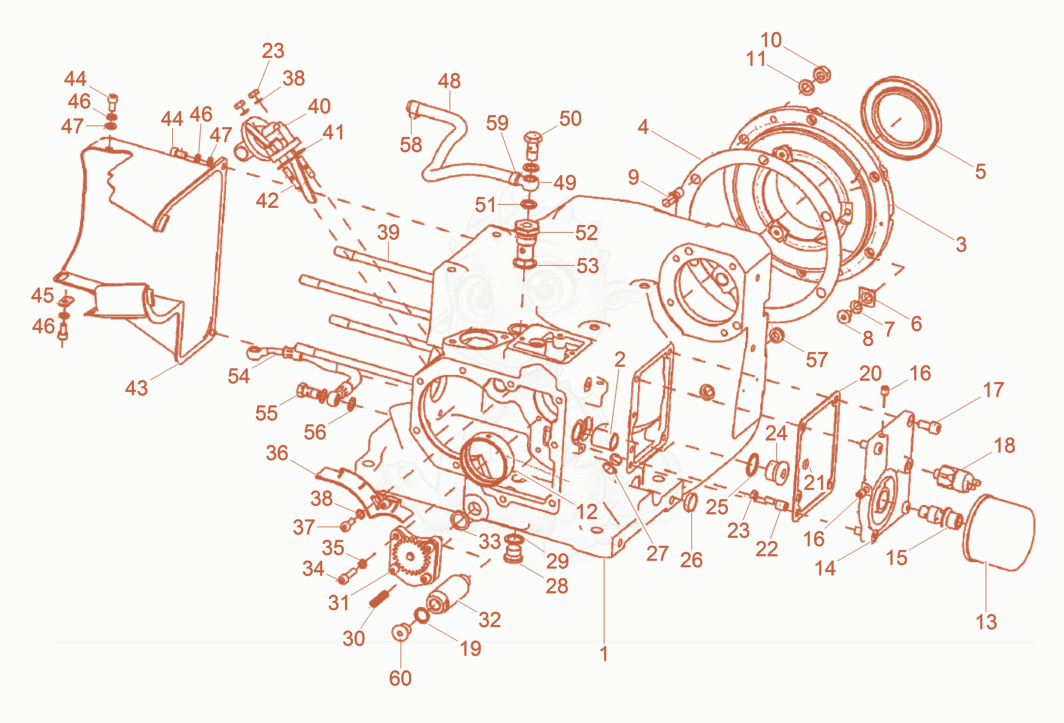

Despiece de Crankcase · DPU7060FET

Despiece del Crankcase de una máquina Wacker Neuson DPU7060FET, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100006275No la vendemos
    Crankcase×1
  • 25000037329
    $43.56
    Bushing - 5000037329×1
  • 35000104576
    $248.89
    Cover Bearing 5000104576×1
  • 45000037243
    $47.72
    GASKET - 5000037243×1
  • 55000099447
    $79.79
    SEAL-SHAFT,ROTARY - 5000099447×1
  • 65100006276No la vendemos
    Supporting plate×3
  • 75000204737
    $1.67
    WASHER V8.4 - 5000204737×3
  • 85000204761
    $2.77
    SCREW M8X12,COUNTERSUNK - 5000204761×3
  • 95000037241No la vendemos
    Threaded Stud Bolt×6
  • 105000204731
    $6.15
    NUT M10,HEX - 5000204731×6
  • 115000204694
    $5.80
    WASHER-SPRING A10 - 5000204694×6
  • 125000099428
    $88.04
    SLEEVE-BEARING BUSH - 5000099428×1
  • 135000063111
    $19.99
    FILTER-OIL - 5000063111×1
  • 145000099449
    $152.26
    Cover - 5000099449×1
  • 155000106033
    $124.92
    VALVE-PRESSURE RELIEF - 5000106033×1
  • 165000099450
    $3.60
    PLUG - 5000099450×2
  • 175000204715
    $9.89
    SCREW M8X16,SOCKET HD - 5000204715×2
  • 185000205701
    $385.28
    SWITCH-OIL PRESSURE - 5000205701×1
  • 195000204482
    $9.89
    SEAL-RING A14X18X1.5 - 5000204482×1
  • 205000099448
    $9.28
    Seal - 5000099448×1
  • 215000104578
    $5.54
    O-RING 6.3 X 2.4 - 5000104578×1
  • 225000104575
    $11.08
    BOLT-ECCENTRIC - 5000104575×1
  • 235000204729
    $1.94
    NUT M6,HEX - 5000204729×3
  • 245000204710
    $10.34
    SCREW A-M22X1.5-ST - 5000204710×1
  • 255000204750
    $4.47
    SEAL-RING A22X27X1.5 - 5000204750×1
  • 265000204699
    $11.87
    COVER A22 - 5000204699×1
  • 275000204700
    $5.27
    COVER B14 - 5000204700×1
  • 285000204709
    $13.02
    SCREW A-M16X1.5-ST - 5000204709×1
  • 295100006277No la vendemos
    Gasket×1
  • 305000204667
    $52.24
    SPRING-COMPRESSION - 5000204667×1
  • 315000204654
    $1,200.11
    OIL-PUMP - 5000204654×1
  • 325000204772
    $115.97
    extension - 5000204772×1
  • 335000204749
    $1.94
    SEAL-RING A17X23X1.5 - 5000204749×1
  • 345000204714
    $1.94
    SCREW M6X25,SOCKET HD - 5000204714×4
  • 355000204756
    $1.67
    WASHER-SPRING 6 - 5000204756×4
  • 365000099458
    $10.79
    GUARD - 5000099458×1
  • 375000204713
    $1.94
    SCREW M6X16,SOCKET HD - 5000204713×2
  • 385000204696
    $5.96
    WASHER-SPRING A6 - 5000204696×4
  • 395000044063No la vendemos
    Stud×4
  • 405000099496
    $606.67
    PUMP-FUEL - 5000099496×1
  • 415000099455
    $5.02
    GASKET - 5000099455×1
  • 425000204702
    $2.50
    BOLT M6X16,THREADED STUD - 5000204702×2
  • 435000204657
    $280.50
    COVER - 5000204657×1
  • 445000204718
    $2.50
    SCREW M6X12,SOCKET HD - 5000204718×4
  • 455000204631
    $11.09
    washer - 5000204631×1
  • 465000204692
    $5.96
    WASHER-SPRING A6 - 5000204692×4
  • 475000204688
    $5.96
    WASHER 6.4 - 5000204688×3
  • 485100006278No la vendemos
    Breather tube×1
  • 495100006279No la vendemos
    Connector×1
  • 505000204753
    $7.48
    SCREW M12X1.5 A6,HOLLOW - 5000204753×1
  • 515000204746
    $1.94
    SEAL-RING A12X18X1.5 - 5000204746×2
  • 525000204658
    $115.82
    VENT - 5000204658×1
  • 535000204750
    $4.47
    SEAL-RING A22X27X1.5 - 5000204750×1
  • 545000204483
    $95.95
    OIL RETURN LINE - 5000204483×1
  • 555000204754
    $11.43
    SCREW M10X1 A4,HOLLOW - 5000204754×1
  • 565000204751
    $6.41
    SEAL-RING A10X16X1 - 5000204751×2
  • 575000204680
    $9.89
    SLEEVE-CABLE SUPPORT - 5000204680×1
  • 585000204765
    $13.00
    CLAMP 8-16/9-C72 - 5000204765×1
  • 595000063800
    $6.04
    Clamp - 5000063800×1
  • 605000204708
    $6.27
    SCREW A-M14X1.5-ST - 5000204708×1
