DPU7060RC-VIBROPLATE,DIESEL,RC

Despiece de Vibratory Plate cpl. · DPU7060RC

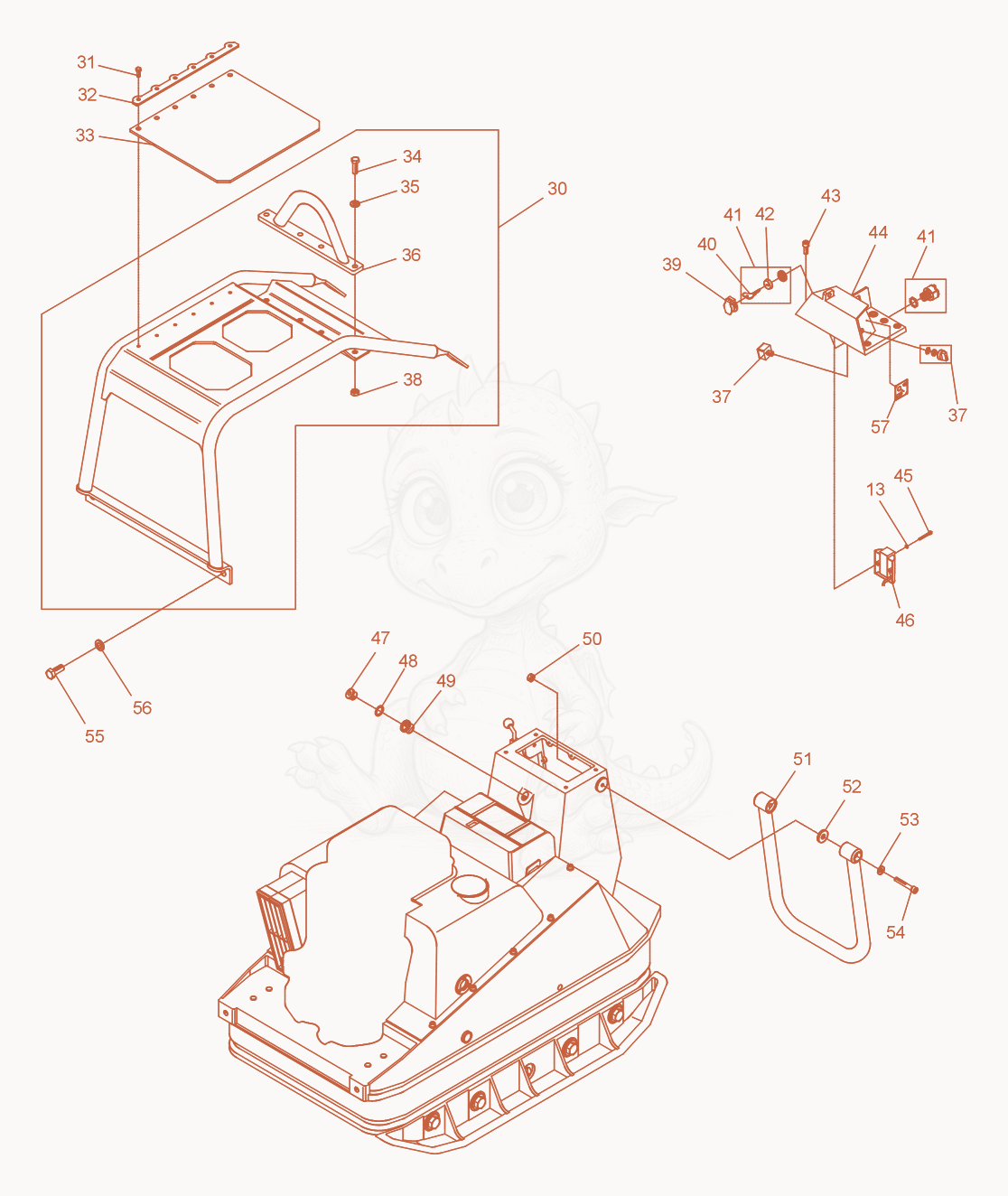

Despiece del Vibratory Plate cpl. de una máquina Wacker Neuson DPU7060RC, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 305000102171
    $1,201.89
    FRAME-PROTECTIVE - 5000102171×1
  • 315000013551
    $0.29
    SCREW M8 X 18 HX.HD. - 5000013551×6
  • 325000099915
    $79.72
    STRAP-HOLDER - 5000099915×1
  • 335000099909
    $147.40
    COVER-ACCESS - 5000099909×1
  • 345000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 355000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×4
  • 365000099055
    $118.33
    BRACKET-LIFTING EYE - 5000099055×1
  • 375000124592
    $19.17
    SWITCH-ROTARY 3-POSITION - 5000124592×1
  • 385000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 395000096903
    $12.61
    Cover - 5000096903×1
  • 405000045129
    $26.00
    KEY-IGNITION SWITCH - 5000045129×2
  • 415000097657No la vendemos
    Ignition starter switch×1
  • 425000094674
    $4.82
    CAP-PROTECTIVE COVER,IGN.KEY - 5000094674×2
  • 435000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×4
  • 445000106638
    $1,847.80
    Housing - 5000106638×1
  • 455000011571
    $0.06
    SCREW M4 X 12 SOC.HD. - 5000011571×2
  • 465000098655
    $846.79
    SENSOR-INFARED,CPT. - 5000098655×1
  • 475000011052
    $2.34
    PLUG M22 X 1.5 - 5000011052×1
  • 485000012084
    $0.66
    SEAL-RING 22 X 29 - 5000012084×1
  • 495000048930
    $53.99
    ADAPTER - 5000048930×1
  • 505000010883
    $0.29
    NUT M10 8,HEX - 5000010883×3
  • 515000069908
    $1,451.80
    GUIDE HANDLE - 5000069908×1
  • 525000069883
    $21.80
    Washer - 5000069883×2
  • 535000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×2
  • 545000013565
    $2.04
    SCREW M10 X 65 SOC.HD - 5000013565×2
  • 555000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×4
  • 565000021988
    $3.05
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×4
  • 575000124591
    $37.32
    LABEL-INFORMATION - 5000124591×1
