Vibration Plate DPU 80-110(r) KMAT

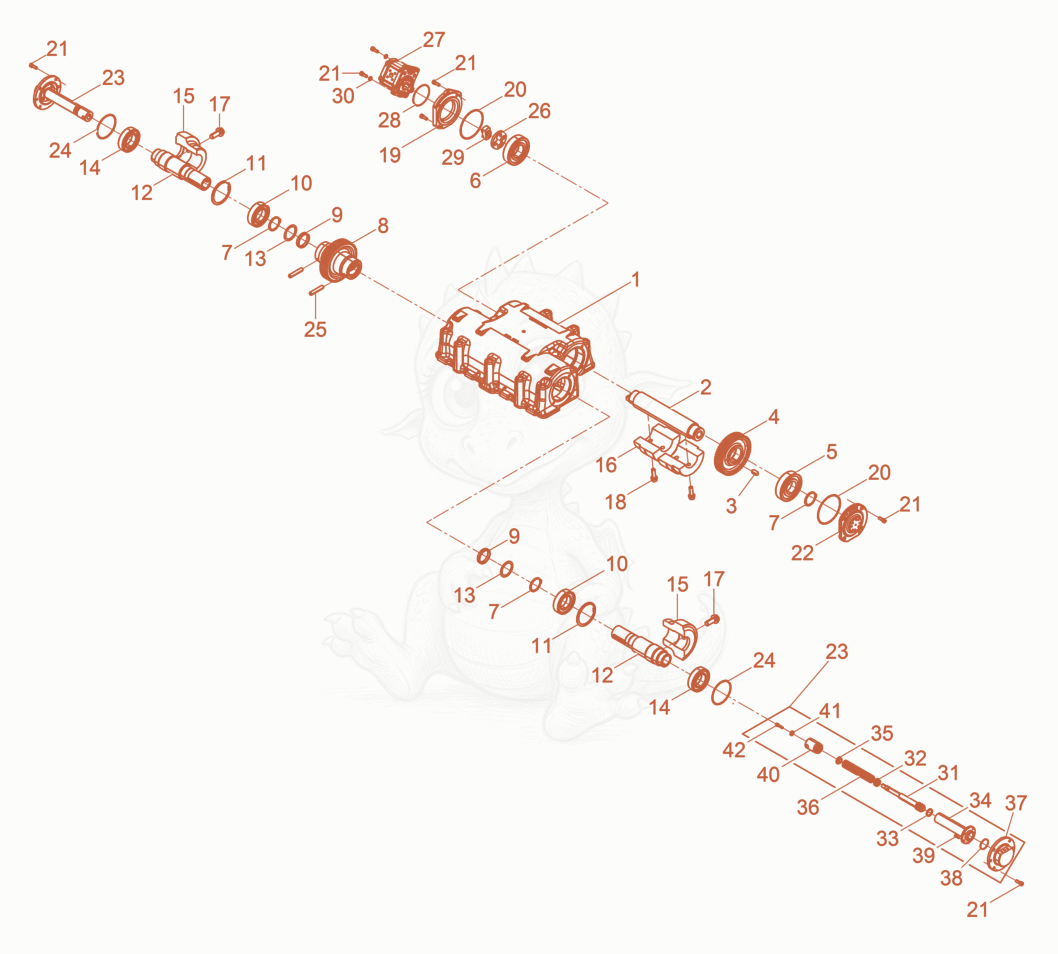

Despiece de Exciter cpl. DPU90r · DPU80/110KMAT
- Exciter housing W2R - 5100004477×1
- Driving shaft - 5100004298×1
- KEY A12 X 8 X 28 - 5002006603×1
- Gear - 5100004306×1
- Cylindrical roller bearing NUP 310 - 5100010479×1
- Cylindrical roller bearing NJ 310 - 5100015097×1
- RET.RING-EXT 50MMX2MM, - 5002006113×3
- Adjusting sleeve - 5100005260×1
- BUSH-BEARNG - 5000206436×2
- Cylindrical roller bearing NUP 2210 - 5100013880×2
- RET.RING-INT 90MMX3MM, - 5002007057×2
- Shaft - 5100004637×2
- Shim ring 50x 62x1,5 - 5100017940×2
- BEARING-CYL.RLR,NJ2210-ECP-C4 - 5000103469×2
- Eccentric weight - 5100025096×2
- Eccentric weight - 5100025094×2
- Screw-Securing M16x40 - 5100005815×2
- corrugated-head screw M12x 40 - 5100005604×4
- Flange - 5100005814×1
- O-ring 110,00x3,00 - 5100005660×2
- SCREW M8 X 22 SOC.HD. - 5000012629×20
- breather cover - 5100004294×1
- Adjusting Kpl. (DPU80r) - 5100013846×2
- O-ring 90,00x 3,00 - 5100010516×2
- PIN-TRIPPING - 5000204527×2
- Disc - 5100003535×1
- Gear pump left - 5100005740×1
- O-ring 80,00x 2,00 - 5100004118×1
- Carrier - 5100003696×1
- 305000010742No la vendemosWasher×4
- Piston - 5100005511×2
- grooved ring AUN100 18x28x8 - 5100005971×2
- Guide Ring WAT-25x28,1x4-E8D - 5100005972×2
- Cylinder Tube - 5100005508×2
- Stop disc - 5100005840×2
- Spring-Compression - 5100005921×2
- Cylinder Cover - 5100005507×2
- O-Ring 38,00x2,00 - 5100005970×2
- SCREW M5 X 12 SOC.HD. - 5000043307×10
- Piston cpl. - 5100016693×2
- Washer - 5000124717×2
- cylinder screw - 5000220001×2
