DT15

Despiece de AUXILIARY FUNCTION INST 1 (OPTION) · DT15

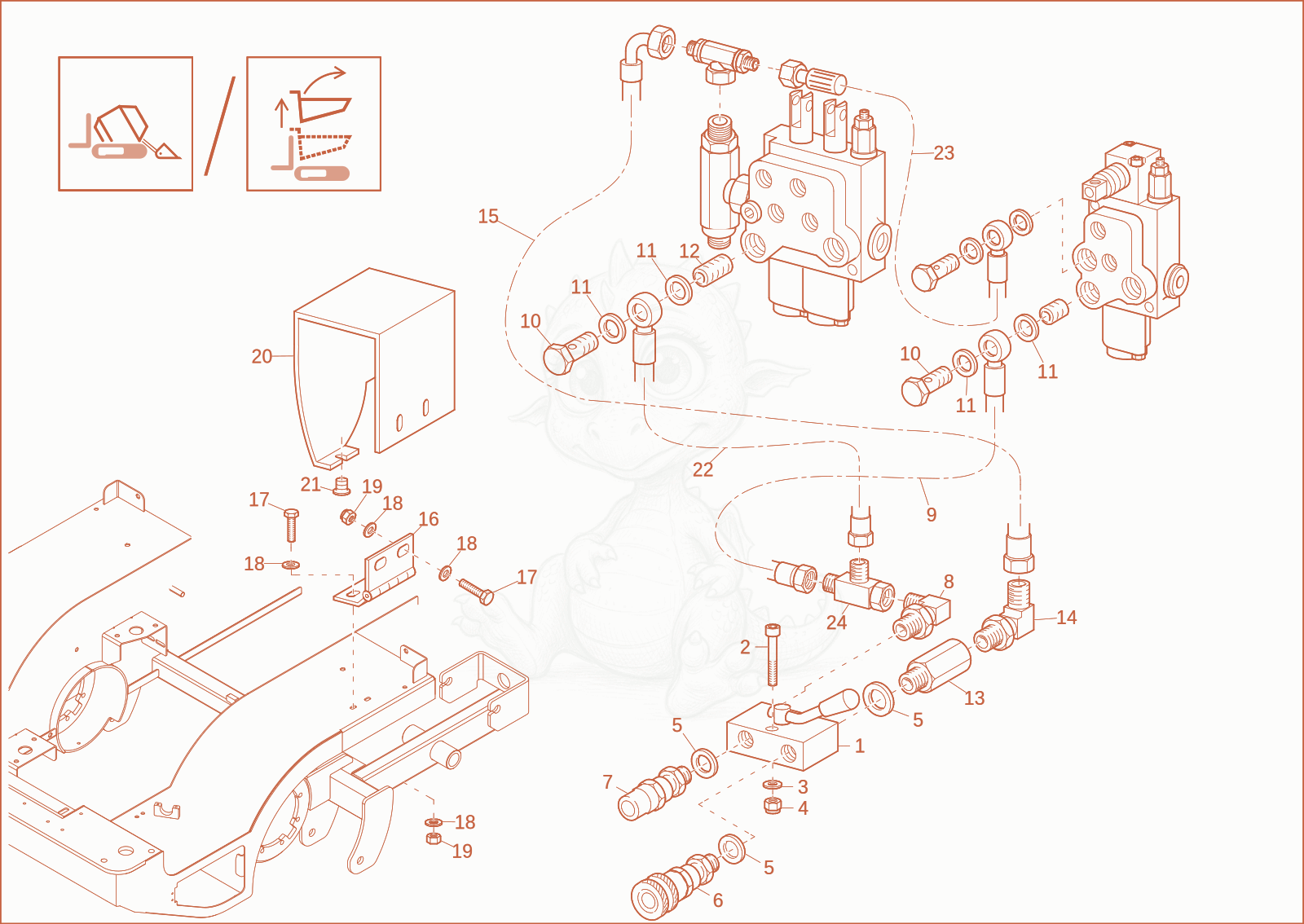

Despiece del AUXILIARY FUNCTION INST 1 (OPTION) de una máquina Wacker Neuson DT15, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000274315
    $237.62
    valve - 1000274315×1
  • 21000085458
    $0.73
    Screw M6x40-8.8 A2C DIN912 - 1000085458×2
  • 31000383668
    $1.24
    washer - 1000383668×2
  • 41000269276
    $1.24
    HEXAGON NUT - 1000269276×2
  • 51000022187No la vendemos
    seal ring×3
  • 61000274316
    $106.11
    QUICK LOCK COUPLING - 1000274316×1
  • 71000274317
    $175.45
    QUICK LOCK COUPLING - 1000274317×1
  • 81000270656
    $62.83
    VERSCHRAUBUNG EWE 3/8" - 1000270656×1
  • 91000274318
    $52.57
    SLHYDR 2SC 10 RN3/80 DK3/80 L350,0 0 - 1000274318×1
  • 101000274319
    $7.21
    BANJO BOLT - 1000274319×1
  • 111000129428
    $1.51
    copper ring - 1000129428×2
  • 121000274342
    $8.67
    PLUG - 1000274342×1
  • 131000273299
    $19.27
    EXTENSION - 1000273299×1
  • 141000275943
    $59.68
    Screw Joint - 1000275943×1
  • 151000275939
    $74.78
    SLHYDR 1SC 6,0DK1/20 DK1/290 L720,0 0 - 1000275939×1
  • 161000274345
    $106.55
    hinge - 1000274345×1
  • 171000013008No la vendemos
    hex screw×4
  • 181000013027No la vendemos
    washer×8
  • 191000269279
    $2.48
    hexagon nut - 1000269279×4
  • 201000274346No la vendemos
    cover×1
  • 211000274348
    $0.22
    PLUG - 1000274348×1
  • 221000270986
    $48.22
    SLHYDR 2SC 10 RN3/80 DK3/80 L500,0S0 - 1000270986×1
  • 231000274318
    $52.57
    SLHYDR 2SC 10 RN3/80 DK3/80 L350,0 0 - 1000274318×1
  • 241000284413
    $107.73
    Screw Joint - 1000284413×1
