DW15e

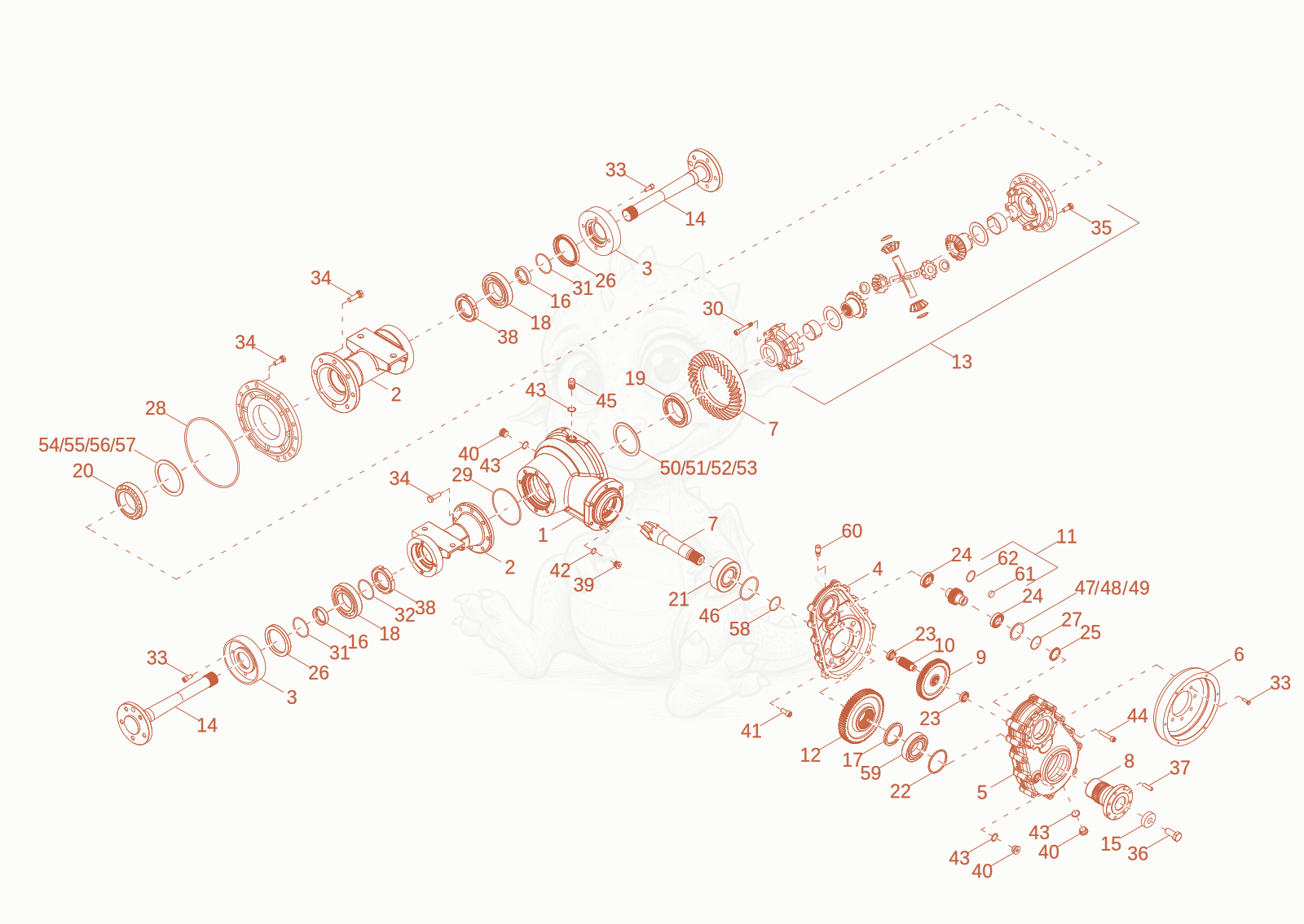

Despiece de REAR AXLE · DW15E

Despiece del REAR AXLE de una máquina Wacker Neuson DW15E, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000245561
    $1,219.90
    Differentialhousing 1000245561×1
  • 21000248093
    $1,664.30
    Axlepipe 1000248093×2
  • 31000320086
    $256.22
    cover - 1000320086×2
  • 41000325866No la vendemos
    gear box housing×1
  • 51000325865No la vendemos
    gear box housing×1
  • 61000321666No la vendemos
    drive flange×1
  • 71000248813
    $1,969.00
    PINION SET - 1000248813×1
  • 81000325863No la vendemos
    drive gear×1
  • 91000325841No la vendemos
    drive gear×1
  • 101000325861No la vendemos
    gear×1
  • 111000446851No la vendemos
    front gear×1
  • 121000325862No la vendemos
    drive gear×1
  • 131000245432
    $4,614.30
    Differentialhousing 1000245432×1
  • 141000320032No la vendemos
    axle shaft×2
  • 151000210255
    $103.47
    Washer - 1000210255×1
  • 161000320087
    $191.61
    shim - 1000320087×2
  • 171000325864No la vendemos
    shim×1
  • 181000320089
    $270.86
    bearing - 1000320089×2
  • 191000225309
    $85.53
    Bearing - 1000225309×1
  • 201000225681
    $73.43
    Bearing - 1000225681×1
  • 211000327572No la vendemos
    shaft seal×1
  • 221000325783No la vendemos
    shaft seal×1
  • 231000050299No la vendemos
    taper roller bearing×2
  • 241000225731No la vendemos
    ball bearing×2
  • 251000325836No la vendemos
    shaft seal×1
  • 261000015773No la vendemos
    rotary shaft seal×2
  • 271000015470No la vendemos
    lock ring×1
  • 281000224891
    $21.65
    O-RING - 1000224891×1
  • 291000224898
    $3.91
    O-RING - 1000224898×2
  • 301000222981
    $2.72
    SCREW - 1000222981×6
  • 311000320114
    $32.65
    o-ring - 1000320114×1
  • 321000320113No la vendemos
    support washer×1
  • 331000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×16
  • 341000204765
    $7.59
    SCREW - 1000204765×30
  • 351000222553
    $2.27
    SCREW - 1000222553×16
  • 361000047711No la vendemos
    hex screw×1
  • 371000222982
    $3.41
    SCREW - 1000222982×8
  • 381000320088No la vendemos
    set nut×2
  • 391000222699
    $14.02
    DIN 908, M18x1,5 124318 15 000 1 - 1000222699×1
  • 401000085307
    $11.32
    lock screw - 1000085307×2
  • 411000085473
    $1.28
    cheese head screw - 1000085473×2
  • 421000222584
    $2.07
    CU-Ring 18x 24x1.5 046018 24 000 100 - 1000222584×1
  • 431000224021
    $1.68
    WASHER-COPPER - 1000224021×3
  • 441000085470
    $1.38
    cheese head screw - 1000085470×12
  • 451000215186
    $96.61
    VENTING VALVE - 1000215186×1
  • 461000050324No la vendemos
    taper roller bearing×1
  • 471000092357No la vendemos
    fitting disc×1
  • 481000092328No la vendemos
    fitting disc×1
  • 491000092327No la vendemos
    fitting disc×1
  • 501000223168
    $11.95
    RING-SHIM - 1000223168×1
  • 511000223415
    $8.13
    RING-SHIM - 1000223415×1
  • 521000223169
    $3.39
    RING-SHIM - 1000223169×1
  • 531000223170
    $3.87
    RING-SHIM - 1000223170×1
  • 541000457604
    $44.45
    RING-SHIM - 1000457604×1
  • 551000223172
    $7.32
    RING-SHIM - 1000223172×1
  • 561000457607
    $48.95
    RING-SHIM - 1000457607×1
  • 571000457609
    $44.45
    RING-SHIM - 1000457609×1
  • 581000224936
    $2.84
    O-RING - 1000224936×1
  • 591000050184No la vendemos
    ball bearing×1
  • 601000198691
    $26.14
    Valve - 1000198691×1
  • 611000446808No la vendemos
    locking cap×1
  • 621000446802No la vendemos
    o-ring×1
