DW30-2

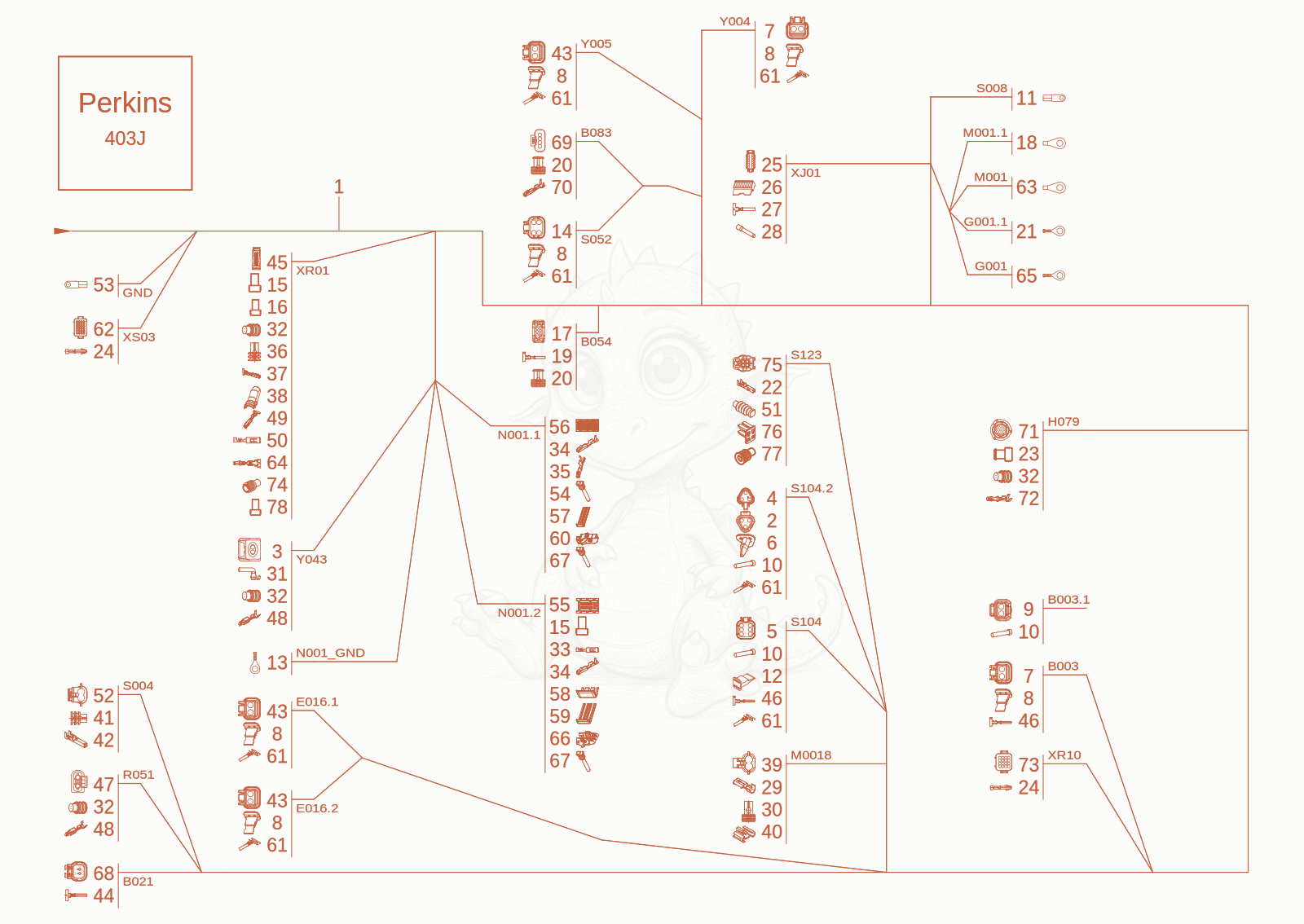

Despiece de main harness 2 option · DW30-2

11000570614No la vendemos
main harness×1
21000027394No la vendemos
pin housing×1
31000027410
$2.43
Housing - 1000027410×1
41000027429No la vendemos
housing×1
51000027431No la vendemos
bushing housing×1
61000027433
$1.57
locking - 1000027433×1
71000027438No la vendemos
bushing housing×2
81000475418
$0.73
Key - 1000475418×6
91000027445No la vendemos
pin housing×1
101000030446No la vendemos
plug×7
111000081760
$3.70
CABLE LUG - 1000081760×1
121000549660No la vendemos
locking×1
131000096859
$1.08
CABLE LUG - 1000096859×1
141000104286
$11.39
bushing housing - 1000104286×1
151000104739
$16.29
seal - 1000104739×10
161000104740
$1.41
lock plug - 1000104740×18
171000105100
$9.88
bushing housing - 1000105100×1
181000107757
$2.77
CABLE LUG - 1000107757×1
191000109455
$0.46
BUSHING CONTACT - 1000109455×6
201000109459
$3.86
Seal - 1000109459×10
211000110764
$9.03
cable lug - 1000110764×1
221000127379
$1.46
bushing contact - 1000127379×3
231000128773
$0.32
Plug - 1000128773×2
241000147471
$4.05
BUSHING CONTACT - 1000147471×38
251000148250
$29.62
Pin housing - 1000148250×1
261000148272
$2.17
Pin housing - 1000148272×1
271000148274
$1.84
bushing contact - 1000148274×10
281000161431
$0.66
Plug - 1000161431×2
291000191403
$0.70
bushing contact - 1000191403×2
301000191461
$0.32
Seal - 1000191461×2
311000228723
$10.08
RUBBER CAP - 1000228723×1
321000246747
$1.41
seal - 1000246747×11
331000260129
$1.03
Tube - 1000260129×6
341000260130
$0.99
Tube - 1000260130×68
351000260141
$2.07
Tube - 1000260141×1
361000260162
$0.42
seal - 1000260162×12
371000260164
$1.38
Tube - 1000260164×35
381000261548
$10.49
cover cap - 1000261548×1
391000263990
$22.78
bushing housing - 1000263990×1
401000263991
$7.04
LOCKING - 1000263991×1
411000268165
$0.66
seal - 1000268165×2
421000268166
$0.64
Tube - 1000268166×2
431000270365
$6.40
Plug Deutsch - 1000270365×3
441000283288
$3.30
bushing contact - 1000283288×2
451000303401
$54.31
plug sleeve housing - 1000303401×1
461000309284No la vendemos
bushing contact×4
471000315298No la vendemos
housing×1
481000334041No la vendemos
timer contact×4
491000338903No la vendemos
bushing contact×3
501000338907No la vendemos
Tube×4
511000344773
$1.06
Plug - 1000344773×1
521000346741No la vendemos
bushing housing×1
531000346811No la vendemos
cable lug×1
541000359477No la vendemos
blind plug×18
551000359480No la vendemos
pin housing×1
561000359522No la vendemos
pin housing×1
571000359526
$10.12
locking - 1000359526×1
581000359527
$3.30
locking - 1000359527×1
591000359528
$3.39
locking - 1000359528×1
601000359529
$36.42
COVER - 1000359529×1
611000359612No la vendemos
plug connection×17
621000363132No la vendemos
bushing housing×1
631000364917No la vendemos
cable lug×1
641000370413No la vendemos
bushing contact×2
651000371542No la vendemos
cable lug×1
661000374590
$15.16
cover - 1000374590×1
671000377990No la vendemos
blind plug×61
681000403611No la vendemos
bushing housing×1
691000409850No la vendemos
bushing housing×1
701000410245No la vendemos
bushing contact×4
711000466742
$27.06
plug - 1000466742×1
721000467030No la vendemos
plug×5
731000467310No la vendemos
bushing housing×1
741000468063
$1.47
Seal - 1000468063×3
751000474125No la vendemos
bushing housing×1
761000498911
$1.64
locking - 1000498911×1
771000234666No la vendemos
seal×3
781000104738
$1.51
seal - 1000104738×23
