DW60 Dumper

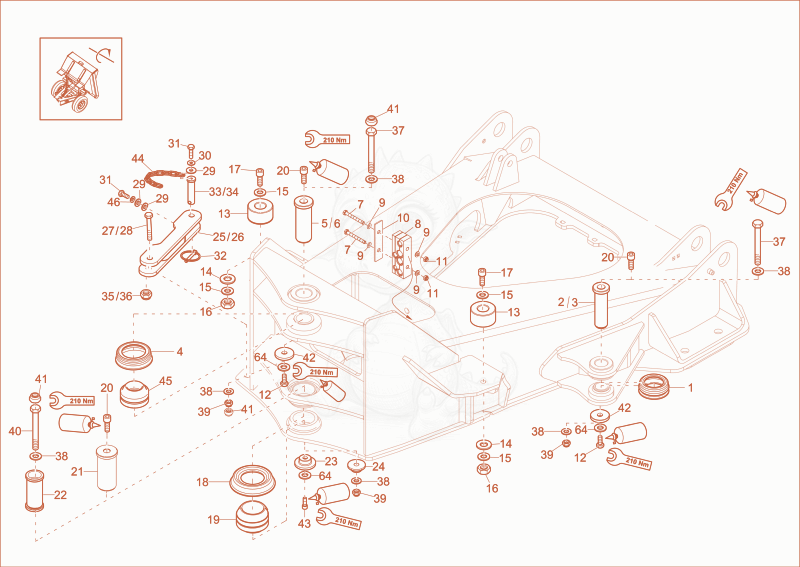

Despiece de front part frame · DW60
- bearing - 1000351711×1
- steering ram pin - 1000328567×1
- Steering Cylinder Pin D18-01 - 1000350320×1
- seal - 1000351809×1
- PIN - 1000328566×1
- PIN - 1000350317×1
- 71000022334No la vendemoshex screw×2
- hose clamp - 1000343844×1
- 91000015431No la vendemoswasher×4
- 101000344053No la vendemosadapter plate×1
- DIN985-M8-8-A2C - 1000015416×2
- 121000015404No la vendemoshex screw×2
- bucket support - 1000114225×2
- WASHER - 1000021001×2
- 151000015439No la vendemoslock washer×4
- HEXAGON NUT - 1000085583×2
- 171000309088No la vendemoscheese head screw×2
- seal - 1000350993×1
- Pivotingbearing 1000224984×1
- 201000015363No la vendemoscheese head screw×3
- PIN - 1000328565×1
- PIN - 1000350318×1
- Pin End Piece - 1000335202×1
- Pin End Piece - 1000350319×1
- Bucklesupport 1000104145×1
- 261000341800No la vendemosbuckle support×1
- HEX SCREW - 1000130667×1
- hex screw - 1000141354×1
- washer A 6,4 St A2C DIN9021 - 1000095343×3
- 301000015451No la vendemosnorthlock disc×3
- 311000018400No la vendemoshex screw×2
- 321000015457No la vendemoscotter pin×1
- PIN - 1000166858×1
- pin - 1000341831×1
- 351000020788No la vendemoshexagon nut×1
- 361000018412No la vendemoshexagon nut×1
- HEX SCREW - 1000350322×2
- WASHER - 1000021001×6
- 391000350326No la vendemoshexagon nut×3
- Hex screw M16x180-8.8 A2K-DIN931 - 1000350323×1
- CAP - 1000352777×3
- washer - 1000335146×2
- 431000335148No la vendemoscheese head screw×1
- CHAIN - 1000097224×0.15
- Pivotingbearing 1000224321×1
- 461000015436No la vendemoslock washer×2
