DW90 Dumper

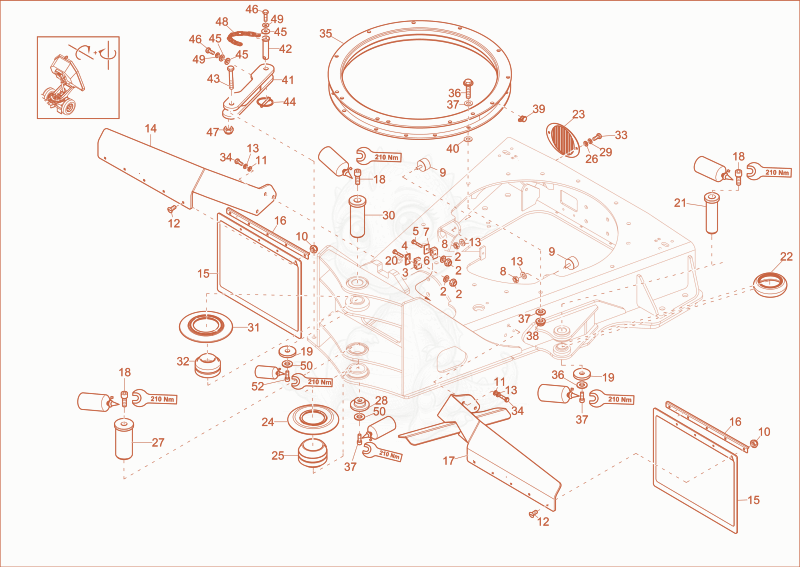

Despiece de frame front part (Option) · DW90
- 11000015431No la vendemoswasher×2
- DIN985-M8-8-A2C - 1000015416×2
- clamp body - 1000099510×2
- 41000015629No la vendemoscover plate×2
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
- clamp Body - 1000083285×1
- 71000022379No la vendemoscover plate×1
- 81000015407No la vendemoshexagon nut×2
- 91000325020No la vendemosrubber buffer×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×10
- washer 10,5 A2C DIN125 - 1000015432×6
- door strap screw - 1000299983×10
- 131000015438No la vendemoslock washer×8
- 141000335161No la vendemosdust catch bracket×1
- Dustcatch 1000110235×2
- 161000314882No la vendemosangle bracket×2
- 171000339685No la vendemosdust catch bracket×1
- 181000015363No la vendemoscheese head screw×3
- washer - 1000335146×2
- 201000022334No la vendemoshex screw×1
- steering ram pin - 1000328567×1
- bearing - 1000322848×1
- light protection screen - 1000075195×2
- bearing protection - 1000322314×1
- Pivotingbearing 1000224984×1
- 261000015431No la vendemoswasher×4
- PIN - 1000328565×1
- Pin End Piece - 1000335202×1
- 291000015437No la vendemoslock washer×4
- PIN - 1000328566×1
- bearing - 1000321594×1
- Pivotingbearing 1000224321×1
- 331000013008No la vendemoshex screw×4
- 341000015364No la vendemoshex screw×6
- 351000331602No la vendemosslewing ring×1
- 361000321680No la vendemossocket cap screw×14
- 371000015451No la vendemosnorthlock disc×24
- 381000015423No la vendemoshexagon nut×10
- protecting cap - 1000079457×4
- WASHER - 1000252801×7
- Bucklesupport 1000104145×1
- PIN - 1000166858×1
- HEX SCREW - 1000130667×1
- 441000015457No la vendemoscotter pin×1
- washer A 6,4 St A2C DIN9021 - 1000095343×3
- 461000018400No la vendemoshex screw×2
- 471000020788No la vendemoshexagon nut×1
- CHAIN - 1000097224×0.15
- 491000015436No la vendemoslock washer×2
- 501000015451No la vendemosnorthlock disc×3
- 511000335148No la vendemoscheese head screw×2
- 521000015404No la vendemoshex screw×1
