Despiece de Chassis SPC · ET08

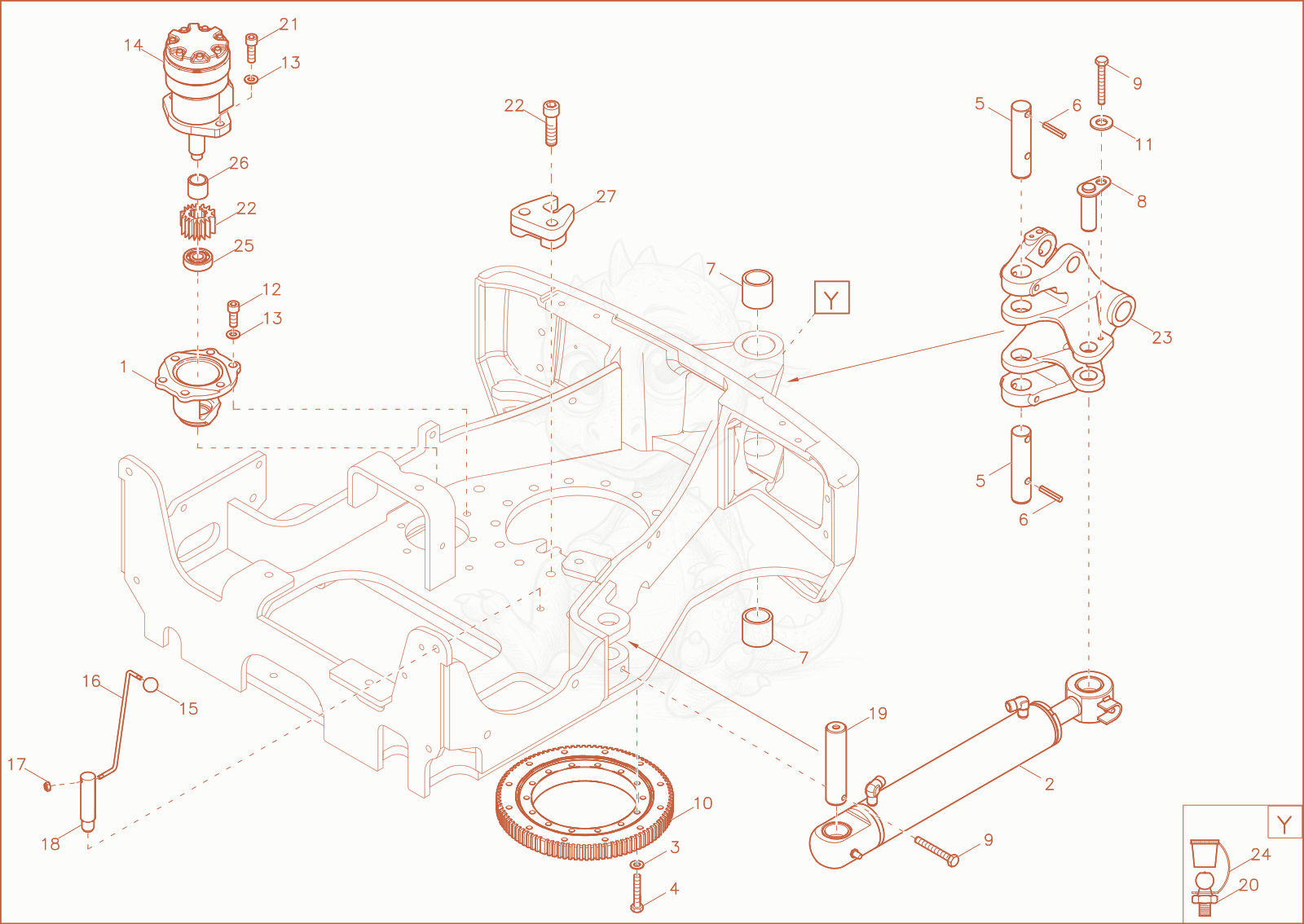

Despiece del Chassis SPC de una máquina Wacker Neuson ET08, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000373654
    $124.83
    bearing - 1000373654×1
  • 21000386411
    $627.20
    boom offset cylinder - 1000386411×1
  • 31000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×12
  • 41000048076No la vendemos
    hex screw×12
  • 51000150640
    $50.61
    PIN - 1000150640×2
  • 61000154258
    $3.15
    cotter pin - 1000154258×2
  • 71000015615No la vendemos
    steel bushing×2
  • 81000161982
    $104.05
    PIN X-1000267693 - 1000161982×1
  • 91000085433
    $1.42
    HEX SCREW - 1000085433×2
  • 101000500252No la vendemos
    slewing ring×1
  • 111000015442No la vendemos
    u-washer×1
  • 121000085510
    $1.03
    allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×4
  • 131000022017No la vendemos
    spring washer×6
  • 141000254395
    $780.98
    Swiveldrive 1000254395×1
  • 151000151223
    $6.68
    ball button - 1000151223×1
  • 161000151124
    $16.39
    twist lock - 1000151124×1
  • 171000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 181000323969
    $15.48
    PIN - 1000323969×1
  • 191000149808
    $44.19
    PIN - 1000149808×1
  • 201000015475No la vendemos
    grease nipple×1
  • 211000085511
    $1.23
    cheese head screw M12x45 10.9Dacro500DIN - 1000085511×2
  • 221000149202
    $191.04
    CROWN WHEEL SWIVEL DRIVE - 1000149202×1
  • 231000358421No la vendemos
    swivel console×1
  • 241000015480No la vendemos
    cap grease nipple×1
  • 251000325734No la vendemos
    ball bearing×1
  • 261000150851
    $16.67
    BUSHING - 1000150851×1
  • 271000500259No la vendemos
    plate×1
