ET145

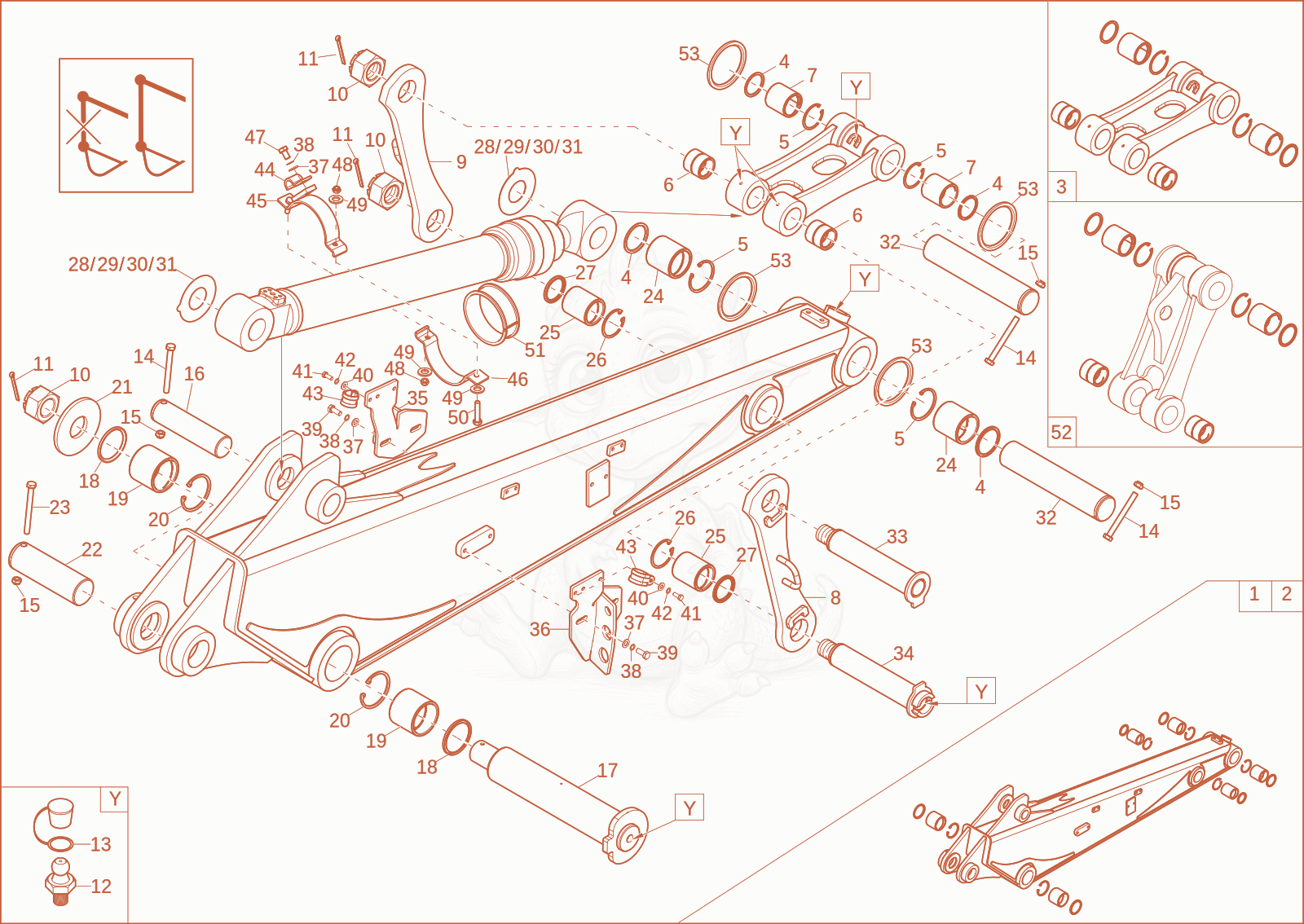

Despiece de DIPPER ARM LONG (OPTION) · ET145

Despiece del DIPPER ARM LONG (OPTION) de una máquina Wacker Neuson ET145, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000318974No la vendemos
    pre-assembled dipperstick long×1
  • 21000318976No la vendemos
    PRE-ASSEMBLED DIPPER ARM×1
  • 31000386083No la vendemos
    PRE-ASSEMBLED CONNECTING LINK×1
  • 41000015703No la vendemos
    pin gasket×4
  • 51000020135No la vendemos
    lock ring×4
  • 61000246218
    $99.67
    steel bushing - 1000246218×2
  • 71000176706
    $74.43
    STEEL BUSHING - 1000176706×2
  • 81000187283
    $546.58
    Pivotplate 1000187283×1
  • 91000187282
    $522.85
    Pivotplate 1000187282×1
  • 101000082578
    $20.22
    Crownnut 1000082578×3
  • 111000082747
    $1.10
    COTTERPIN - 1000082747×3
  • 121000082805
    $0.95
    grease nipple M10x1 - 1000082805×6
  • 131000015480No la vendemos
    cap grease nipple×6
  • 141000082360
    $2.01
    HEX SCREW - 1000082360×3
  • 151000082585
    $0.93
    HEXAGON NUT - 1000082585×4
  • 161000248082
    $171.26
    Pin 1000248082×1
  • 171000176712
    $421.85
    Pin 1000176712×1
  • 181000176731
    $45.07
    pin gasket - 1000176731×2
  • 191000176701
    $97.60
    Steelbushing 1000176701×2
  • 201000085642
    $3.01
    LOCK RING - 1000085642×2
  • 211000176729
    $44.11
    WASHER - 1000176729×1
  • 221000248083
    $225.60
    Pin 1000248083×1
  • 231000082356
    $3.82
    HEX SCREW - 1000082356×1
  • 241000176706
    $74.43
    STEEL BUSHING - 1000176706×2
  • 251000176705
    $71.39
    STEEL BUSHING - 1000176705×2
  • 261000015474No la vendemos
    lock ring×2
  • 271000083641
    $18.01
    pin gasket - 1000083641×2
  • 281000182805
    $19.32
    SHIM - 1000182805×1
  • 291000182807
    $18.01
    SHIM - 1000182807×1
  • 301000182814
    $27.60
    SHIM - 1000182814×1
  • 311000182811
    $29.57
    SHIM - 1000182811×1
  • 321000235847
    $259.17
    Pin 1000235847×2
  • 331000246216
    $253.73
    Pin 1000246216×1
  • 341000246215
    $287.72
    Pin 1000246215×1
  • 351000353464No la vendemos
    bracket hose×1
  • 361000353462No la vendemos
    bracket hose×1
  • 371000049219No la vendemos
    washer×5
  • 381000082609
    $0.73
    lock washer - 1000082609×5
  • 391000015347No la vendemos
    hex screw×4
  • 401000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 411000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 421000015438No la vendemos
    lock washer×2
  • 431000062589No la vendemos
    pipe clamp×2
  • 441000015634No la vendemos
    pipe clamp×1
  • 451000356444
    $41.25
    clamp - 1000356444×1
  • 461000356096
    $14.36
    clamp - 1000356096×1
  • 471000085417
    $1.06
    hex screw - 1000085417×1
  • 481000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 491000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 501000085414
    $0.98
    hex screw - 1000085414×1
  • 511000356499No la vendemos
    rubber×0.4
  • 521000383296No la vendemos
    PRE-ASSEMBLED CONNECTING LINK×1
  • 531000361955
    $8.09
    O-Ring - 1000361955×4
