ET90

Despiece de wire harness chassis, engine · ET90

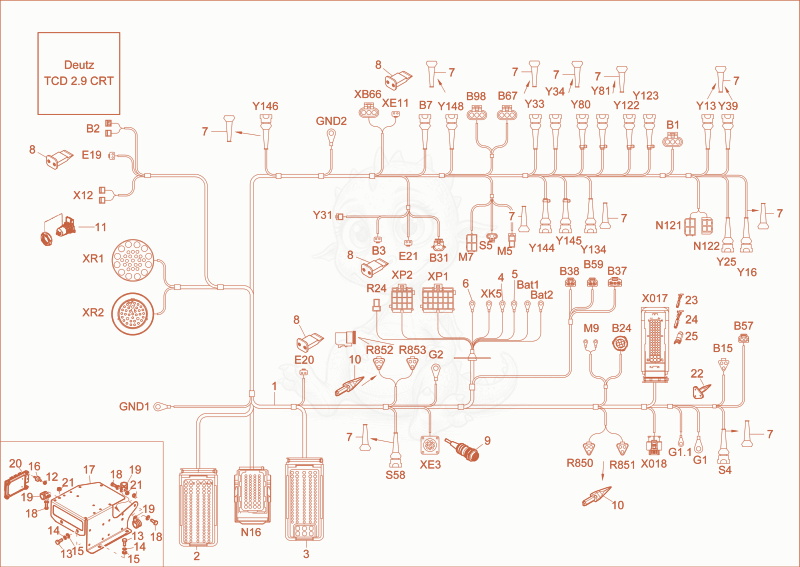

Despiece del wire harness chassis, engine de una máquina Wacker Neuson ET90, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000338028
    $3,511.27
    WIRE HARNESS - 1000338028×1
  • 21000261337
    $39.49
    TUBE - 1000261337×1
  • 31000260149
    $126.41
    Tube - 1000260149×1
  • 41000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 61000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 71000027466No la vendemos
    protecting cap×18
  • 81000027442No la vendemos
    wedge×5
  • 91000298661
    $386.76
    pin housing - 1000298661×1
  • 101000027400
    $1.79
    wedge - 1000027400×4
  • 111000002902No la vendemos
    socket×1
  • 121000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×9
  • 131000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 141000015438No la vendemos
    lock washer×4
  • 151000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 161000151465
    $4.13
    METAL- RUBBER BUFFER - 1000151465×5
  • 171000348269
    $112.07
    BRACKET - 1000348269×1
  • 181000013008No la vendemos
    hex screw×3
  • 191000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×3
  • 201000320907
    $1,392.66
    CONTROL - 1000320907×1
  • 211000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 221000027433
    $1.57
    locking - 1000027433×1
  • 231000260164
    $1.38
    Tube - 1000260164×1
  • 241000338907No la vendemos
    Tube×1
  • 251000261548
    $10.49
    cover cap - 1000261548×1
  • B11000051989No la vendemos
    bushing housing×1
  • B151000027429No la vendemos
    housing×1
  • B21000027435No la vendemos
    insulating sleeve×2
  • B241000128760
    $6.49
    bushing housing - 1000128760×1
  • B31000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • B311000346741No la vendemos
    bushing housing×1
  • B371000168235
    $20.80
    bushing housing - 1000168235×1
  • B381000126125
    $22.78
    bushing housing - 1000126125×1
  • B571000126125
    $22.78
    bushing housing - 1000126125×1
  • B591000260161
    $4.05
    bushing housing - 1000260161×1
  • B671000051989No la vendemos
    bushing housing×1
  • B71000027332
    $3.80
    housing - 1000027332×1
  • B981000051989No la vendemos
    bushing housing×1
  • BAT11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • BAT21000096859
    $1.08
    CABLE LUG - 1000096859×1
  • E191000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • E201000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • E211000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • G11000100364
    $3.82
    cable lug - 1000100364×1
  • G1.11000101271
    $1.91
    cable lug - 1000101271×1
  • GND11000107755
    $6.49
    cable lug - 1000107755×1
  • GND21000107755
    $6.49
    cable lug - 1000107755×1
  • M51000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • M71000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • M91000101271
    $1.91
    cable lug - 1000101271×2
  • N1211000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • N1221000095324
    $6.16
    plug housing - 1000095324×1
  • N161000306993
    $104.58
    PLUG - 1000306993×1
  • R241000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • R8501000027394No la vendemos
    pin housing×1
  • R8511000027394No la vendemos
    pin housing×1
  • R8521000027394No la vendemos
    pin housing×1
  • R8531000027394No la vendemos
    pin housing×1
  • S41000027410
    $2.43
    Housing - 1000027410×1
  • S51000110449
    $2.46
    plug bushing - 1000110449×1
  • S581000027410
    $2.43
    Housing - 1000027410×1
  • X0171000260163
    $44.53
    plug sleeve housing - 1000260163×1
  • X0181000308732
    $22.46
    plug bushing - 1000308732×1
  • X191000027435No la vendemos
    insulating sleeve×2
  • XB661000051989No la vendemos
    bushing housing×1
  • XE111000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • XE31000163185
    $92.19
    bushing housing - 1000163185×1
  • XK51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • XP11000099076
    $2.90
    bushing housing - 1000099076×1
  • XP21000098961
    $3.01
    bushing housing - 1000098961×1
  • XR11000146158
    $257.29
    LUG HOUSING - 1000146158×1
  • XR21000333984No la vendemos
    bushing housing×1
  • Y1221000027410
    $2.43
    Housing - 1000027410×1
  • Y1231000027332
    $3.80
    housing - 1000027332×1
  • Y131000027410
    $2.43
    Housing - 1000027410×1
  • Y1341000027410
    $2.43
    Housing - 1000027410×1
  • Y1441000027410
    $2.43
    Housing - 1000027410×1
  • Y1451000027332
    $3.80
    housing - 1000027332×1
  • Y1461000027410
    $2.43
    Housing - 1000027410×1
  • Y1481000027410
    $2.43
    Housing - 1000027410×1
  • Y251000027410
    $2.43
    Housing - 1000027410×1
  • Y311000085014
    $4.18
    PLUG - 1000085014×1
  • Y331000027410
    $2.43
    Housing - 1000027410×1
  • Y341000027332
    $3.80
    housing - 1000027332×1
  • Y391000027332
    $3.80
    housing - 1000027332×1
  • Y801000027410
    $2.43
    Housing - 1000027410×1
  • Y811000027332
    $3.80
    housing - 1000027332×1
