G120 Generator,Hertz,Cold Weather

Despiece de Voltage Selector Switch Box · G120

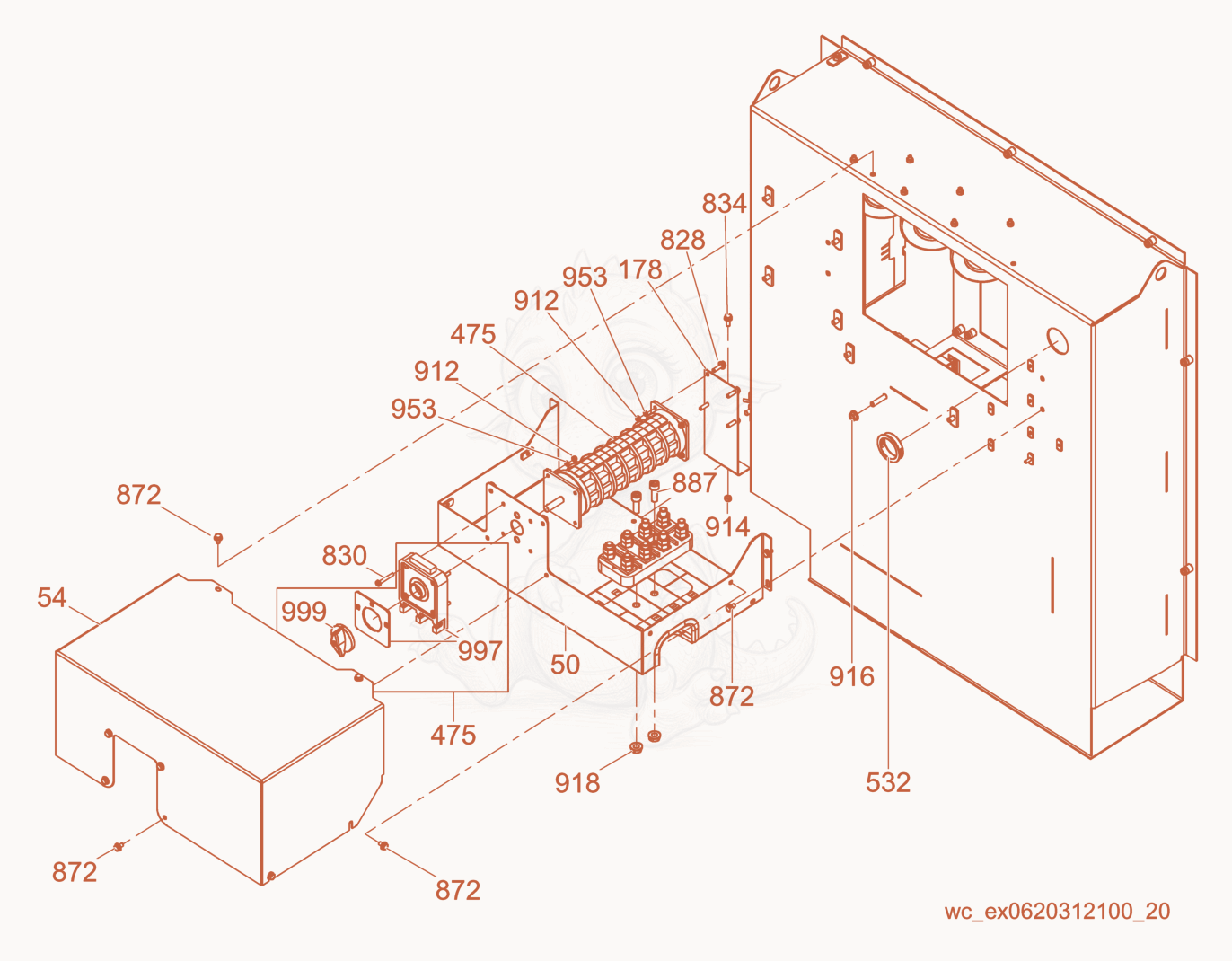

Despiece del Voltage Selector Switch Box de una máquina Wacker Neuson G120, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 505000173710
    $168.75
    PANEL-SS BOX BOTTOM,ML - 5000173710×1
  • 545000173709
    $158.26
    PANEL-SS BOX TOP,ML - 5000173709×1
  • 1785000173711
    $60.21
    BRACKET-SEL SWITCH REAR - 5000173711×1
  • 4755000153060
    $2,717.36
    SWITCH-PHASE,200 AMP - 5000153060×1
  • 5325000153092
    $0.73
    BUSHING 1-5/8 IN. I.D. - 5000153092×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×4
  • 8305000154518
    $0.14
    SCREW M5X35-4.8-H PAN HD ZP - 5000154518×4
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×1
  • 8725000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×14
  • 8875000011534
    $0.94
    SCREW M10 X 30 SOC.HD. - 5000011534×2
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 9535000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9975200002175
    $435.36
    Kit-face plate - ML - 5200002175×1
  • 9995000175231
    $66.53
    Handle - 5000175231×1
