G2.5A-GENERATOR

Despiece de Frame · G2.5A

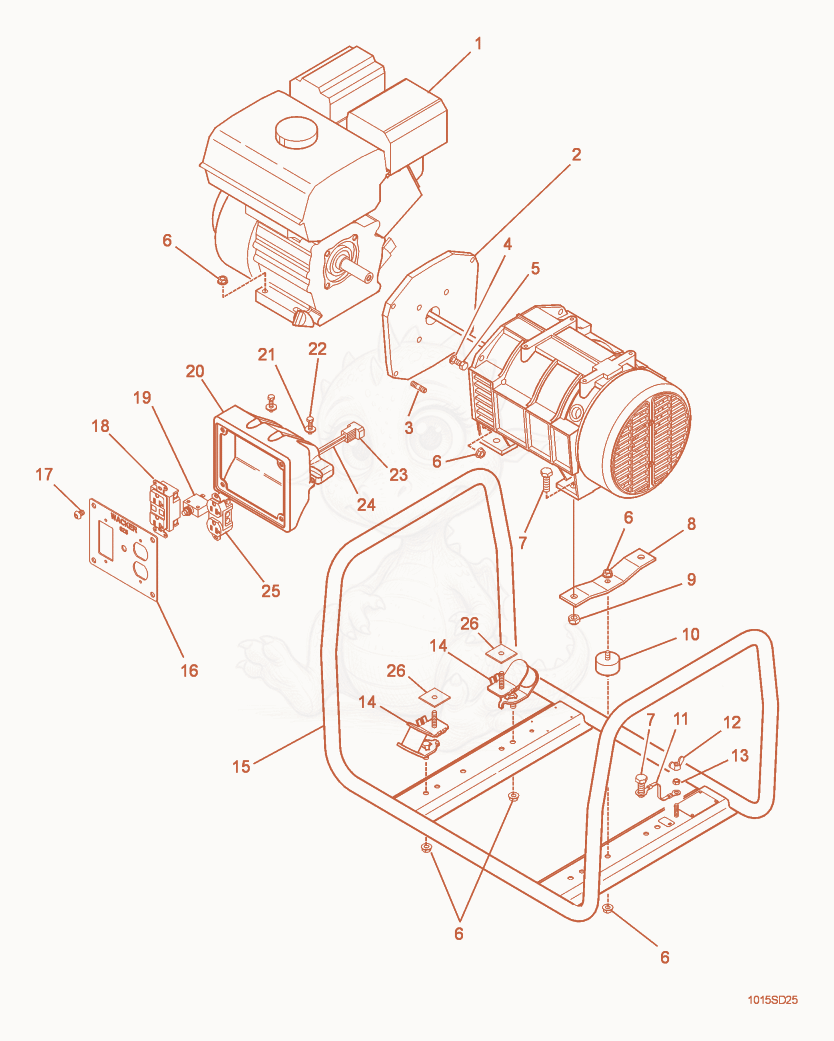

Despiece del Frame de una máquina Wacker Neuson G2.5A, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000085496
$1,186.94
ENGINE-HONDA,S-P 60HZ,5.5HP - 5000085496×1
25000087824
$49.65
ADAPTER-ENGINE,FLANGE A - 5000087824×1
35000089664
$5.88
STUD-M8 X 34 - 5000089664×4
45000025648
$0.29
WASHER-LOCK 5/16,MED - 5000025648×4
55000052203
$0.19
SCREW 5/16-24 X 7/8 GR5,HX.HD. - 5000052203×4
65000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×10
75000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×2
85000088152
$261.20
BRACKET-GENERATOR SUPPORT,SM - 5000088152×1
95000010365
$0.20
NUT-LOCK M10 HEX. - 5000010365×2
105000088535
$8.13
SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×1
115000088180
$2.31
WIRE-GROUND - 5000088180×1
125000010895
$0.58
NUT-WING M6,STAINLESS STEEL - 5000010895×1
135000010880
$0.03
NUT M6 8,HEX - 5000010880×1
145000087737
$20.33
X-5200003843 SHOCKMOUNT-ENGINE - 5000087737×2
155000087785
$237.06
FRAME-GENERATOR,SMALL - 5000087785×1
165000088201
$25.93
PANEL-CONTROL BOX,SMALL - 5000088201×1
175000085172
$0.52
SCREW M8 X 12,SOC BUTN - 5000085172×4
185000089849
$145.30
KIT-GFI RECEPTACLE - 5000089849×1
185000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×2
185000088174
$0.18
SCREW M4 X 12 - 5000088174×2
195000082946
$7.66
BREAKER-CIRCUIT 20A, 1 POLE - 5000082946×1
205000088200
$116.66
BOX-CONTROL,SMALL - 5000088200×1
215000010373
$0.03
WASHER B6.4 FLAT - 5000010373×2
225000011469
$0.09
SCREW M6 X 25 HX.HD. - 5000011469×2
235000112056
$0.48
HOUSING-CONNECTOR 2 POLE,PLG - 5000112056×1
235000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×2
245000088202
$45.64
NLA WIRING HARNESS-SMALL - 5000088202×1
255000082951
$10.49
RECEPTACLE-DUPLEX, 20A, 120V - 5000082951×1
255000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×2
255000088174
$0.18
SCREW M4 X 12 - 5000088174×2
265000089329
$10.59
BRACKET-SHOCKMOUNT SUPPORT,SM. - 5000089329×2
