GPi3200-GEN,INVERTER,NON-CARB

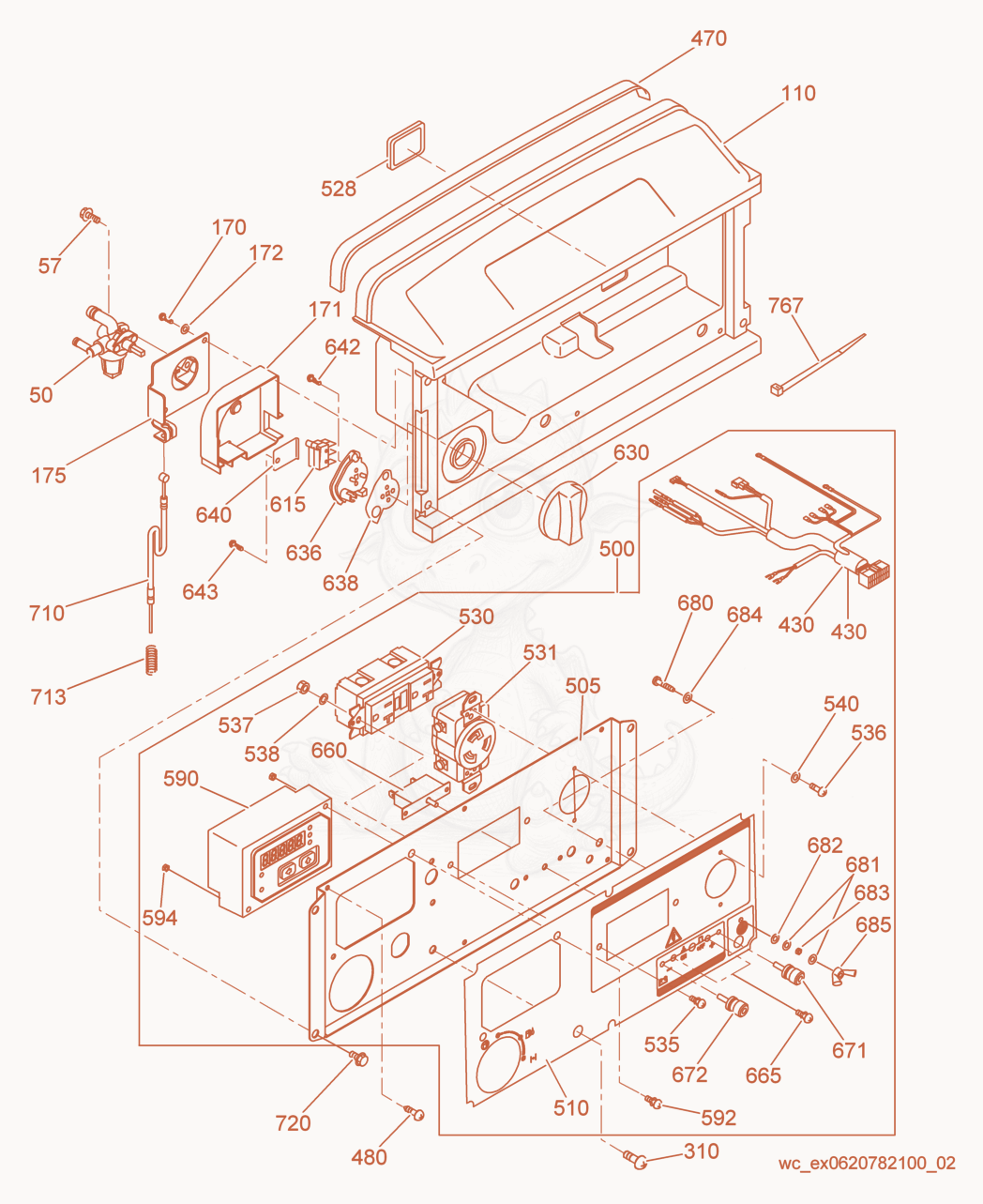

Despiece de Control Box/Front Panel cpl. · GPI3200
- BOX-CONTROL,CPL. - 5000180350×1
- Screw-self tapping - 5000180351×2
- Cover - 5000180352×1
- Washer - 5000180353×2
- Bracket - 5000180354×1
- Screw w/washer - 5000180355×2
- Wiring harness cpl. - 5000180356×1
- 4705000180357No la vendemosSeal×1
- SCREW-M4 X 10,SELF TAPPING - 5000180358×6
- PANEL-CONTROL,CPL. - 5000181751×1
- 5055000180427No la vendemosPanel, control box mounting×1
- PANEL-CONTROL - 5000180360×1
- GROMMET .360 ID,TAPER,RECT - 5000053603×1
- 5305000180361No la vendemosGFI Receptacle Kit×1
- RECEPTACLE-SOCKET,125V-30A - 5000180362×1
- Screw w/washer - 5000158645×2
- Screw - 5000180364×2
- Nut - 5000180365×2
- Washer - 5000180353×2
- WASHER-SPRING - 5000180367×2
- X-50000181967-MONITORING DEVICE - 5000180383×1
- SCREW-M4 X 40 W/WASHER - 5000180368×2
- NUT M4-STOP BUTTON MOUNT - 5000077578×2
- SWITCH-MICRO - 5000180369×2
- KNOB-CONTROL - 5000180370×1
- Choke - 5000180371×1
- X-5000180477 PLATE - 5000180372×1
- Bracket - 5000180373×1
- SCREW-M3 X 16,SELF TAPPING - 5000180374×2
- Screw-self tapping - 5000180351×1
- 6605000180375No la vendemosCircuit breaker, 10A, push button×1
- Screw - 5000180376×2
- Bolt - 5000180377×1
- Bolt - 5000180378×1
- Screw w/washer - 5000180379×1
- WASHER-SPRING - 5000180380×2
- Washer - 5000180381×1
- Nut - 5000180382×1
- WASHER-SPRING M5 - 5000180324×1
- NUT-WING - 5000180384×1
- WIRE-CHOKE - 5000180385×1
- SPRING-RETURN - 5000180386×1
- SCREW-M6 X 20 - 5000180387×4
- CLAMP-BAND - 5000180388×5
- Label - 5000181753×1
