GPS9700V Generator, EPA, w/Wheel Kit

Despiece de Frame/Engine · GPS9700

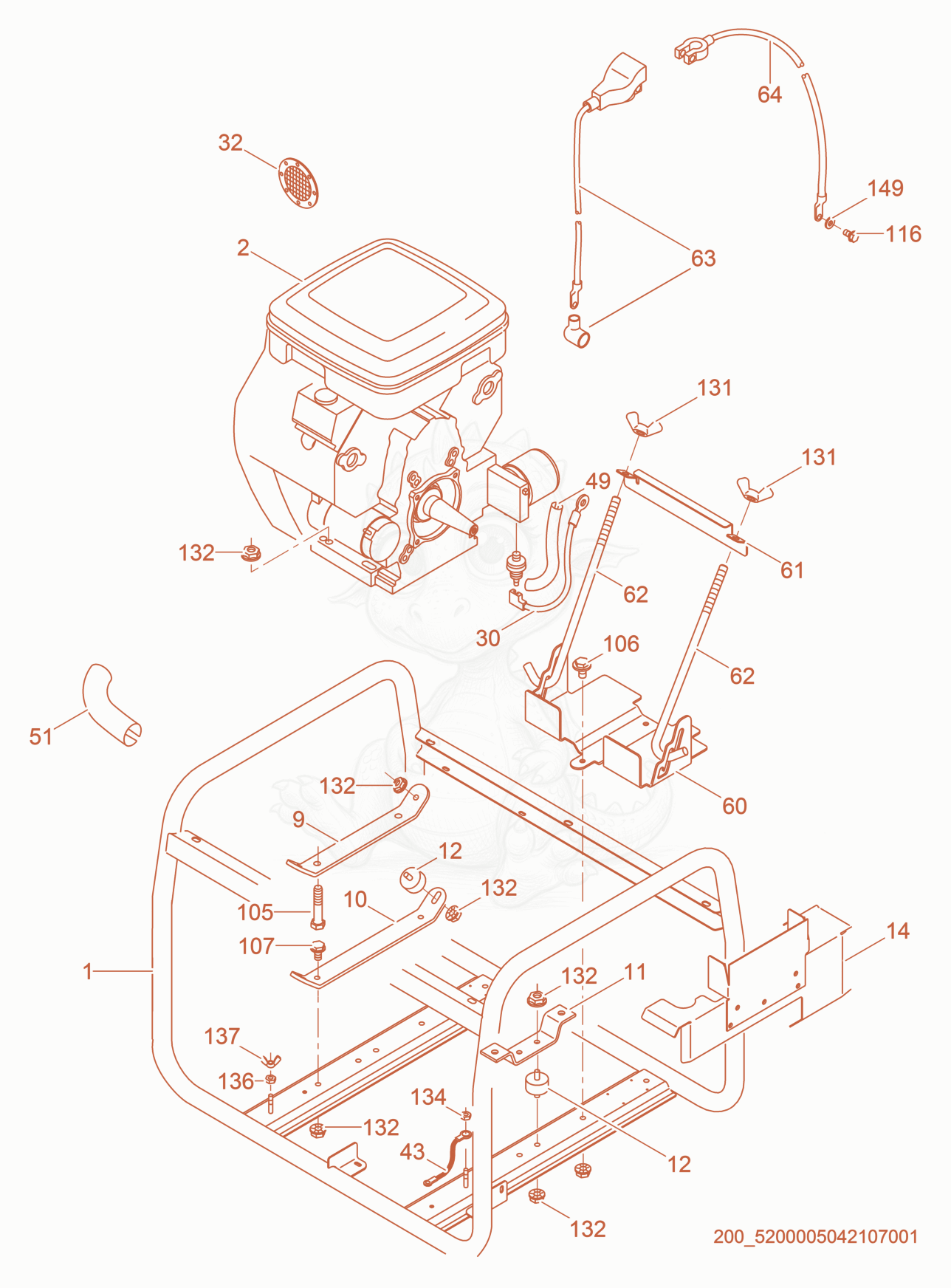

Despiece del Frame/Engine de una máquina Wacker Neuson GPS9700, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000110274
$503.83
FRAME-GP9700 P-5000112006 - 5000110274×1
25200000762
$3,048.34
X-5200023540 ENGINE-BRIGGS,18HP - 5200000762×1
95000110281
$35.45
BRACKET-SHOCKMOUNT,ENG. P-5000112006 - 5000110281×1
105000110282
$35.88
BRACKET-SHOCKMOUNT LOW P-5000112006 - 5000110282×1
115000110351
$36.00
BRACKET-GENERATOR P-5000112007 - 5000110351×1
125000088535
$8.13
SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×4
145000165378
$131.76
HEATSHIELD ASSEMBLY - 5000165378×1
305000110996
$6.60
WIRE-GROUND,LOW OIL SHUTDOWN - 5000110996×2
325000110952
$103.68
SPARK ARRESTOR - 5000110952×2
435000088180
$2.31
WIRE-GROUND - 5000088180×1
495000111444
$1.65
TUBE-SPLIT,.265 ID, 24 - 5000111444×1
515000111445
$1.68
TUBE-SPLIT,.76 ID,12 - 5000111445×1
605000110994
$144.84
HOLDER-BATTERY BOTTOM P-5000112006 - 5000110994×1
615000110995
$157.09
HOLDER-BATTERY TOP,PAINTED P-5000112006 - 5000110995×1
625000088177
$2.54
ROD-BATTERY HOLD DOWN - 5000088177×2
635000110295
$26.47
CABLE-BATTERY,POSITIVE - 5000110295×1
645000110296
$20.55
CABLE-BATTERY,NEGATIVE - 5000110296×1
1055000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×2
1065000079363
$0.36
SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×2
1075000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
1165000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×1
1315000025679
$0.25
NUT-WING 3/8-16 - 5000025679×2
1325000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×16
1345000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×1
1365000010880
$0.03
NUT M6 8,HEX - 5000010880×1
1375000010895
$0.58
NUT-WING M6,STAINLESS STEEL - 5000010895×1
1495000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
