GS5.7AI SCHUKO GENERATOR

Despiece de Control Panel · GS5.7AI

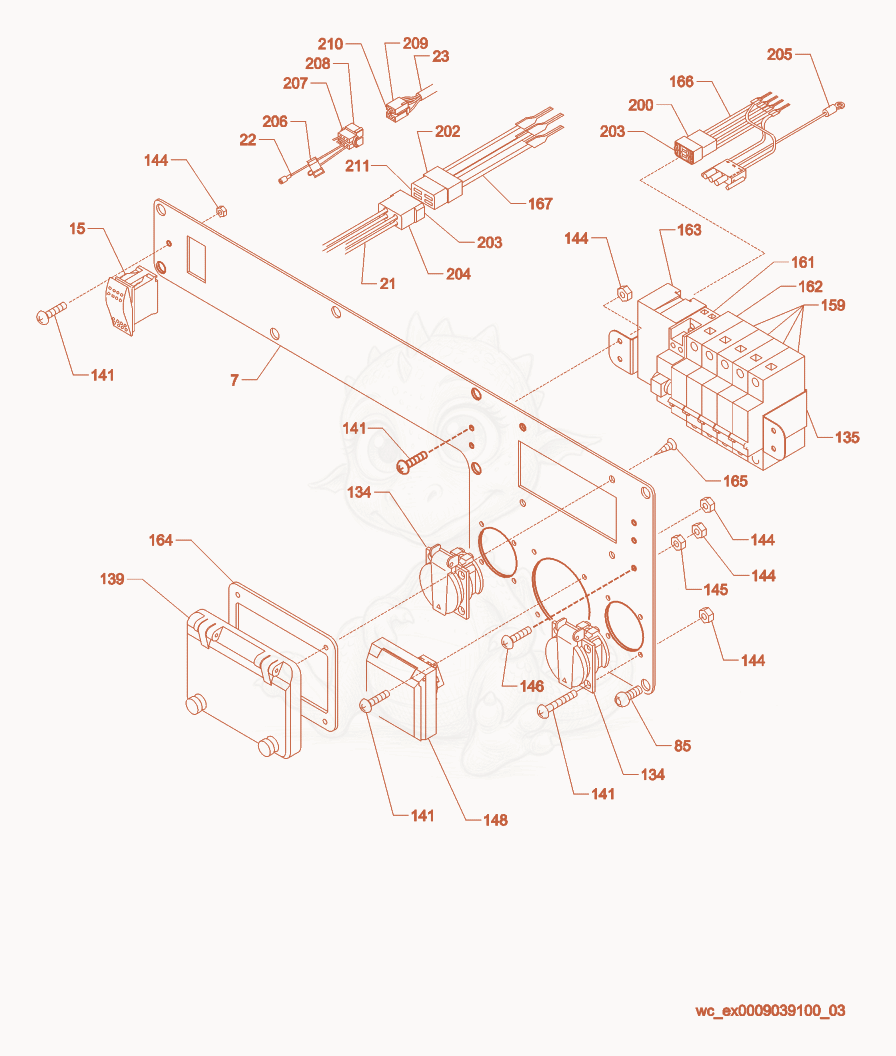

Despiece del Control Panel de una máquina Wacker Neuson GS5.7AI, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

75000117464No la vendemos
Control panel×1
155000087078
$15.93
SWITCH-ROCKER,DPDT - 5000087078×1
215000117462No la vendemos
Wiring harness×1
225000086159
$67.16
WIRING HARNESS-ELE.START - 5000086159×1
235000086156
$65.10
WIRING HARNESS-ENGINE - 5000086156×1
855000085172
$0.52
SCREW M8 X 12,SOC BUTN - 5000085172×9
1345000110358
$41.76
RECEPTACLE-SHKO,230V,16A,IP44 - 5000110358×2
1355000117469
$32.14
BRACKET-DIN RAIL 6 MODULE - 5000117469×1
1395000117472No la vendemos
Window×1
1415000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×15
1445000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×16
1455000010872
$0.01
NUT M4 8,HEX. - 5000010872×1
1465000110951
$0.03
SCREW M4 X 20 PHIL HD - 5000110951×1
1485000115701
$105.11
RECEPTACLE,5-PIN,400V,16A - 5000115701×1
1595000117468No la vendemos
Breaker×1
1615000117456No la vendemos
Switch×1
1625000117459
$81.51
RELAY-TRIP - 5000117459×1
1635000117470No la vendemos
Module×1
1645000117473No la vendemos
Spacer×1
1655000088174
$0.18
SCREW M4 X 12 - 5000088174×4
1665000117654No la vendemos
Wiring harness×1
1675000117655No la vendemos
Wiring harness×1
2005000111881
$3.36
HOUSING-CONNECTOR 6 POLE,PLUG - 5000111881×1
2025000112057
$1.42
HOUSING-CONNECTOR 4 POLE,RCPT - 5000112057×1
2035000083679
$0.45
TERMINAL-TAB 14-10 .250 - 5000083679×4
2045000112058
$6.50
HOUSING-CONNECTOR 4 POLE,PLG - 5000112058×1
2055000028304
$0.29
TERMINAL-RING 16-14 4.4 ID,INS - 5000028304×1
2065000077219
$0.54
FUSE 15AMP,BLADE TYPE - 5000077219×1
2075000089113
$1.05
HOUSING-PLUG,6 PIN - 5000089113×1
2085000089114
$0.66
PIN 20-14 GA .084 DIA. - 5000089114×5
2095000089115
$1.13
HOUSING-SOCKET,6 PIN - 5000089115×1
2105000089116
$0.81
SLEEVE 20-14 GA .084 DIA. - 5000089116×4
2115000087719No la vendemos
Receptacle terminal×4
