GV3800A VALUE GEN NON-CARB

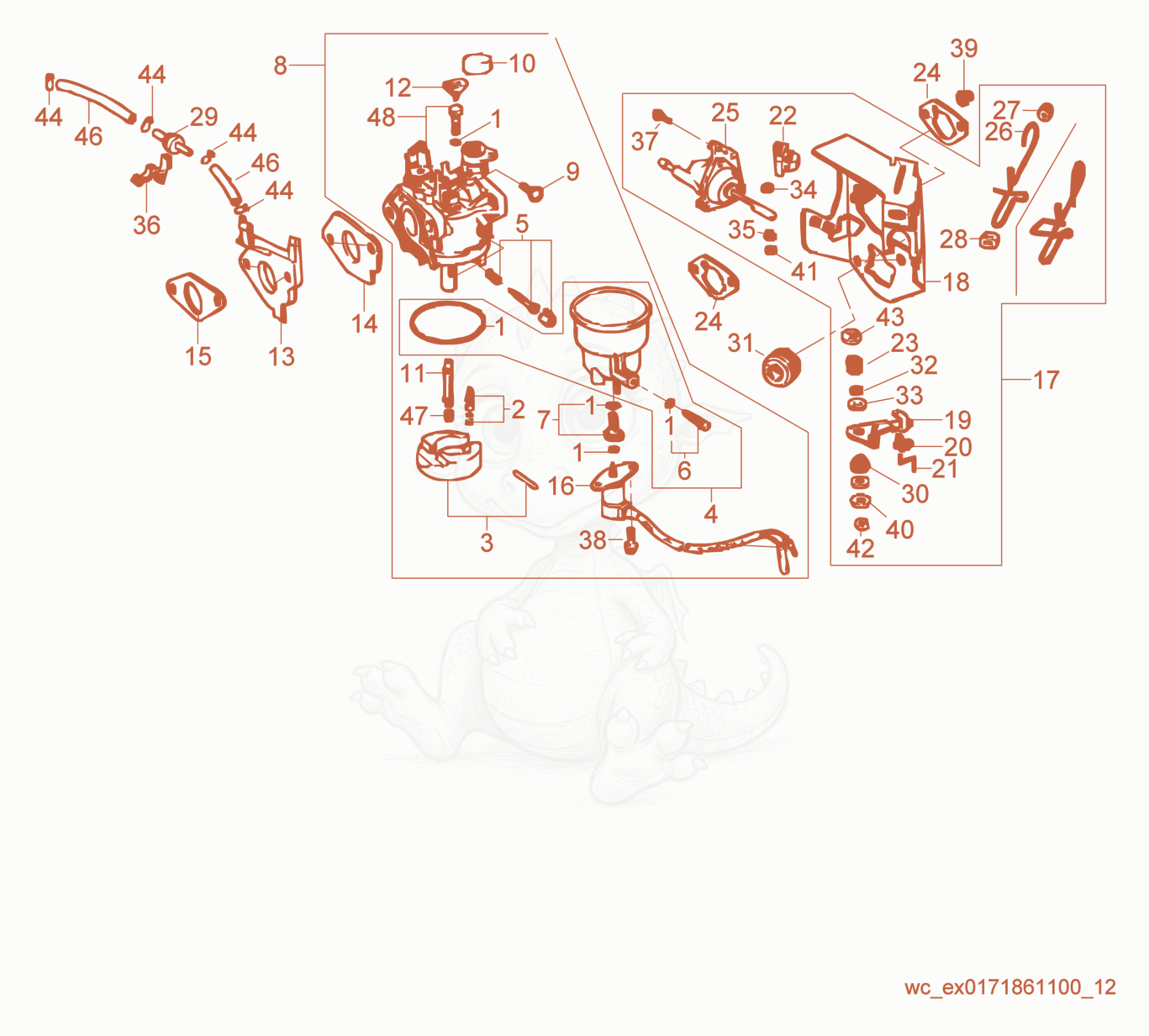

Despiece de Carburetor cpl. · GV3800A
- SET-CARBURETOR GASKETS - 5000162604×1
- SET-FLOAT VALVE - 5000074759×1
- SET-CARB.FLOAT - 5000074760×1
- FLOAT-CHAMBER SET - 5000158520×1
- SCREW-SET - 5000089286×1
- SCREW SET-DRAIN - 5000151786×1
- SCREW-SET - 5000162650×1
- Carburetor cpl. - 5000213347×1
- SCREW-THROTTLE STOP - 5000071018×1
- CAP-CHOKE LEVER DUST - 5000151790×1
- JET-NOZZLE - 5000074757×1
- SET-COLLAR - 5000089281×1
- INSULATOR-CARBURETOR - 5000158467×1
- GASKET-CARBURETOR - 5000081629×1
- INSULATOR-CARBURETOR - 5000081630×1
- VALVE-ASSEMBLY,SOLENOID - 5000158529×1
- BRACKET-CHOKE - 5000158468×1
- BRACKET-SOLENOID - 5000158469×1
- LEVER-CHOKE - 5000158470×1
- ROD-JOINT - 5000158471×1
- ROD-CHOKE - 5000158472×1
- BRACKET-CHOKE ROD STOP - 5000158473×1
- SPRING-MANUAL CHOKE - 5000158474×1
- GASKET-AIR CLEANER - 5000158475×2
- DIAPHRAGM-ASSEMBLY - 5000158476×1
- ROD-CHOKE CONTROL - 5000158477×1
- GROMMET-CHOKE ROD - 5000158478×1
- GUIDE-CHOKE ROD - 5000158479×1
- VALVE-CHECK,DASHPOT - 5000158480×1
- BUSHING-ARM PIVOT - 5000158481×1
- Grommet - 5000158482×1
- WASHER-CHOKE LEVER - 5000158483×1
- SEAL-CHOKE LEVER - 5000158484×2
- WASHER-THRUST - 5000158485×1
- SPACER-LEVER - 5000158486×1
- CLIP-WIRE HARNESS - 5000158530×1
- SCREW-PAN - 5000158487×2
- SCREW-WASHER (5X12) - 5000151801×2
- NUT M6,HEX,FLANGE - 5000071056×2
- WASHER-PLAIN - 5000158488×1
- CLIP-RETAINING,2MM - 5000158489×1
- CLIP-RETAINING,4MM - 5000158490×1
- CLIP-RETAINING,7MM - 5000158491×1
- CLIP-TUBE - 5000158492×4
- HOSE-SUCTION 3.5 X 130 - 5000162694×1
- JET-MAIN #75 - 5000162704×1
- 475000213399No la vendemosMain jet×1
- JET-MAIN - 5000213400×1
- JET-IDLE,SIZE 45 - 5000125843×1
