GV5600A VALUE GEN NON-CARB

Despiece de Cylinder · GV5600A

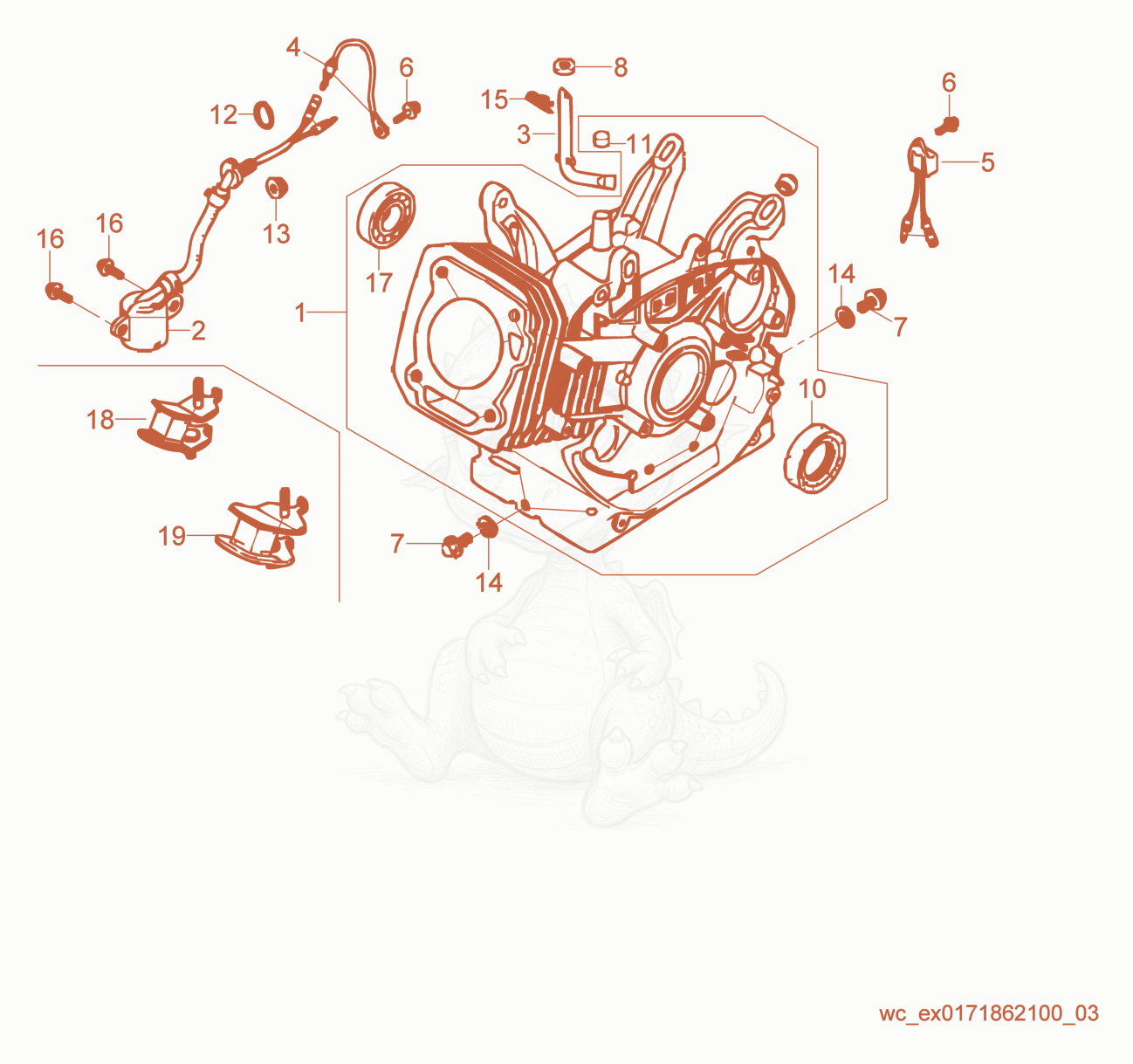

Despiece del Cylinder de una máquina Wacker Neuson GV5600A, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000213331
    $2,476.45
    Cylinder cpl. - 5000213331×1
  • 25000075790
    $75.23
    SWITCH-OIL ALERT,COMPLETE - 5000075790×1
  • 35000110114
    $18.96
    SHAFT-GOVERNOR - 5000110114×1
  • 45000213371
    $8.55
    Ground wire - 5000213371×1
  • 55000125834
    $59.60
    FILTER-ELECTRONIC (X-5100005313) - 5000125834×1
  • 65000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 75000053993
    $10.66
    PLUG M12,HEX.FLANGE - 5000053993×2
  • 85000074656
    $2.66
    Washer - 5000074656×1
  • 105000075792
    $13.09
    SEAL-SHAFT 35 X 52 X 8,4B - 5000075792×1
  • 115000076367
    $6.28
    SEAL - OIL - 5000076367×1
  • 115000157749
    $7.85
    X-5000076367 SEAL-OIL - 5000157749×1
  • 125000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 135000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 145000053994
    $1.84
    SEAL-RING 12MM - 5000053994×2
  • 155000110110
    $1.84
    PIN-COTTER 10MM - 5000110110×1
  • 165000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333×2
  • 175000074640
    $22.77
    BEARING-RADIAL BALL,6202 - 5000074640×1
  • 185000213377
    $50.66
    Shockmount-rubber - 5000213377×2
  • 195000213375
    $65.09
    Shockmount-rubber - 5000213375×2
