SCREED-TRUSS HP50,PWR,5',5HP

Despiece de Truss Screed Components · HP50

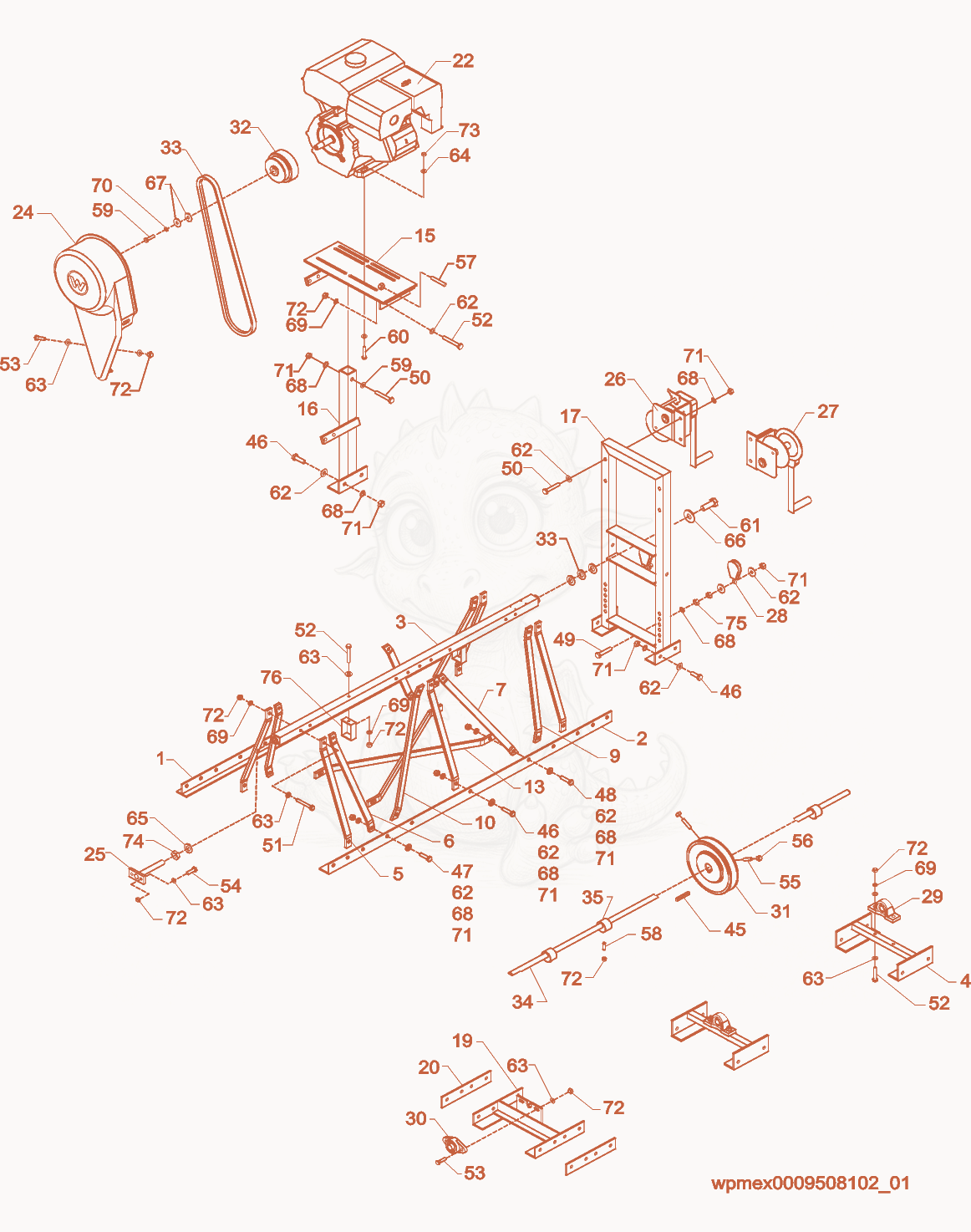

Despiece del Truss Screed Components de una máquina Wacker Neuson HP50, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000116479
    $423.15
    BLADE-T,5 FT. - 5000116479×1
  • 25000116480
    $423.15
    BLADE-L,5 FT. - 5000116480×1
  • 35000130203
    $333.99
    SUPPORT-FRAME,HP50/HPG50 - 5000130203×1
  • 45000116397
    $88.89
    ASM_Bracket-Bearing - 5000116397×2
  • 55000116413
    $37.65
    STRUT-STRAIGHT,19-3/8 - 5000116413×5
  • 65000116414
    $37.63
    STRUT-ANGLE,19-1/2 (L.H. SIDE) - 5000116414×2
  • 75000116415
    $41.12
    STRUT-ANGLE,22-3/8 (L.H.SIDE) - 5000116415×2
  • 95000117585
    $56.78
    STRUT-ANGLE,19-1/2(R.H.SIDE) - 5000117585×2
  • 105000117586
    $41.12
    STRUT-ANGLE,22-3/8 (R.H.SIDE) - 5000117586×2
  • 135000116390
    $380.30
    BRACE-CROSS,5 FT. - 5000116390×1
  • 155000130174
    $193.34
    MOUNT-ENGINE UPPER ASSY,HP100 - 5000130174×1
  • 165000130241
    $187.47
    ASM_Mount-Engine lower HP100 - 5000130241×1
  • 175000130192
    $579.60
    ASM_Frame-Handle - 5000130192×1
  • 195000116398
    $217.11
    ASM_Bracket-Connector - 5000116398×1
  • 205000116399
    $49.29
    PLATE-CONNECTOR - 5000116399×2
  • 215000117159
    $6.96
    Shim - 5000117159×1
  • 225100050606
    $1,627.29
    Engine Honda Gx160Uh2 Qwx2 5100050606×1
  • 245000401793
    $194.30
    SCREED BELTGUARD - 5000401793×1
  • 255000116407
    $21.37
    BOLT-T,COARSE THD. - 5000116407×1
  • 285000116409
    $69.88
    PULLEY-CABLE - 5000116409×2
  • 295000116402
    $62.74
    BEARING-PILLOW BLOCK,3/4 - 5000116402×2
  • 305000116403
    $38.47
    BEARING-CONNECTOR - 5000116403×1
  • 315000130440
    $77.94
    PULLEY-ENGINE SHEAVE - 5000130440×1
  • 325000116442
    $217.33
    Clutch - 5000116442×1
  • 335000116443
    $17.79
    DURAFLEX GL 5L-530 - 5000116443×1
  • 345000130444
    $91.26
    SHAFT-5 FT. W/SLOT - 5000130444×1
  • 355000116396
    $25.31
    WEIGHT-ECCENTRIC - 5000116396×3
  • 455000130441
    $13.24
    KEY--SCREED SHAFT - 5000130441×1
  • 465000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×19
  • 475000011300
    $0.93
    SCREW M12 X 45 HX.HD. - 5000011300×4
  • 485000088817
    $0.63
    SCREW M12 X 60 HX.HD. - 5000088817×6
  • 505000155256
    $1.74
    SCREW 1/2-13 X 3.00-5 HX HD ZN - 5000155256×5
  • 515000116453
    $1.09
    SCREW 3/8-16 X 3,HX.HD. - 5000116453×7
  • 525000116452
    $0.31
    SCREW 3/8-16 X 2-1/2,HX.HD. - 5000116452×8
  • 535000025555
    $0.20
    SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×4
  • 545000025556
    $0.58
    SCREW 3/8-16 X 1-1/2,HX.HD. - 5000025556×2
  • 555000130667
    $0.81
    SCREW-SOCKET SET M6 X 25 - 5000130667×2
  • 565000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 575000130669
    $6.12
    SCREW-SOCKET SET M10 X 60 - 5000130669×1
  • 585000130670
    $4.88
    SCREW-SOCKET SET 3/8 X 1-1/2 - 5000130670×3
  • 595000072017
    $0.65
    SCREW 5/16-24 X 1 HX,HD,CAP,GR5,A2K - 5000072017×1
  • 605000011306
    $1.00
    SCREW M12 X 75 HX.HD - 5000011306×4
  • 615000116451
    $10.99
    SCREW 3/4-16 X 2,HX.HD. - 5000116451×1
  • 625000010620
    $0.26
    WASHER B13 FLAT - 5000010620×45
  • 635000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×25
  • 645000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×8
  • 655000010616
    $2.02
    WASHER B21 FLAT - 5000010616×2
  • 665000116457
    $1.52
    WASHER 3/4-2 OD - 5000116457×1
  • 675000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×2
  • 685000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×34
  • 695000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×17
  • 705000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×1
  • 715000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×35
  • 725000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×21
  • 735000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 745000116449
    $0.47
    NUT-JAM,COARSE THD. - 5000116449×1
  • 755000010884
    $0.26
    NUT M12 8,HEX - 5000010884×4
  • 765000130187
    $69.09
    GUIDE-CABLE - 5000130187×2
