HSH3000

Despiece de Access Doors · HSH3000

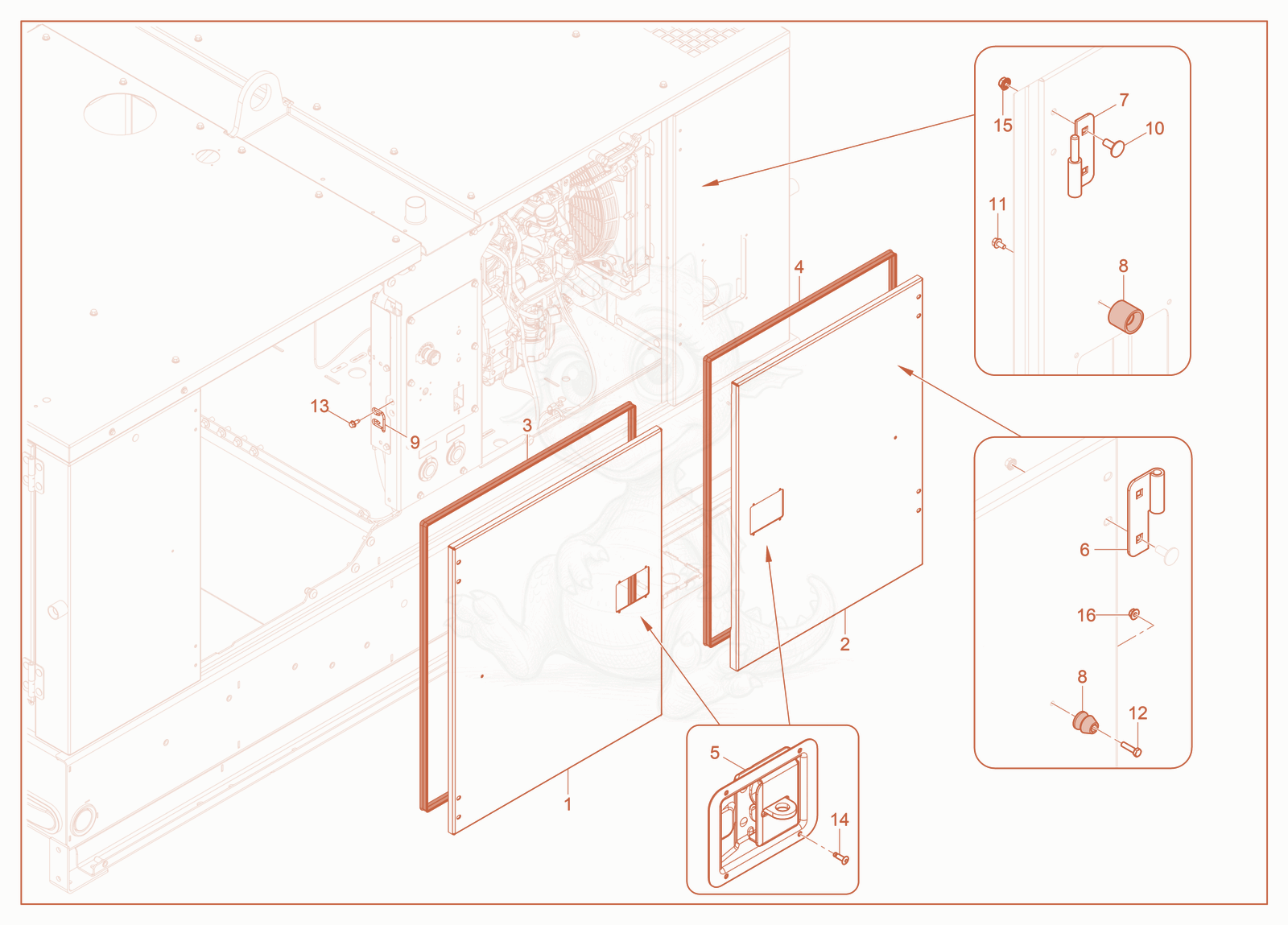

Despiece del Access Doors de una máquina Wacker Neuson HSH3000, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100082887No la vendemos
    DOOR REEL×1
  • 25100075992No la vendemos
    DOOR FRONT SIDE×1
  • 35100075969No la vendemos
    SEAL TRIM DOOR×1
  • 45100081483No la vendemos
    SEAL TRIM DOOR×1
  • 55200015873No la vendemos
    Latch×2
  • 65100058820
    $8.10
    HINGE-RH LEAF, BARREL, SS - 5100058820×2
  • 65100058821
    $8.10
    HINGE-LH LEAF, BARREL, SS - 5100058821×2
  • 75100058819
    $18.24
    HINGE-RH LEAF, PIN, SS - 5100058819×2
  • 75100058822
    $11.73
    HINGE-LH LEAF, PIN, SS - 5100058822×2
  • 85000111536
    $13.04
    LATCH-DOOR - 5000111536×4
  • 95000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×2
  • 105100058923
    $2.32
    BOLT-CARRIAGE.SHRT.NK-M8x20-8.8-MAG565 - 5100058923×16
  • 115000165358
    $0.52
    SCREW M6X12MM HX.HD,CLEAR ZINC - 5000165358×2
  • 125100062069
    $0.72
    SCREW-M6x25-HEX.HD-8.8-MAG565 - 5100062069×2
  • 135100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×4
  • 145000176346
    $0.14
    RIVET .156 X .415 LG.,SST - 5000176346×8
  • 155000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×16
  • 165000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
