Internal Vib. IREN 45/115

Despiece de Hose connection cpl. · IREN45/115

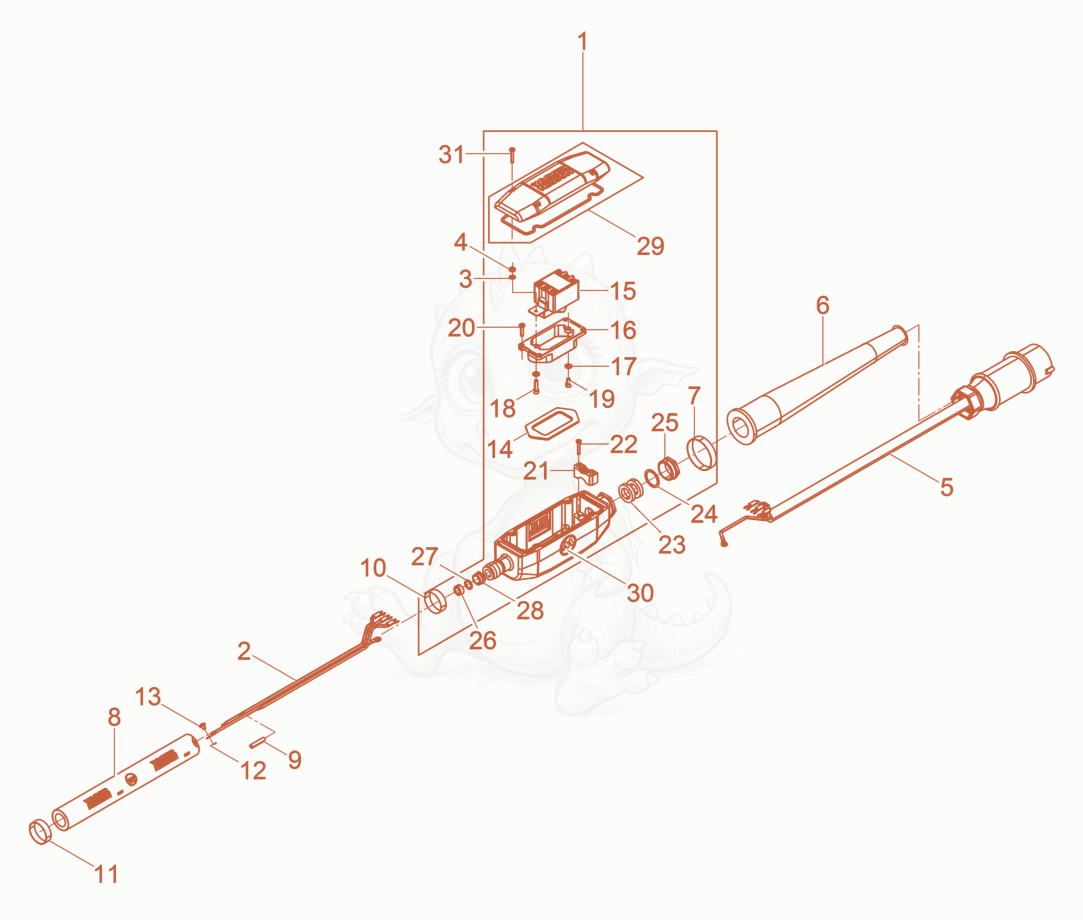

Despiece del Hose connection cpl. de una máquina Wacker Neuson IREN45/115, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15100001746No la vendemos
Switch Kit×1
25000218885No la vendemos
Supply line×1
35000200988
$0.40
WASHER-LOCK,TOOTHED - 5000200988×1
45000010872
$0.01
NUT M4 8,HEX. - 5000010872×1
55000063193No la vendemos
Power supply cable with plug×1
65003008468
$13.57
SLEEVE-CABLE REINFORCEMENT - 5003008468×1
75002007121
$3.14
Clamp - 5002007121×1
85000201911
$442.41
TUBE-INSULATING - 5000201911×1
95000202516
$1.35
TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
105002007010
$3.41
CLAMP 201/J204-32X1/2 ,BAND-IT - 5002007010×1
115000128141
$5.39
CLAMP - 5000128141×1
125000200988
$0.40
WASHER-LOCK,TOOTHED - 5000200988×1
135000218500
$0.13
Screw-Pan Head - 5000218500×1
145003010141
$7.93
Diaphragm - 5003010141×1
155002006994
$71.35
SWITCH 25A/380V/3P,ROCKER TYPE - 5002006994×1
165000067758
$16.71
Flange - 5000067758×1
175000010628
$0.02
WASHER A4.3 FLAT - 5000010628×2
185000011570
$0.20
SCREW M4 X 16 SOC.HD. - 5000011570×1
195100000130No la vendemos
Cheese head screw×1
205100001329
$0.22
Oval head screw - 5100001329×4
215000206365
$1.24
Clamp - 5000206365×1
225100001330
$0.79
Oval head screw - 5100001330×2
235002006208
$4.83
SEAL-RING 18 X 26 X 8,RUBBER - 5002006208×2
245002003772
$1.10
SEAL-RING 17 X 26 X 0.8,PG21 - 5002003772×1
255003008328
$5.71
CONNECTOR-BODY PG21 - 5003008328×1
265002003792
$0.48
SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
275002003795
$0.26
RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
285002003793
$1.33
CONNECTOR-BODY - 5002003793×1
295000124357No la vendemos
Switch box cover cpl.×1
305000222083
$6.74
LABEL-SYMBOL - 5000222083×2
315100001546
$0.22
Oval head screw - 5100001546×4
