MS52 RAMMER,11 PL SHOE (24MM) NR

Despiece de Engine cpl. · MS52

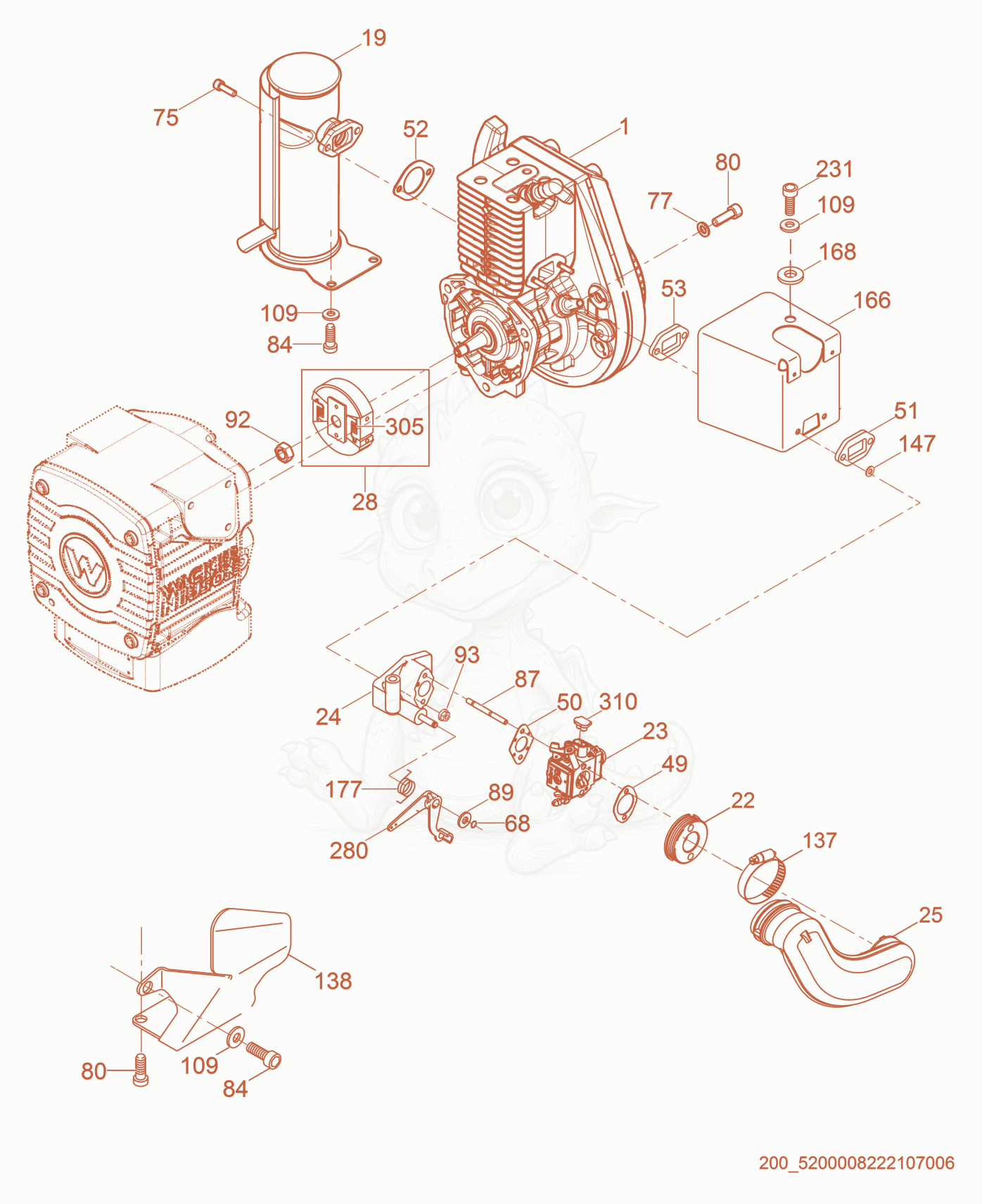

Despiece del Engine cpl. de una máquina Wacker Neuson MS52, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000176403
$1,154.36
ENGINE-MINI BLOCK,S/P - 5000176403×1
195000114770
$400.60
MUFFLER - 5000114770×1
225000163322
$31.23
FLANGE-CARBURETOR - 5000163322×1
235000175331
$239.66
CARBURETOR-WALBRO,HDA261A11.1MM - 5000175331×1
245000178321
$54.36
ADAPTOR-CARB,WM80 - 5000178321×1
255000156976
$13.85
TUBE-AIR,2 CYCLE - 5000156976×1
285000157205
$131.63
CLUTCH-CENTRIFUGAL,80mm X-5100032207 - 5000157205×1
495000084669
$0.67
GASKET-CARBURETOR X-5100032178×1
505000183153
$1.09
GASKET-CARBURETOR,RED X-5100032176×1
515200001772
$6.09
GASKET-CARB ADAPTER - 5200001772×1
525000012202
$1.73
GASKET-SILENCER - 5000012202×1
535000114575
$2.44
GASKET-HEATSHIELD SP=5100032172 - 5000114575×1
685002006160
$0.12
RET.RING-EXT 4MM,E TYP - 5002006160×1
755000112202
$0.28
SCREW M6X20 12.9,BLOX - 5000112202×2
775000172326
$1.88
WASHER 8.4,FLAT,200HV - 5000172326×3
805000011542
$0.37
SCREW M8 X 25 SOC.HD. - 5000011542×5
845000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×3
875000111522
$0.37
SCREW M5 X 60 SOC.HD. - 5000111522×2
895000058381
$0.13
WASHER-LOCK 6 FST - 5000058381×1
925000010883
$0.29
NUT M10 8,HEX - 5000010883×1
935000183750
$0.32
NUT-M5,HX FLG,CL 10,MECH ZP - 5000183750×2
1095000033198
$0.32
WASHER-LOCK B8 - 5000033198×4
1375000078844
$2.07
CLAMP,32/50 - 5000078844×1
1385000169981
$48.95
GUARD-CARBURETOR,PAINTED P-5000112007 - 5000169981×1
1475000103211
$0.13
WASHER-LOCK,5 - 5000103211×2
1665000173863
$31.77
Heatshield - 5000173863×1
1685001005118
$1.03
WASHER-STEEL,FLAT - 5001005118×1
1775000118383
$10.14
SPRING-THROTTLE RETURN - 5000118383×1
2315000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×1
2805000117863
$15.32
LEVER-THROTTLE CAM - 5000117863×1
3055000172983
$19.71
Spring - 5000172983×2
3105200007836
$1.34
Plug-Carburetor Adjustment - 5200007836×1
