PG3TA-PUMP,NON EPA DEWATERING

Despiece de Pump Components · PG3TA

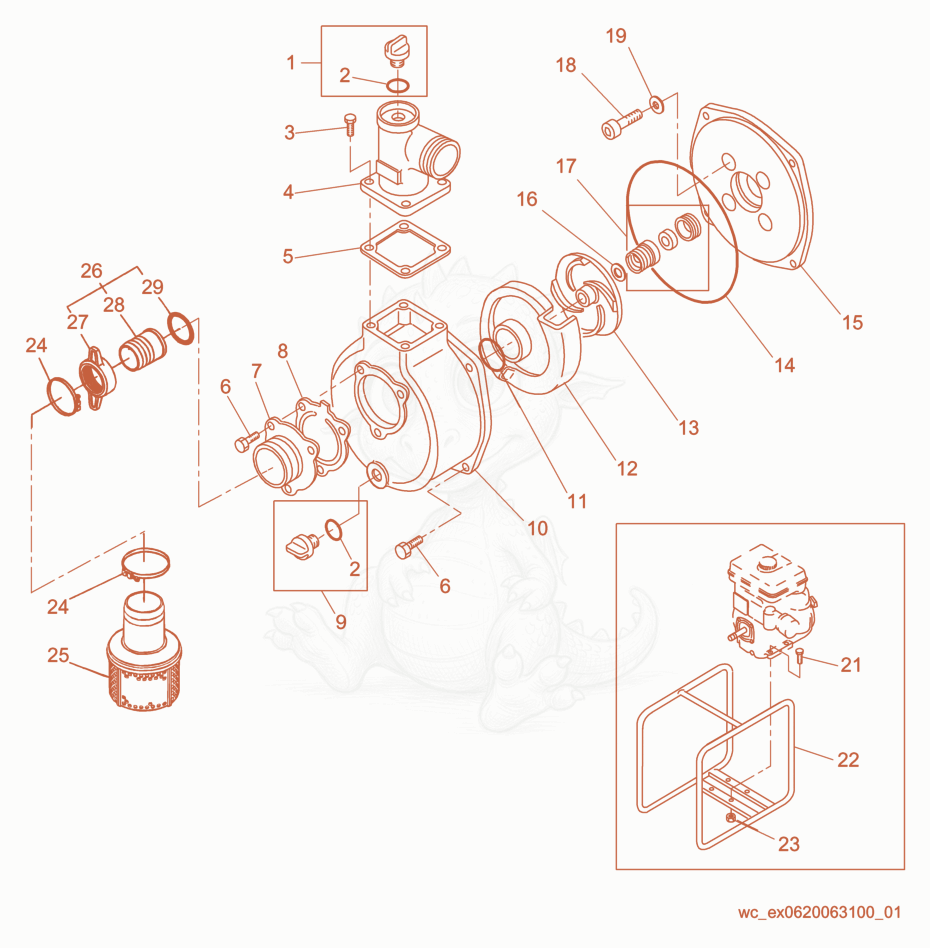

Despiece del Pump Components de una máquina Wacker Neuson PG3TA, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000162572No la vendemos
    Drain Plug Set×1
  • 25000070002
    $1.10
    O-RING 32 X 3 (P-32) - 5000070002×2
  • 35000070010
    $1.10
    SCREW M10 X 30,HX.HD. - 5000070010×4
  • 45000117946
    $36.74
    PORT-DISCHARGE,BSP THREAD 3 - 5000117946×1
  • 55000162574No la vendemos
    Delivery flange packing×1
  • 65000054966
    $1.10
    SCREW M10 X 25 W/LW,HX.HD. - 5000054966×7
  • 75000117948
    $23.96
    PORT-SUCTION,BSP THREAD 3 - 5000117948×1
  • 85000162576No la vendemos
    Flapper valve gasket×1
  • 95000162571No la vendemos
    Drain Plug Set×1
  • 105000162579No la vendemos
    Pump case housing×1
  • 115000110515
    $4.81
    O-ring - 5000110515×1
  • 125000162582
    $40.15
    Volute - 5000162582×1
  • 135000162584
    $54.32
    Impeller - 5000162584×1
  • 145000162586
    $3.85
    O-Ring - 5000162586×1
  • 155000162588No la vendemos
    Mounting flange×1
  • 165000162589
    $0.77
    Washer - 5000162589×3
  • 175000162592
    $25.00
    SEAL-MECHANICAL - 5000162592×1
  • 185000162593No la vendemos
    Screw×4
  • 195000072996
    $2.45
    WASHER-PLASTIC - 5000072996×4
  • 215000054968
    $0.88
    SCREW M8 X 40 W/LW,HX.HD. - 5000054968×4
  • 225000162599No la vendemos
    Frame×1
  • 235000070014
    $0.88
    NUT M8,HEX - 5000070014×4
  • 245000162600No la vendemos
    Clamp×3
  • 255000117980No la vendemos
    Suction strainer×1
  • 265000162603No la vendemos
    Coupler Kit×2
  • 275000163020
    $14.59
    Coupling - 5000163020×2
  • 285000163021
    $8.11
    COUPLING-HOSE,BARB - 5000163021×2
  • 295000163022
    $2.42
    Gasket - 5000163022×2
