PS3 2203 Sub. Pump, 440V/60hz, 3hp, 4.7A

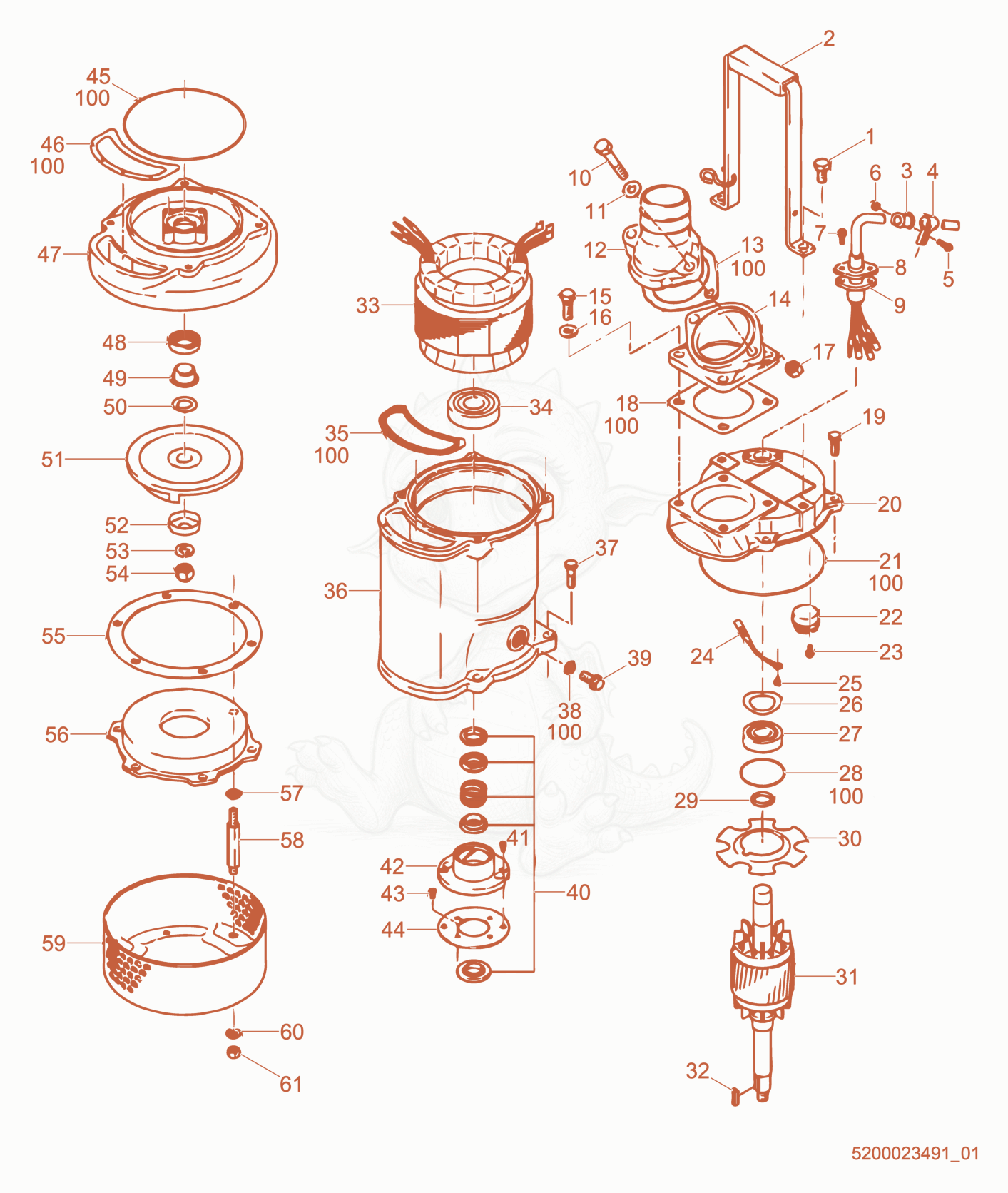

Despiece de Pump Components · PS32203

Despiece del Pump Components de una máquina Wacker Neuson PS32203, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15200023019No la vendemos
    Bolt×2
  • 25200023020No la vendemos
    Lifting handle×1
  • 35000150454
    $5.69
    sleeve - 5000150454×1
  • 45000150449
    $4.65
    CLIP-CABLE - 5000150449×1
  • 55000150713
    $0.65
    BOLT-M5 X 15 - 5000150713×1
  • 65000150743
    $0.65
    NUT-M5 - 5000150743×1
  • 75000150741
    $1.68
    BOLT-M5 X 15 - 5000150741×2
  • 85000150418
    $19.12
    cover - 5000150418×1
  • 95000150405
    $515.77
    CABLE-POWER w/GLAND 50' - 5000150405×1
  • 105000150731
    $5.05
    BOLT-M10 X 45 - 5000150731×4
  • 115000150761
    $0.65
    WASHER-PLAIN,M10 - 5000150761×4
  • 125200023024No la vendemos
    Hose coupling×1
  • 135200023030No la vendemos
    Gasket×1
  • 145200023029No la vendemos
    Attachment×1
  • 155200023021No la vendemos
    Bolt×2
  • 165000150761
    $0.65
    WASHER-PLAIN,M10 - 5000150761×2
  • 175000176969
    $2.45
    NUT-M12 - 5000176969×2
  • 185000150674
    $8.15
    GASKET - 5000150674×1
  • 195000162524
    $3.10
    BOLT W/WASHER - 5000162524×4
  • 205200023036No la vendemos
    Housing×1
  • 215000150698
    $7.76
    O-ring - 5000150698×1
  • 225000176963
    $325.30
    SWITCH-THERMAL, 400/440V 50/60Hz - 5000176963×1
  • 235000150783
    $0.90
    SCREW-M4 X 12 - 5000150783×2
  • 245000152410
    $20.33
    WIRE-GROUNDING - 5000152410×1
  • 255000150779
    $1.03
    SCREW-M4 X 6 - 5000150779×1
  • 265000150772
    $5.69
    WASHER-SPRING - 5000150772×1
  • 275200025249No la vendemos
    Ball bearing×1
  • 285000150704
    $12.94
    O-ring - 5000150704×1
  • 295000150622
    $33.45
    ring - 5000150622×1
  • 305000162526
    $20.96
    PLATE-PROTECTIVE - 5000162526×1
  • 315000150586
    $1,089.64
    ROTOR - 5000150586×1
  • 325100028179
    $27.37
    KEY-IMPELLER - 5100028179×1
  • 335000162523
    $1,792.14
    STATOR 400/440V-50/60Hz - 5000162523×1
  • 345000150559
    $42.03
    BEARING-BALL - 5000150559×1
  • 355000150690
    $15.14
    GASKET - 5000150690×1
  • 365100028210
    $912.37
    FRAME-MOTOR - 5100028210×1
  • 375000162524
    $3.10
    BOLT W/WASHER - 5000162524×4
  • 385000150676
    $1.68
    GASKET - 5000150676×1
  • 395000150536
    $7.12
    PLUG-OIL - 5000150536×1
  • 405000150503
    $540.52
    SEAL-MECHANICAL - 5000150503×1
  • 415000150776
    $0.52
    SCREW-M5 X 6 - 5000150776×2
  • 425000150518
    $9.44
    PLATE-OIL LIFTER - 5000150518×1
  • 435100028211
    $0.65
    SCREW-M5 X 6 - 5100028211×4
  • 445000150521
    $10.60
    PLATE-RETAINING - 5000150521×1
  • 455000150697
    $6.34
    O-ring - 5000150697×1
  • 465000150686
    $9.83
    GASKET - 5000150686×1
  • 475000150464
    $305.61
    VOLUTE - 5000150464×1
  • 485000150509
    $11.39
    SEAL-OIL - 5000150509×1
  • 495000150652
    $38.68
    sleeve - 5000150652×1
  • 505000150538
    $3.75
    shim - 5000150538×1
  • 515000150470
    $406.22
    IMPELLER-3in 2.2 50Hz - 5000150470×1
  • 525000150544
    $7.04
    COVER-THREAD - 5000150544×1
  • 535000150852
    $1.42
    WASHER-LOCK - 5000150852×1
  • 545000150754
    $9.44
    NUT-ACORN - 5000150754×1
  • 555000150668
    $3.49
    GASKET - 5000150668×1
  • 565000150488
    $147.88
    COVER-SUCTION 3in 1.5/2.2 - 5000150488×1
  • 575000150760
    $0.52
    WASHER-PLAIN,M8 - 5000150760×3
  • 585000150789
    $15.52
    BOLT-STUD - 5000150789×3
  • 595000150498
    $89.89
    STRAINER - 5000150498×1
  • 605000150760
    $0.52
    WASHER-PLAIN,M8 - 5000150760×3
  • 615000150746
    $0.62
    NUT, M8 - 5000150746×3
  • 1005100028212
    $74.89
    SET-GASKET & O-RING - 5100028212×1
