PSC4 2203-PUMP SUB,400V/50HZ

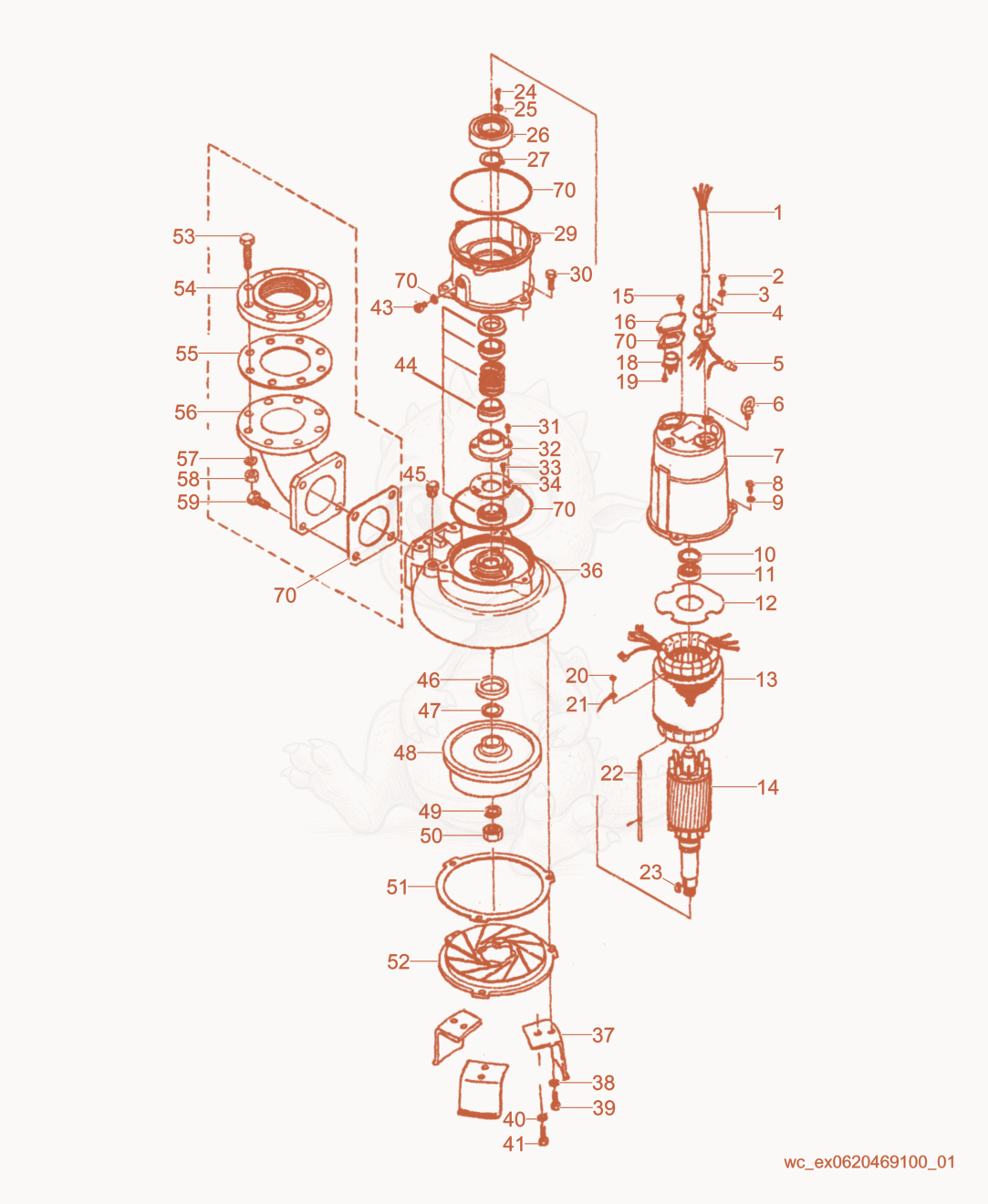

Despiece de Pump cpl. · PSC42203
- 5000127294No la vendemosElectrical plug×1
- CABLE-POWER - 5000177011×1
- BOLT-M5 X 20 - 5000176789×3
- WASHER-SEAL - 5000177057×1
- GLAND - 5000176857×1
- Terminal - 5000178376×4
- BOLT-LIFTING EYE,M10 - 5000176920×2
- FRAME-MOTOR - 5000176944×1
- BOLT-M8 X 25 - 5000150719×3
- WASHER-LOCK,M8 - 5000150763×3
- WASHER-SPRING - 5000150768×1
- BEARING-BALL - 5000176774×1
- WIRE-LEAD - 5000176916×1
- STATOR-380/400/415V-50HZ - 5000178346×1
- ROTOR-W/SHAFT - 5000177050×1
- BOLT-M8 X 18 - 5000176790×2
- RETAINER-PROTECTOR - 5000177043×1
- 185000176961No la vendemosMotor protection switch×1
- Screw - 5000150773×2
- WASHER-M4 - 5000178384×2
- NUT-M6 - 5000150744×1
- Terminal - 5000178377×1
- STOPPER - 5000178356×1
- KEY-7 X 7 X 22 - 5000176902×1
- SCREW-PHMS,M6 X 10 - 5000177003×3
- WASHER-BEARING - 5000176778×3
- BEARING-BALL - 5000150560×1
- RING-LOCKING - 5000150797×1
- HOUSING-BEARING - 5000176782×1
- BOLT-M12 X 35 - 5000176796×3
- SCREW-M5 X 6 - 5000150776×2
- LIFTER-OIL - 5000176979×1
- screw - 5000150775×3
- Retainer - 5000177036×1
- CASING-PUMP - 5000177028×1
- STAND-PUMP - 5000177033×3
- WASHER-LOCK - 5000150852×3
- BOLT-M12 X 35 - 5000176796×3
- BOLT-M8 X 20 W/WASHER - 5000176802×3
- PLUG-OIL - 5000150885×1
- SEAL-MECHANICAL - 5000176929×1
- VALVE-AIR RELEASE - 5000176769×1
- SEAL-OIL - 5000176985×1
- shim - 5000150540×1
- impeller - 5000176896×1
- WASHER-SPRING,M20 - 5000177071×1
- NUT-M20 - 5000176972×1
- GASKET - 5000176842×1
- COVER-SUCTION - 5000178368×1
- BOLT-M16 X 70 - 5000176806×8
- FLANGE-4 BSPT - 5000176820×1
- GASKET - 5000176829×1
- NLA-PIPE-DISCHARGE - 5000176823×1
- WASHER-SPRING,M16 - 5000177073×8
- NUT-M16 - 5000176970×8
- BOLT-M16 X 35 - 5000176805×4
- SET-GASKET & O-RING - 5000176851×1
