PST3 750 Sub. Pump, 220V/60hz, 1hp, 33' Cord, 4.7A

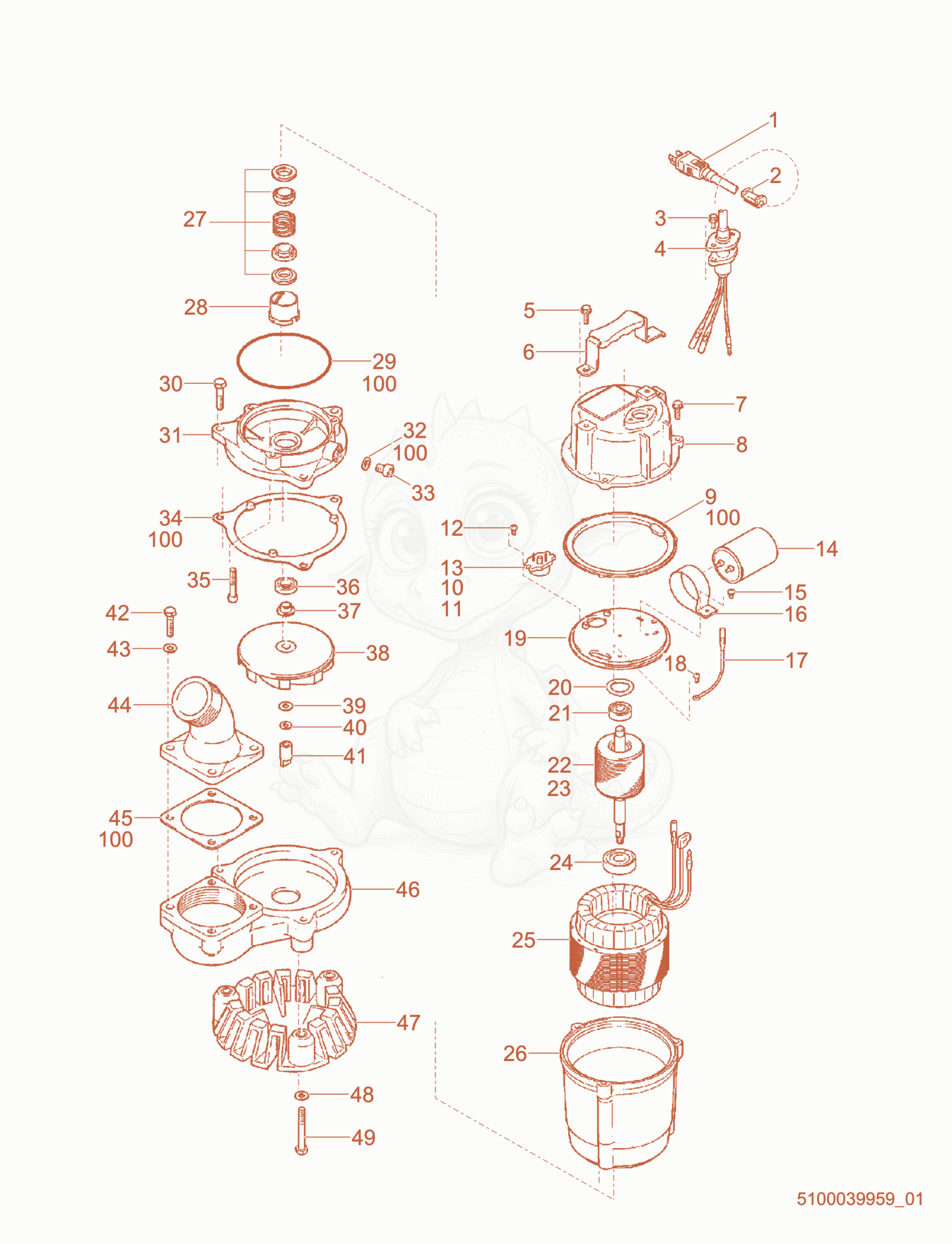

Despiece de Pump Components · PST3750
- CABLE-POWER - 5000177014×1
- sleeve - 5000150455×1
- BOLT-M5 X 15 - 5000150741×2
- cover - 5000150418×1
- BOLT-M6 X 15 - 5000150715×2
- handle-lifting - 5000150638×1
- BOLT - 5000157363×3
- 85200012382No la vendemosHousing×1
- 95200012383No la vendemosGasket×1
- 105200012386No la vendemosWire-blue×1
- 115200012387No la vendemosWire-red×1
- 125200012384No la vendemosScrew×2
- 135200012413No la vendemosMotor protection switch×1
- 145200012388No la vendemosCapacitor×1
- SCREW-PHMS,M4 X 8 - 5000177006×1
- 165200012414No la vendemosRetainer×1
- 175200012390No la vendemosGround wire×1
- SCREW-M4 X 4 - 5000150777×1
- 195200012391No la vendemosBracket×1
- WASHER-SPRING - 5000150766×1
- BEARING-BALL - 5000150555×1
- 225200012392No la vendemosRotor cpl.×1
- COLLAR-BEARING - 5000150623×1
- BEARING-BALL - 5000150563×1
- 255200012394No la vendemosStator cpl.×1
- 265200012395No la vendemosMotor housing×1
- SEAL-MECHANICAL - 5000150505×1
- LIFTER-OIL - 5000157378×1
- O-ring - 5000150694×1
- BOLT-M8 X 30 - 5000176791×3
- CASING-OIL - 5000176978×1
- Gasket - 5000176838×1
- PLUG-OIL - 5000150535×1
- GASKET - 5000150676×1
- SCREW-HEX,SOCKET - 5000150733×3
- SEAL-DUST - 5000150708×1
- sleeve - 5000150650×1
- IMPELLER 50Hz - 5000176888×4
- WASHER-PLAIN,M8 - 5000150759×4
- WASHER-LOCK,M8 - 5000150763×1
- NUT-STIRRER - 5000150501×1
- BOLT-M10 X 30 - 5000176794×4
- WASHER-PLAIN,M10 - 5000150761×4
- COUPLING-HOSE,3" BARB - 5000152373×1
- COUPLING-HOSE,3 NPT - 5000176881×3
- GASKET - 5000150674×1
- CASING-PUMP - 5000177026×1
- STAND-STRAINER - 5000178357×1
- WASHER-PLAIN,M8 - 5000150760×1
- BOLT-M8 X 35 - 5000150721×3
- 1005200021968No la vendemosGasket & O-Ring Set×1
