PT3 Pump

Despiece de Muffler/Intake/Exhaust Valves · PT3

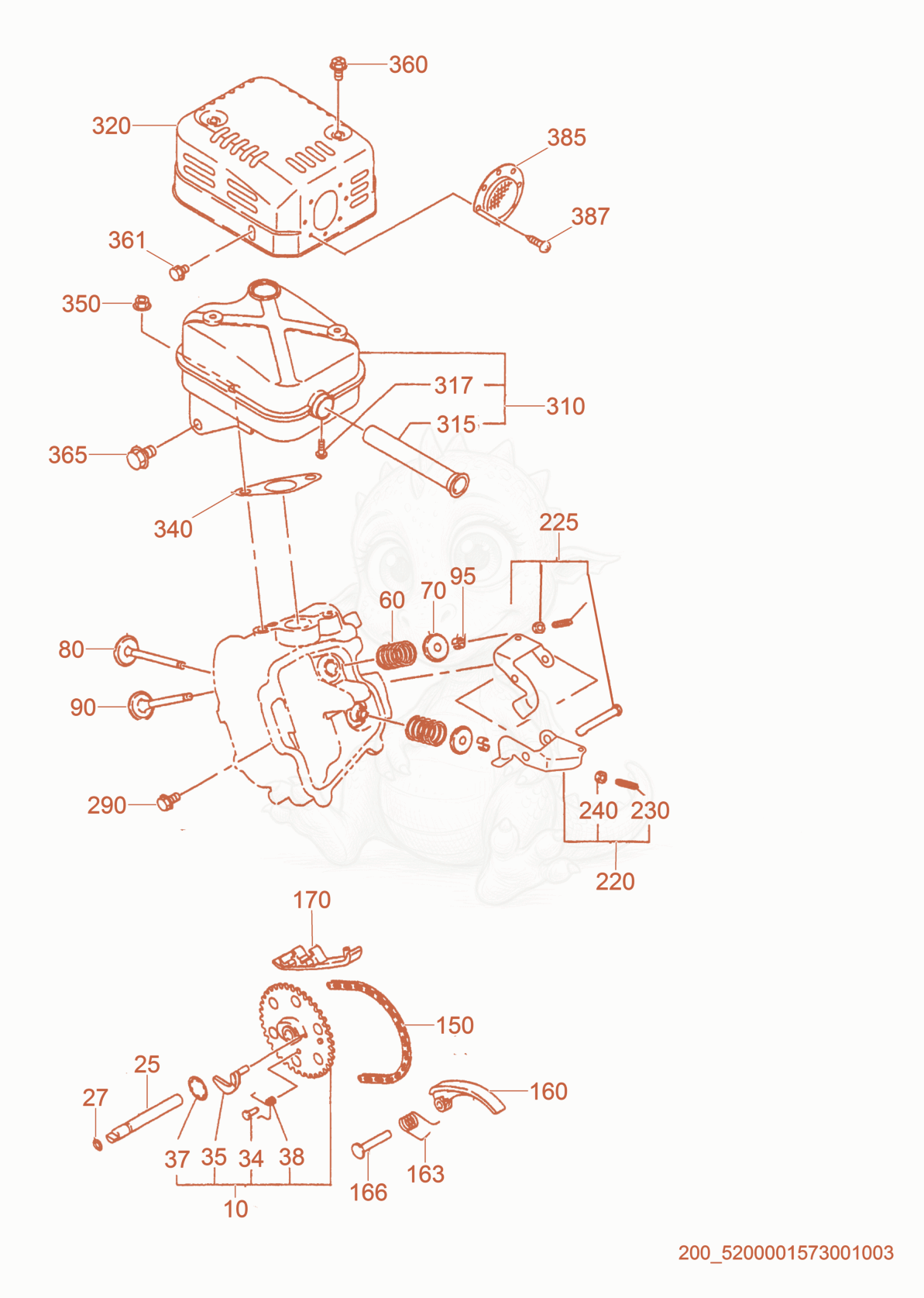

Despiece del Muffler/Intake/Exhaust Valves de una máquina Wacker Neuson PT3, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 105200013308No la vendemos
    Camshaft cpl.×1
  • 255000156471
    $10.62
    PIN-CAMSHAFT - 5000156471×1
  • 275200001094
    $2.58
    O-RING - 5200001094×1
  • 345000156473
    $2.37
    PIN-SPRING - 5000156473×1
  • 355200013309No la vendemos
    Lever×1
  • 375000156475
    $3.75
    CLIP - 5000156475×1
  • 385200013310No la vendemos
    Spring-return×1
  • 605000156477
    $9.26
    SPRING-VALVE - 5000156477×2
  • 705000156478
    $7.30
    RETAINER-SPRING,VALVE - 5000156478×2
  • 805000210078
    $30.28
    Valve-inlet - 5000210078×1
  • 905000210079
    $48.79
    Valve-exhaust - 5000210079×1
  • 955000156481
    $2.60
    HOLDER-VALVE - 5000156481×4
  • 1505200013311No la vendemos
    Timing chain×1
  • 1605000156483
    $20.43
    CRANK - 5000156483×1
  • 1635000156484
    $3.76
    SPRING-TENSION - 5000156484×1
  • 1665000156485
    $9.03
    PIN-TENSIONER - 5000156485×1
  • 1705000156486
    $5.38
    GUIDE-CHAIN - 5000156486×1
  • 2005200001097
    $3.13
    PIN-ROCKER - 5200001097×1
  • 2025000156106
    $0.55
    CLIP - 5000156106×1
  • 2205000205128
    $65.40
    ROCKER ARM-INLET - 5000205128×1
  • 2255000205129
    $60.25
    ROCKER ARM-EXHAUST - 5000205129×1
  • 2305000205130
    $3.76
    SCREW-ADJUSTMENT - 5000205130×1
  • 2405000205131
    $2.11
    nut - 5000205131×1
  • 2415000205131
    $2.11
    nut - 5000205131×1
  • 2905000156587
    $259.11
    MUFFLER COMPLETE - 5000156587×1
  • 3105000156587
    $259.11
    MUFFLER COMPLETE - 5000156587×1
  • 3155000156588
    $108.00
    SPARK ARRESTER COMPLETE - 5000156588×1
  • 3175000156494
    $0.35
    SCREW-SELF TAPPING - 5000156494×1
  • 3205200013312No la vendemos
    Muffler cover×1
  • 3405000203771
    $3.37
    GASKET-MUFFLER - 5000203771×1
  • 3505000075270
    $1.85
    NUT-FLANGE - 5000075270×2
  • 3605000117241
    $1.51
    BOLT-TAPPING - 5000117241×2
  • 3615000156645
    $2.46
    BOLT-FLANGE - 5000156645×1
  • 3655000205305
    $1.43
    screw - 5000205305×1
  • 3855000156591
    $17.13
    SCREEN COMPLETE - 5000156591×1
  • 3875000156494
    $0.35
    SCREW-SELF TAPPING - 5000156494×2
  • 5405000210082
    $18.35
    HOLDER-DISTANCE - 5000210082×1
  • 5505000210083
    $2.07
    Gasket - 5000210083×1
  • 5605000210084
    $1.45
    Gasket - 5000210084×1
  • 5705000053616
    $1.72
    NUT M6,HEX,FLANGE - 5000053616×2
  • 5805000205309
    $2.60
    screw - 5000205309×1
  • 8505000210085
    $4.71
    HOSE-VENT - 5000210085×1
