PT3H Pump

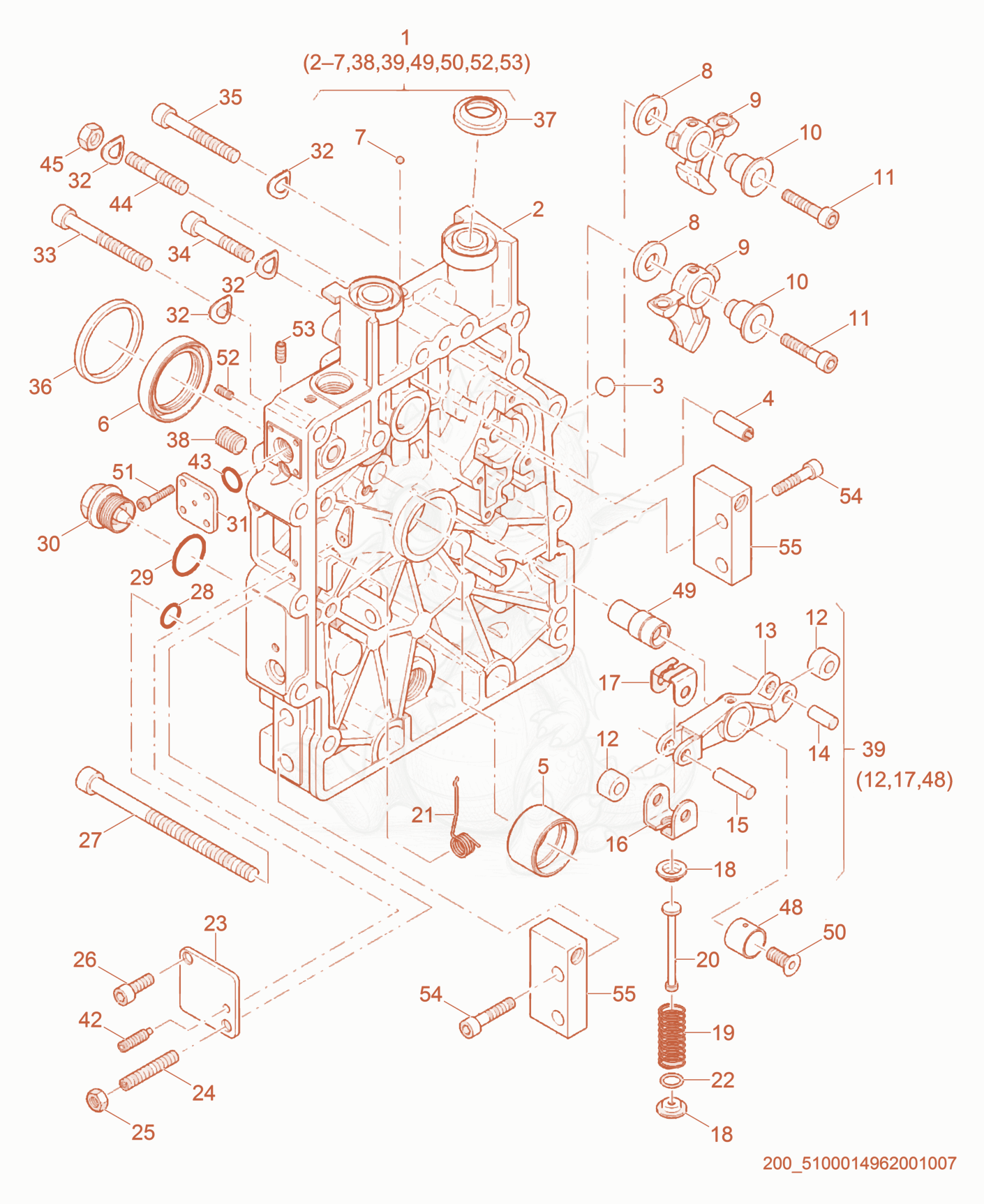

Despiece de Timing Cover · PT3H
- 15200007455No la vendemosTiming cover×1
- HOUSING-BOLT,GOVERNOR - 5000151356×1
- BEARING-MAIN - 5000108763Se desconoce×1
- 55200007456No la vendemosMain bearing×1
- SEAL-OIL 30X47X8 - 5000151359×1
- Washer - 5000104365×2
- CAM-FOLLOWER - 5000108755×2
- SHAFT-SPINDLE,CAM FOLLOWER - 5000094936×2
- SCREW-ALLEN M6X25 10.9 - 5000151361×2
- CUP - 5000108760×2
- SPRING-PRESSURE - 5000108762×1
- ROD-DRAW - 5000108761×1
- SPRING-GOVERNOR - 5000108764×1
- DISC 10.7X19X0.5 - 5000151366×1
- Cover - 5000108766×1
- SCREW-GRUB M6X30 22H - 5000151368×1
- NUT-HEX M6 8 A3C - 5000151323×1
- SCREW-ALLEN M6X12 8 A3C - 5000151370×1
- SCREW-ALLEN M8X130 8.8 - 5000151371×2
- WASHER A8X14-CU - 5000107556×2
- SEAL-OIL - 5000202416×1
- PLUG-OIL 22X1.5 - 5000202314×1
- PLATE - 5000151372×1
- WASHER-LOCK A8 - 5000013601×13
- SCREW-ALLEN M8X60 - 5000126979×1
- SCREW-ALLEN M8X45 - 5000151375×2
- SCREW-ALLEN M8X50 - 5000151376×9
- INSERT-CENTERING - 5000151377×1
- RING-SEAL,COVER,TIMING - 5000108770×2
- ROD-THREADED,M8X10-45H-A3C-KL - 5000202302×5
- LEVER-ROCKER - 5100016528×1
- SCREW-GRUB M4X20,TUF. - 5000108765×1
- O-Ring - 5000094934×1
- STUD M8X50 8.8 A3C - 5000151332×1
- NUT M8 8 A3C - 5000151379×1
- Lever - 5000151383×1
- SCREW M6X35,8.8 A3C - 5000108929×1
- SCREW M4X10 8.8 A3C - 5000151341×4
- SCREW-SET M5X10 TUF360G - 5000151342×2
- PIN M6X10,THREADED - 5000107715×1
