RC110

Despiece de hydraulic oil tank · RC110

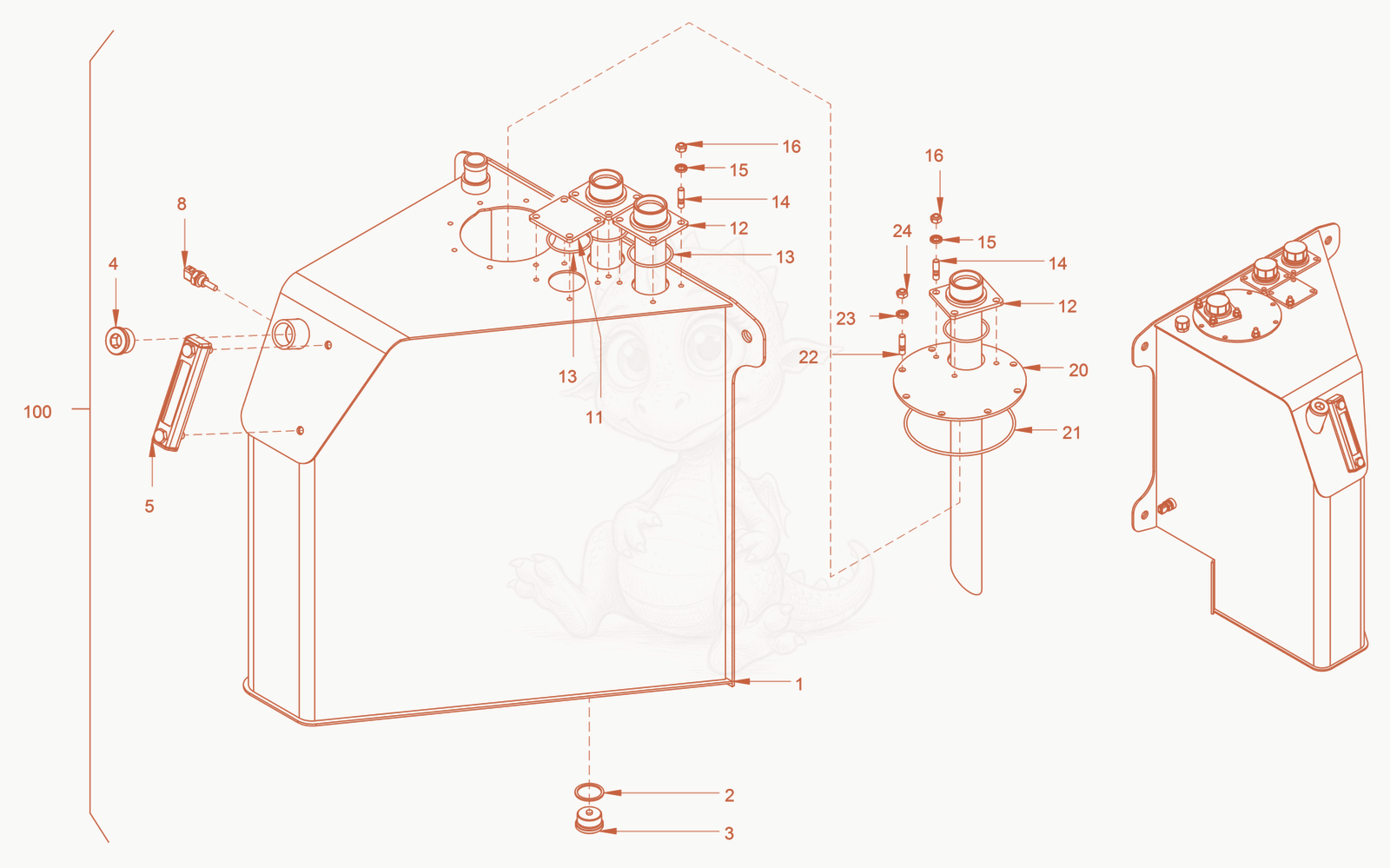

Despiece del hydraulic oil tank de una máquina Wacker Neuson RC110, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100035223
    $4,038.51
    hydraulic oil tank - 5100035223×1
  • 25100022869
    $2.88
    sealing ring - 5100022869×1
  • 35100023027
    $87.30
    locking screw - 5100023027×1
  • 45100023170
    $28.68
    locking screw - 5100023170×1
  • 55100013435
    $114.84
    Oil level indicator - 5100013435×1
  • 85100023402
    $95.57
    temperature switch - 5100023402×1
  • 115100035224
    $55.67
    lid - 5100035224×1
  • 125100035225No la vendemos
    suction pipe×3
  • 135100035226No la vendemos
    o-ring seal×3
  • 145100011471
    $4.72
    Stud bolt - 5100011471×15
  • 155100012966
    $1.57
    Locking washer - 5100012966×15
  • 165100012546
    $1.57
    Hexagon nut - 5100012546×15
  • 205100035227No la vendemos
    lid×1
  • 215100023263
    $6.37
    o-ring seal - 5100023263×1
  • 225100011471
    $4.72
    Stud bolt - 5100011471×8
  • 235100012966
    $1.57
    Locking washer - 5100012966×8
  • 245100012546
    $1.57
    Hexagon nut - 5100012546×8
  • 1005100035214
    $6,833.83
    hydraulic oil tank - 5100035214×1
