Compactor RC110p US CAB

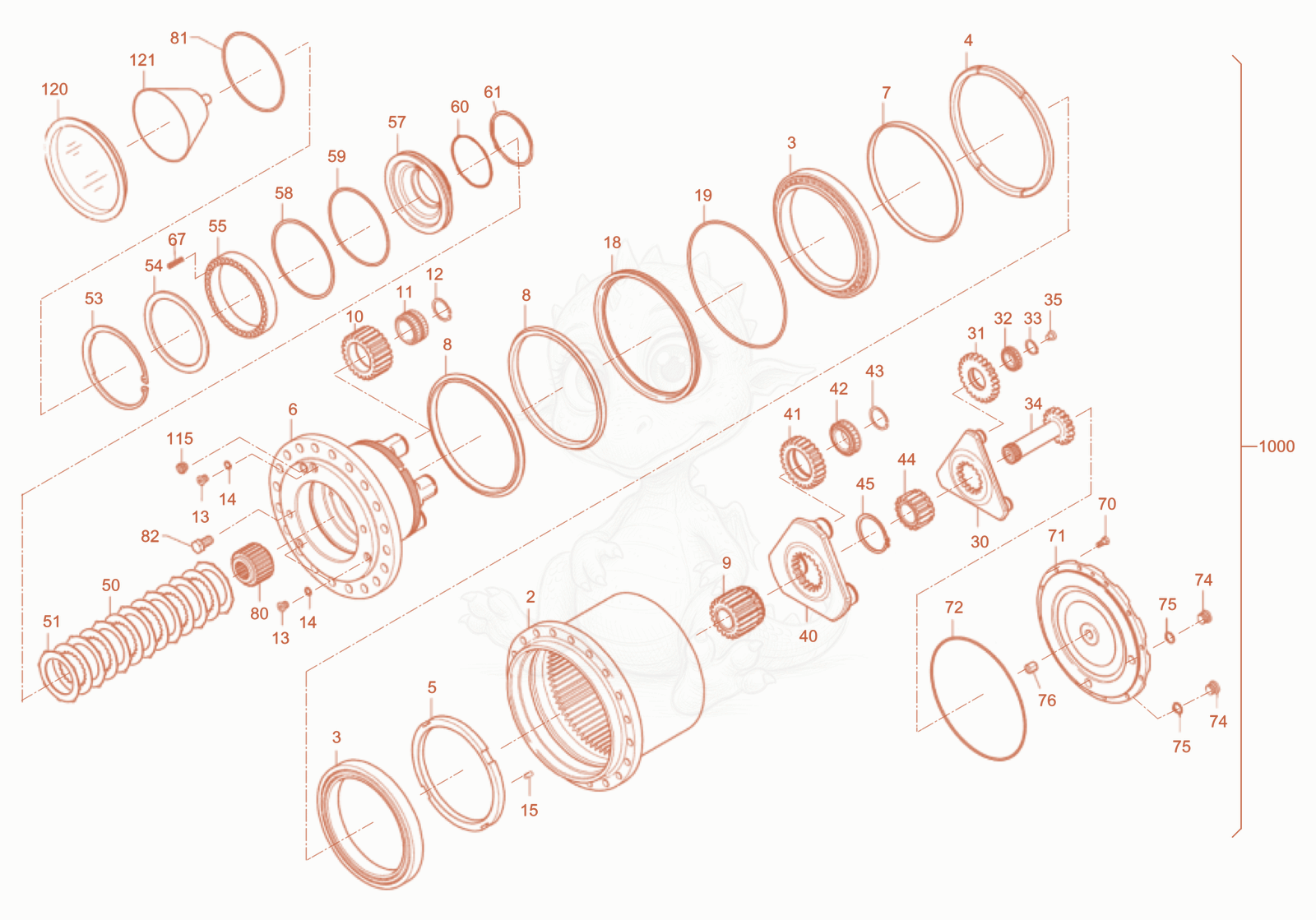

Despiece de wheel gear · RC110PUSCAB
- 25100063987No la vendemoshollow wheel×1
- 35100063988No la vendemostaper roller bearing×2
- 45100063990No la vendemosring×1
- 55100063994No la vendemosshaft nut×1
- 65100063997No la vendemosaxle×1
- 75100063999No la vendemosintermediate ring×1
- 85100064003No la vendemosaxial face seal×1
- 95100064005No la vendemosplanetary wheel×1
- 105100064007No la vendemosplanetary wheel×5
- 115100063918No la vendemoscylindrical roller bearing×5
- Locking ring - 5100012949×5
- locking screw - 5100035140×3
- sealing ring - 5100035141×3
- 155100064009No la vendemosstraight pin×2
- 185100064011No la vendemossealing ring×1
- o-ring seal - 5100035144×1
- 305100064014No la vendemosplanet carrier×1
- 315100064016No la vendemosplanetary wheel×3
- 325100064020No la vendemoscylindrical roller bearing×3
- 335100063927No la vendemoscirclip×3
- 345100064022No la vendemossun wheel×1
- 355100063933No la vendemosbolt×3
- 405100064026No la vendemosplanet carrier×1
- 415100064029No la vendemosplanetary wheel×3
- 425100064031No la vendemoscylindrical roller bearing×3
- Locking ring - 5100012949×3
- 445100064033No la vendemosplanetary wheel×1
- 455100064035No la vendemoscirclip×1
- 505100063935No la vendemosbrake disc internal×6
- 515100063937No la vendemosbrake disc internal×7
- circlip - 5100035150×1
- 545100063943No la vendemoswasher×1
- intermediate ring - 5100035152×1
- 575100063945No la vendemospiston×1
- 585100063947No la vendemossupporting ring×1
- 595100063950No la vendemoso-ring seal×1
- 605100063952No la vendemoso-ring seal×1
- 615100063956No la vendemossupporting ring×1
- 675100063958No la vendemoscompression spring×38
- 705100063960No la vendemoshexagon screw×12
- 715100063962No la vendemoslid×1
- 725100063965No la vendemoso-ring seal×1
- 745100063969No la vendemoslocking screw×2
- sealing ring - 5100035149×2
- 765100063971No la vendemoscylindrical roller×1
- 805100064037No la vendemosdriver×1
- o-ring seal - 5100035124×1
- 825100063976No la vendemoshexagon screw×2
- filler cap - 5100035125×1
- 1205100063980No la vendemosprotective cap×1
- 1215100063982No la vendemoshousing×1
- 10005100064039No la vendemoswheel gear×1
