Rebar Cutter RCP-12/230 50 Hz

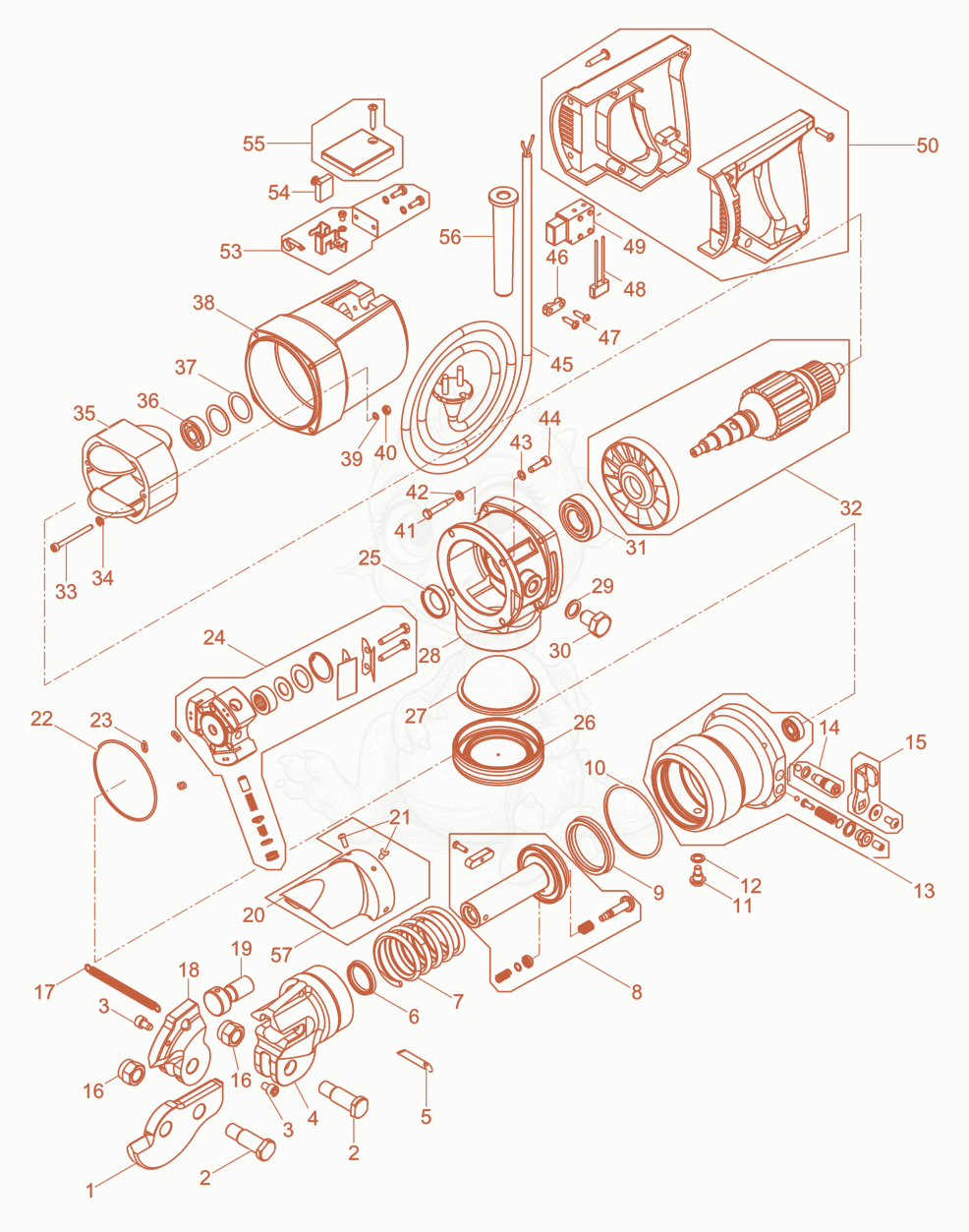

Despiece de Reinforcement Cutting Equipment · RCP-12/23050HZ
- BLADE-CUTTING - 5000216889×1
- Bolt - 5000216878×2
- SCREW-CHEESE HD. - 5000216849×2
- Cutter head - 5000216908×1
- Straight pin - 5000227707×1
- Gasket - 5000216938×1
- SPRING-COMPRESSION - 5000216860×1
- Piston cpl. - 5000216969×1
- Gasket - 5000216940×1
- O-Ring - 5000216932×1
- Screw - 5000216880×1
- WASHER-COPPER - 5000217048×1
- Cylinder assembly cpl. - 5000217081×1
- pressure relief - 5000217002×1
- Lever cpl. - 5000217003×1
- NUT-LOCK - 5000216845×2
- mainspring 4l14c1 - 5000216859×1
- BLADE-CUTTING - 5000216877×1
- Pin - 5000216879×1
- Protection RCP 12 - 5100000029×1
- set of screws RCP 12 - 5100000031×1
- O-Ring - 5000216922×1
- O-Ring - 5000216917×3
- kit-pump - 5000217009×1
- SEAL-OIL - 5000217014×1
- CAP-FUEL TANK - 5000216872×1
- Diaphragm - 5000216873×1
- HOUSING-PUMP - 5000216871×1
- RING-SEAL - 5000217033×1
- PLUG-SCREW - 5000217008×1
- BEARING-BALL - 5000217013×1
- 325000217079No la vendemosRotor cpl.×1
- SCREW-CHEESE HD. - 5000217047×2
- WASHER-LOCK,TOOTHED - 5000217034×2
- 355000216963No la vendemosStator×1
- BEARING-BALL - 5000217012×1
- RING-COMPENSATING - 5000217032×2
- HOUSING-MOTOR - 5000216949×1
- WASHER-LOCK - 5000216912×2
- O-Ring - 5000216943×2
- SCREW-CAP,HEX HD. - 5000217036×4
- Washer - 5000217031×4
- WASHER-LOCK - 5000217035×4
- SCREW-CHEESE HD. - 5000217028×4
- 455000216955No la vendemosPower supply cable with plug 230V×1
- Strain relief - 5000216918×1
- Screw - 5000217018×2
- FILTER-INTERFERENCE - 5000216953×1
- SWITCH-PRESS - 5000216958×1
- HANDLE COMPLETE - 5000217005×1
- HOLDER-BRUSH - 5000217000×2
- BRUSH-CARBON - 5000216914×2
- Cover cpl. - 5000217001×2
- BUSHING-CABLE - 5000216919×1
- Protection cpl. RCP 12 - 5100000025×1
