RD10 ROLLER,DOUBLE DRUM

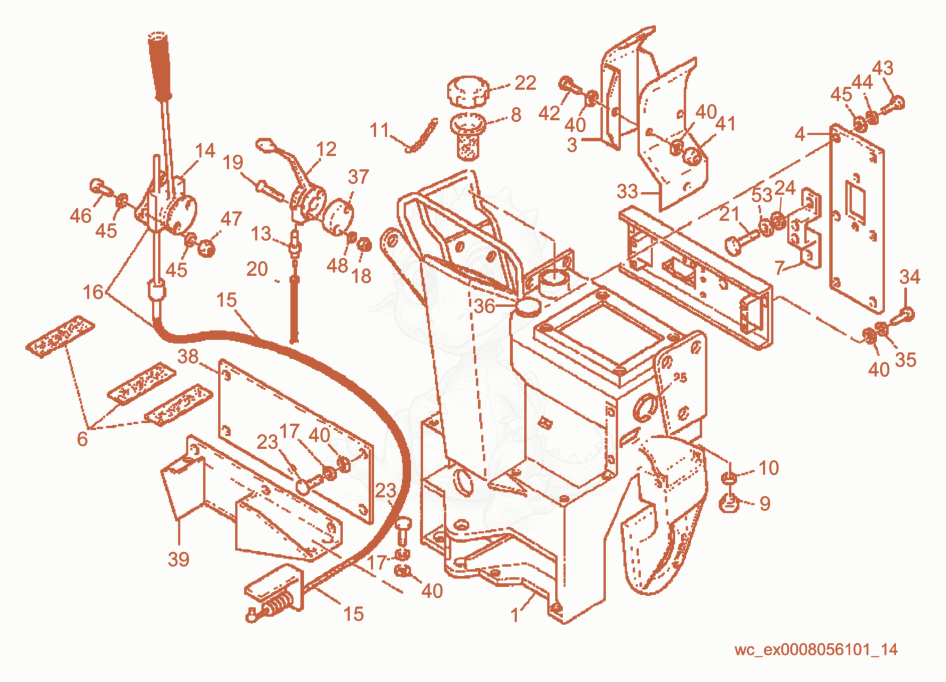

Despiece de Controls cpl. · RD10
- CHANNEL-CROSS BAR - 5000113382×1
- NLA GUARD - 5000113422×1
- NLA GUARD - 5000113423×1
- GUARD-STRIP - 5000115542×3
- Bracket - 5000113410×1
- FILTER-WATER - 5000112582×1
- PLUG - 5000112899×1
- WASHER-COPPER - 5000112840×1
- NLA CHAIN-WATER TANK - 5000114444×1
- LEVER-THROTTLE - 5000113395×1
- Fitting-adjust - 5000112634×1
- CABLE-CONTROL - 5000119207×1
- Cable - 5000112629×1
- CABLE-CONTROL ASSEMBLY - 5000119205×1
- Washer - 5000112819×9
- NUT-LOCK - 5000112805×2
- BOLT - 5000113247×2
- Cable - 5000112632×1
- BOLT - 5000113229×2
- CAP-WATER TANK - 5000114443×1
- BOLT - 5000112766×9
- NLA WASHER - 5000113257×2
- NLA GASKET-LETH,300MM - 5000113308×2
- Plate - 5000113381×1
- BOLT - 5000112766×4
- Washer - 5000112819×4
- PLUG-RUBBER - 5000113754×1
- SPACER - 5000113403×1
- PLATE - 5000113380×1
- PLATE-FLOOR - 5000115543×1
- Washer - 5000112828×14
- NUT-LOCK - 5000112805×2
- BOLT - 5000112768×2
- NLA BOLT - 5000112762×6
- Washer - 5000112818×6
- NLA WASHER - 5000112827×10
- BOLT - 5000112763×2
- NUT-LOCK - 5000112804×2
- Washer - 5000112828×2
- NLA WASHER - 5000113259×2
- NLA WASHER - 5000113259×2
