RD16-90 Vibratory Roller

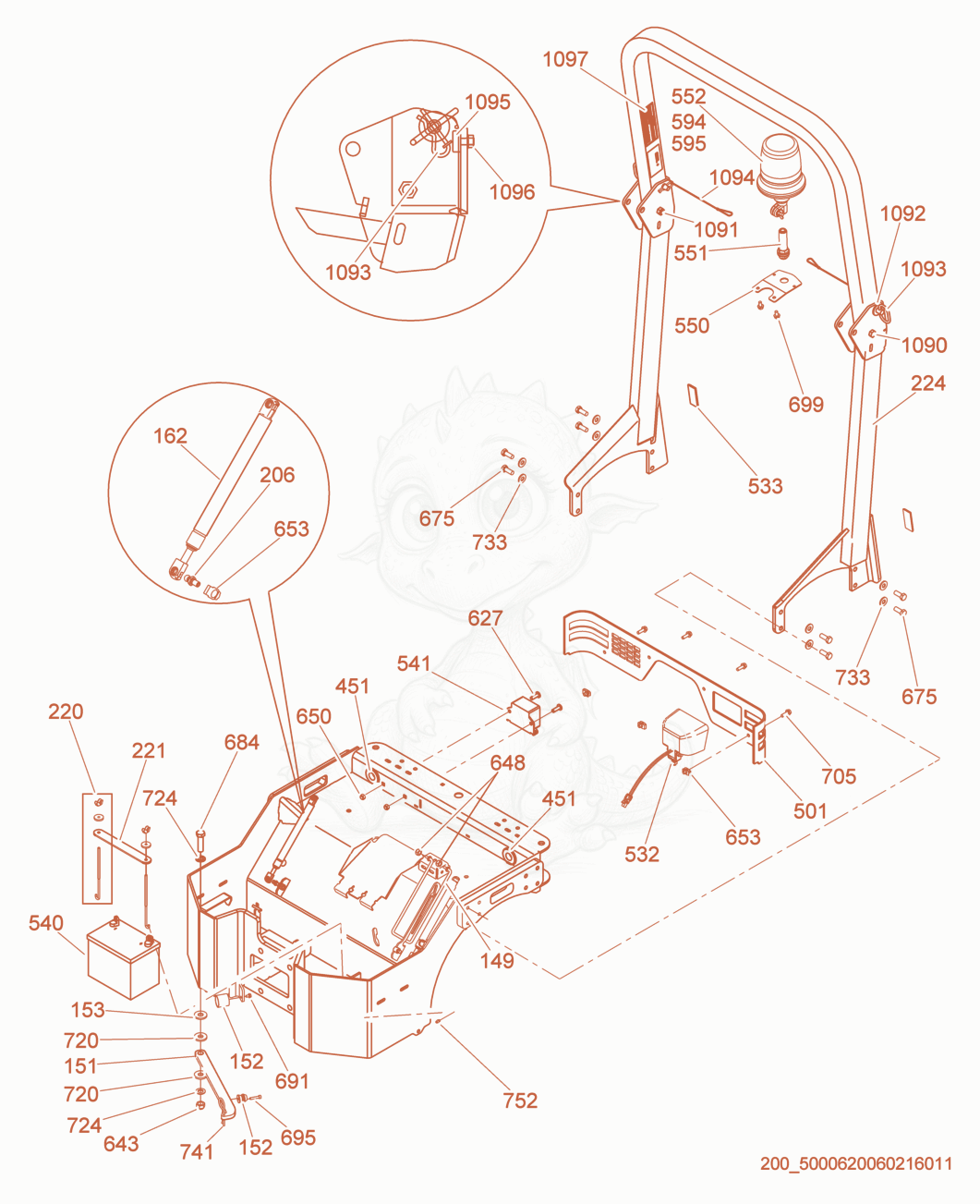

Despiece de ROPS/Battery · RD16-90
- ROD-PROP,RD - 5000186624×1
- BAR-LOCKING ARM P-5000175819 - 5100019487×1
- LATCH-DOOR - 5000111536×1
- SPACER-LOCK ARM - 5000163254×1
- CYLINDER-LIFTING - 5000165516×2
- STUD-BALL 10 x M8 - 5000155125×2
- BOLT-J .25-8,BATTERY - 5000157185×2
- PLATE-BATTERY P-5000112007 - 5000163633×1
- PENDX-5200017771 FRAME-ROPS,FOLDABLE - 5000163264×1
- GROMMET,1IDX1-3/4ODX1/4 WOG - 5000163464×2
- WRAP-BUMPER,REAR P-5000176420 - 5000163379×1
- LIGHT-WORK,12V,RD16 - 5000164150×1
- REFLECTOR-RED 22R ECE - 5000162980×1
- BATTERY-WET,GR 34 - 5000153758×1
- ALARM-BACK UP - 5000078352×1
- BRACKET-MOUNT,BEACON P-5000176420 - 5000163627×1
- MOUNT-ROTATING BEACON - 5000163224×1
- 5525000162959No la vendemosBeacon group option×1
- LIGHT BULB - 5000162345×1
- CLIP-RETAINING - 5000162341×1
- SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×2
- NUT-LOCK M16 HEX. - 5000013496×1
- NUT-LOCK M6 HEX. - 5000010368×2
- NUT-LOCK M8 HEX - 5000010367×2
- NUT-LOCK,M8 CLIP - 5000110969×6
- SCREW M12 X 30-10.9,HX HD - 5000020378×8
- SCREW M16 X 60 HX.HD. - 5000011517×1
- SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×1
- SCREW-ALLEN M6X30 8.8 - 5000151434×1
- SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×2
- SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×4
- WASHER, NYLON - 5000031121×2
- WASHER B17 FLAT - 5000010618×2
- WASHER-LOCK A12 - 5000031565×8
- PIN 3-9/16 LONG,COTTER - 5002005276×1
- FITTING-GREASE AM6 - 5002004705×1
- CABLE-LANYARD - 5000172017×2
- LABEL-ROPS - 5000172020×1
- 10985200016011No la vendemosAdjustable handle×2
- 10995200016010No la vendemosWasher×4
- 11005200016009No la vendemosPin×4
