RD24-100 C Tandem Roller

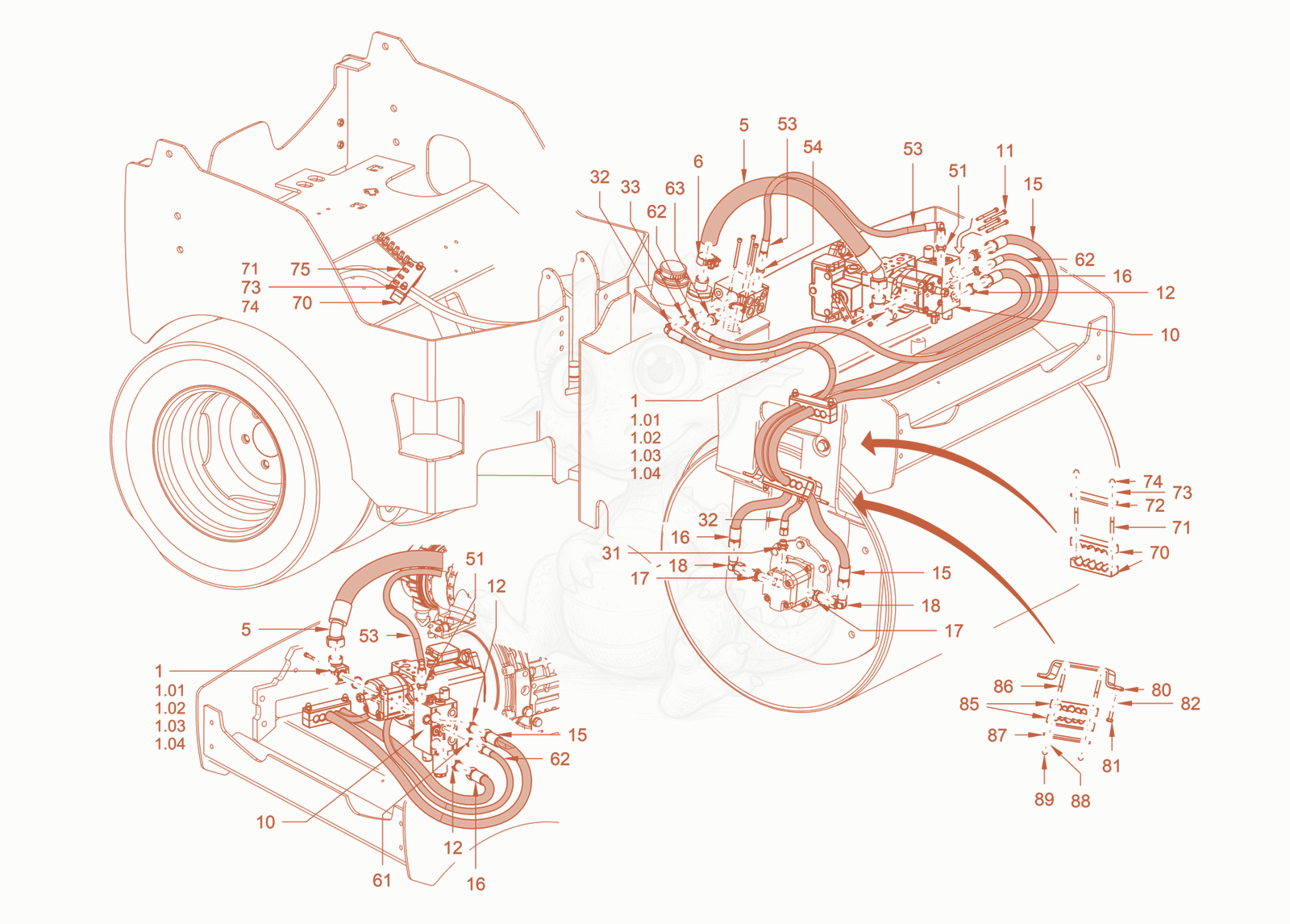

Despiece de vibration drive · RD24-100CUS
- Angle flange screwing - 5100013218×1
- O-ring seal - 5100011500×1
- Cheese-head screw - 5100012723×2
- 15100012942No la vendemosSpring ring×4
- Cheese-head screw - 5100013497×2
- Flexible tubing - 5100012750×1
- Hose clip - 5100011896×1
- Valve block - 5100012383Se desconoce×1
- 105100052956No la vendemoscontrol block×1
- 105100063128No la vendemosValve block×1
- Cheese-head screw - 5100012815×4
- Straight screwed socket - 5100013603×2
- Screw plug - 5100011855×2
- Flexible tubing - 5100011509×1
- Flexible tubing - 5100012285×1
- Flexible tubing - 5100012062×1
- Flexible tubing - 5100012286×1
- Straight screwed socket - 5100013476×2
- Elbow adjustable - 5100013483×2
- Straight screwed socket - 5100013447×1
- Flexible tubing - 5100013496×1
- Flexible tubing - 5100012289×1
- Straight screwed socket - 5100013553×1
- Straight screwed socket - 5100013553×1
- Flexible tubing - 5100011456×1
- Straight screwed socket - 5100013474×1
- Straight screwed socket - 5100013474×1
- Flexible tubing - 5100012305×1
- Straight screwed socket - 5100013499×1
- Half-clip - 5100012270×4
- Stud bolt - 5100012946×4
- Cover plate - 5100012298×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×4
- Metal plate - 5100012051×2
- Clamp support - 5100012256×1
- Hexagon screw - 5100013510×2
- Locking washer - 5100012966×4
- Hexagon nut - 5100012546×2
- Half-clip - 5100012270×2
- Stud bolt - 5100012946×2
- Cover plate - 5100012298×1
- Locking washer - 5100012966×2
- Cap nut - 5100011525×2
