RD28-120c CN

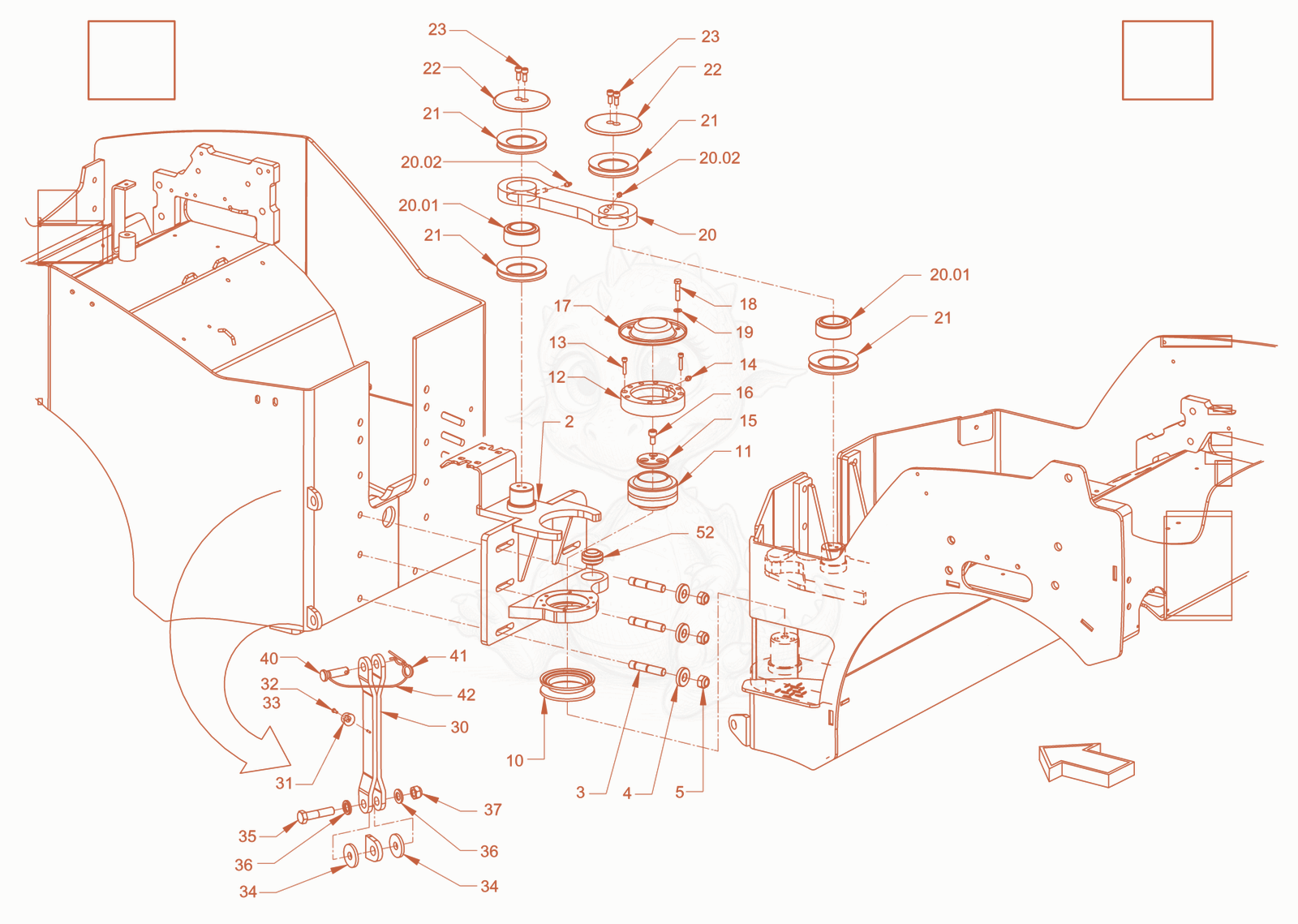

Despiece de centre pivot assembly · RD28-120CCN

25100070411No la vendemos
pendulum joint×1
35100012911
$6.99
Stud bolt - 5100012911×6
45100016501
$3.84
Washer - 5100016501×6
55100012548
$5.41
Hexagon nut - 5100012548×6
105100011782
$38.06
Sealing ring - 5100011782×1
115100013610
$480.36
Rod end ball joint - 5100013610×1
125100011779
$357.94
Clamping piece - 5100011779×1
135100011481
$1.49
Cheese-head screw - 5100011481×2
145100012479
$1.49
Greasing nipple - 5100012479×1
155100011778
$84.73
Clamping piece - 5100011778×1
165100012725
$1.57
Cheese-head screw - 5100012725×3
175100012084
$38.29
Cover - 5100012084×1
185100012506
$1.53
Hexagon screw - 5100012506×6
195100012966
$1.57
Locking washer - 5100012966×6
205100012479
$1.49
Greasing nipple - 5100012479×2
205100011780
$1,369.65
Pendulum suspension - 5100011780×1
205100011644
$330.11
Radial rod end bearing - 5100011644×2
215100011761
$39.63
Sealing ring - 5100011761×4
225100011781
$205.93
Clamping piece - 5100011781×2
235100012724
$1.57
Cheese-head screw - 5100012724×4
305100070413No la vendemos
safety strut×1
315100013432
$4.37
Rubber buffer - 5100013432×1
325100013607
$1.57
Raised countersunk head screw - 5100013607×1
335100012965
$3.01
Locking washer - 5100012965×1
345100011731
$3.15
Rubber washer - 5100011731×2
355100011493
$10.96
Hexagon screw - 5100011493×1
365100012969
$3.15
Locking washer - 5100012969×2
375100012603
$2.40
Safety nut - 5100012603×1
405100012009
$33.69
Bolt - 5100012009×1
415100011803
$3.23
W-clip - 5100011803×1
425100011590
$10.60
Safety cord - 5100011590×1
525100011777
$144.89
Radial rod end bearing - 5100011777×1
