RD45-140.3

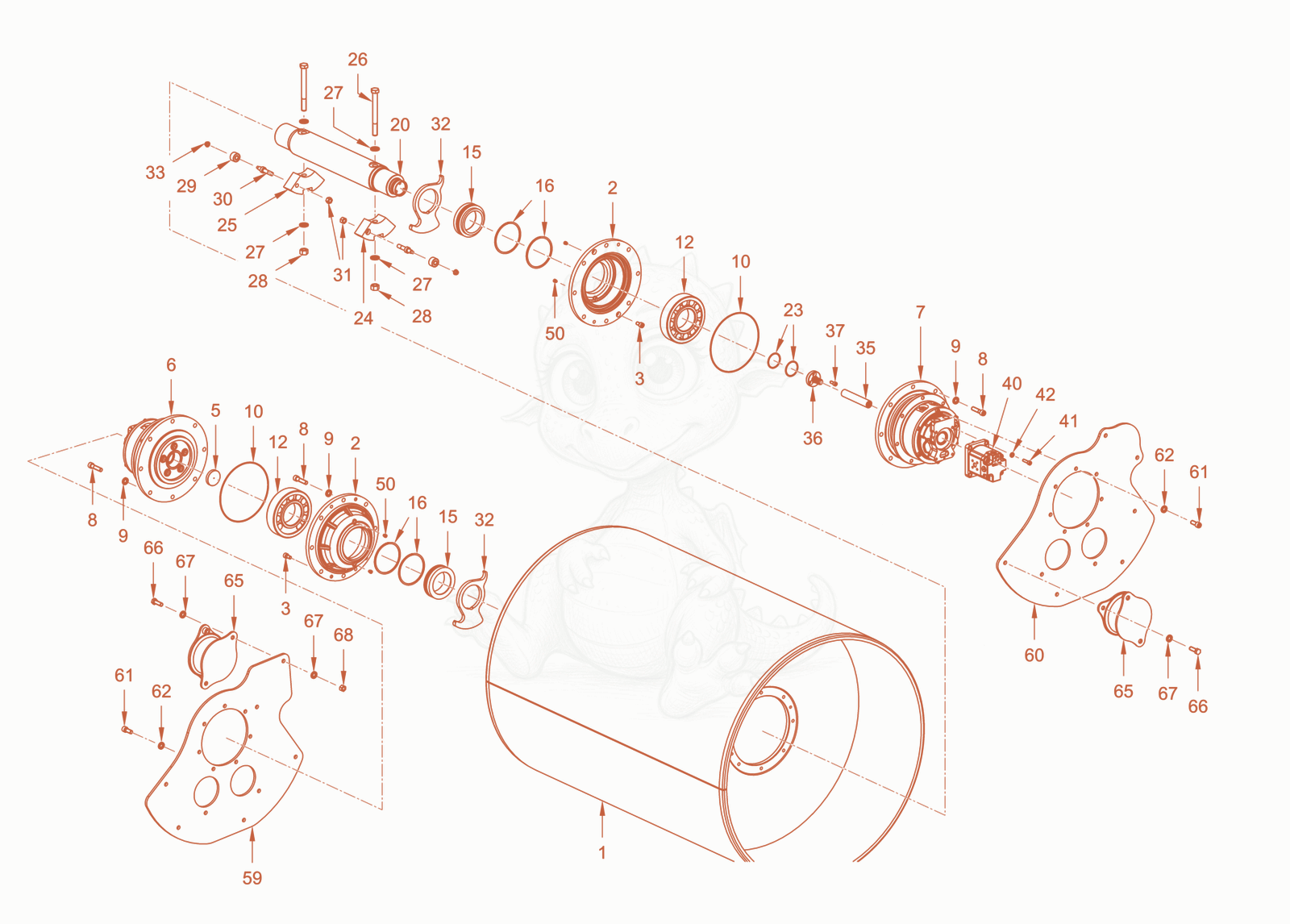

Despiece de roller drum with vibrator · RD45-140.3

Despiece del roller drum with vibrator de una máquina Wacker Neuson RD45-140.3, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100011796No la vendemos
    Roller drum×1
  • 25100011809
    $1,440.88
    Flange - 5100011809×2
  • 35100012725
    $1.57
    Cheese-head screw - 5100012725×4
  • 55100011663
    $46.79
    Cap - 5100011663×1
  • 65100065326No la vendemos
    gear hub motor×1
  • 75100065327No la vendemos
    gear hub motor×1
  • 85100012789
    $3.71
    Cheese-head screw - 5100012789×16
  • 95100012968
    $1.57
    Locking washer - 5100012968×16
  • 105100013423
    $8.25
    O-ring seal - 5100013423×2
  • 125100011810
    $828.03
    Cylindrical roller bearing - 5100011810×2
  • 155100011808
    $107.11
    Ring - 5100011808×2
  • 165100011811
    $32.91
    Disc ring - 5100011811×4
  • 205100086755No la vendemos
    unbalance shaft×1
  • 235100011647
    $11.56
    Disc ring - 5100011647×2
  • 245100012149
    $275.24
    Unbalance - 5100012149×1
  • 255100012148
    $275.24
    Unbalance - 5100012148×1
  • 265100012514
    $13.09
    Hexagon screw - 5100012514×2
  • 275100012969
    $3.15
    Locking washer - 5100012969×4
  • 285100012405
    $3.37
    Hexagon nut - 5100012405×2
  • 295100011655
    $75.21
    Bushing - 5100011655×2
  • 305100012147
    $125.22
    Threaded bolt - 5100012147×2
  • 315100012548
    $5.41
    Hexagon nut - 5100012548×2
  • 325100011806
    $112.05
    Unbalance loose - 5100011806×2
  • 335100012534
    $1.57
    Hexagon nut - 5100012534×2
  • 355100086763No la vendemos
    spline bush×1
  • 365100086764No la vendemos
    involute spline shaft×1
  • 375100012724
    $1.57
    Cheese-head screw - 5100012724×3
  • 405100086754No la vendemos
    gear motor×1
  • 415100012754
    $1.57
    Cheese-head screw - 5100012754×4
  • 425100012966
    $1.57
    Locking washer - 5100012966×4
  • 505100012868
    $1.57
    Threaded pin - 5100012868×4
  • 595100013181
    $537.03
    Driver - 5100013181×1
  • 605100013182
    $521.71
    Driver - 5100013182×1
  • 615100048107No la vendemos
    cheese-head screw×14
  • 625100012968
    $1.57
    Locking washer - 5100012968×14
  • 655100011699
    $129.91
    Silentbloc - 5100011699×6
  • 665100023184
    $3.15
    hexagon screw - 5100023184×12
  • 675100012968
    $1.57
    Locking washer - 5100012968×24
  • 685100012548
    $5.41
    Hexagon nut - 5100012548×12
