RD7 Tandem Roller

Despiece de Engine Compartment · RD7A

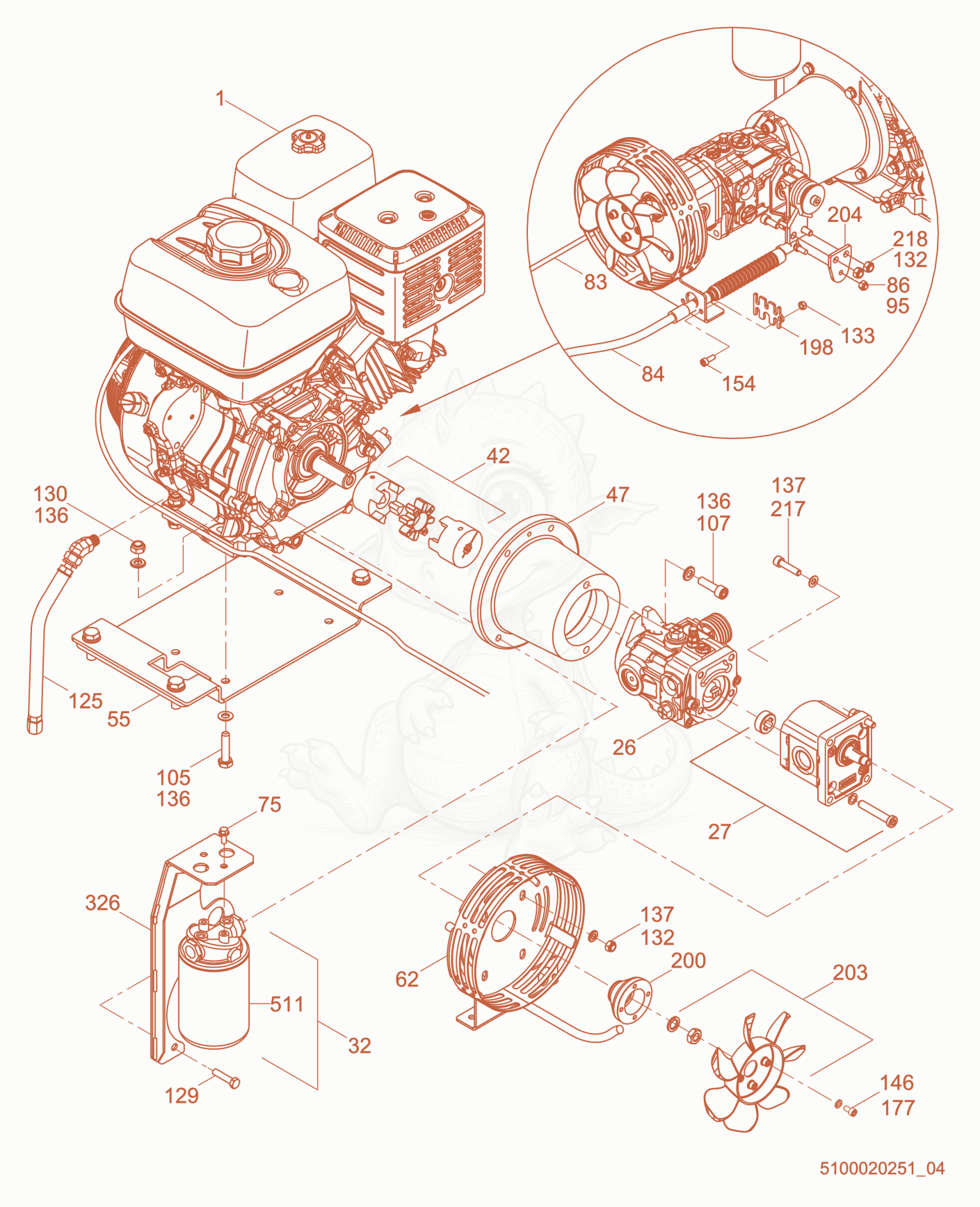

Despiece del Engine Compartment de una máquina Wacker Neuson RD7A, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15200022193No la vendemos
    Engine-Honda×1
  • 265100047071
    $1,652.29
    Pump-Drive - 5100047071×1
  • 275100047070
    $349.80
    Pump-Exciter - 5100047070×1
  • 325200016308No la vendemos
    Hydraulic filter cpl.×1
  • 425100027379
    $314.36
    COUPLING-SHAFT, RD7 - 7mm KEY - 5100027379×1
  • 475100028191
    $171.46
    ADAPTER-ENGINE/PUMP RD7 - 5100028191×1
  • 555100017048No la vendemos
    Weldment×1
  • 625100029090
    $112.52
    BRACKET-FAN GUARD P-5000176420 - 5100029090×1
  • 755200021953No la vendemos
    Hexagonal head cap screw×2
  • 835200017204No la vendemos
    Throttle cable×1
  • 845100028837
    $77.55
    CABLE-TRAVEL,RD7A & Y - 5100028837×1
  • 865000114114
    $21.40
    CABLE-BALL END - 5000114114×1
  • 955000028746
    $0.06
    NUT-LOCK 1/4-28,HEX,NYLON INS. - 5000028746×1
  • 1055000011319
    $0.52
    SCREW M10 X 45 HX.HD - 5000011319×4
  • 1075000164600
    $0.78
    SCREW M10X35 SOC.HD W/3M-2353 - 5000164600×2
  • 1245200024396No la vendemos
    Engine drain hose×1
  • 1255200024396No la vendemos
    Engine drain hose×1
  • 1295100033059
    $0.34
    SCREW 3/8-16 X 1-1/4 W/FW,HX.HD. - 5100033059×4
  • 1305000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×4
  • 1325000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×9
  • 1335000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 1365000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×10
  • 1375000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×10
  • 1465000011554
    $0.13
    SCREW M6 X 12 SOC.HD. - 5000011554×4
  • 1545000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×2
  • 1775000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 1985100028125
    $44.26
    PLATE-CABLE HOLDDOWN P-5000176420 - 5100028125×1
  • 2005200015688No la vendemos
    Adapter×1
  • 2035200011470No la vendemos
    Fan×1
  • 2045200014788No la vendemos
    Lever×1
  • 2175000011540
    $0.55
    SCREW M8 X 35 SOC.HD. - 5000011540×2
  • 2185000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×2
  • 3265100027436
    $386.46
    BRACKET-FILTER,RD7Y P-5000176420 - 5100027436×1
  • 5115200016307No la vendemos
    Hydraulic filter×1
