RD 7ES

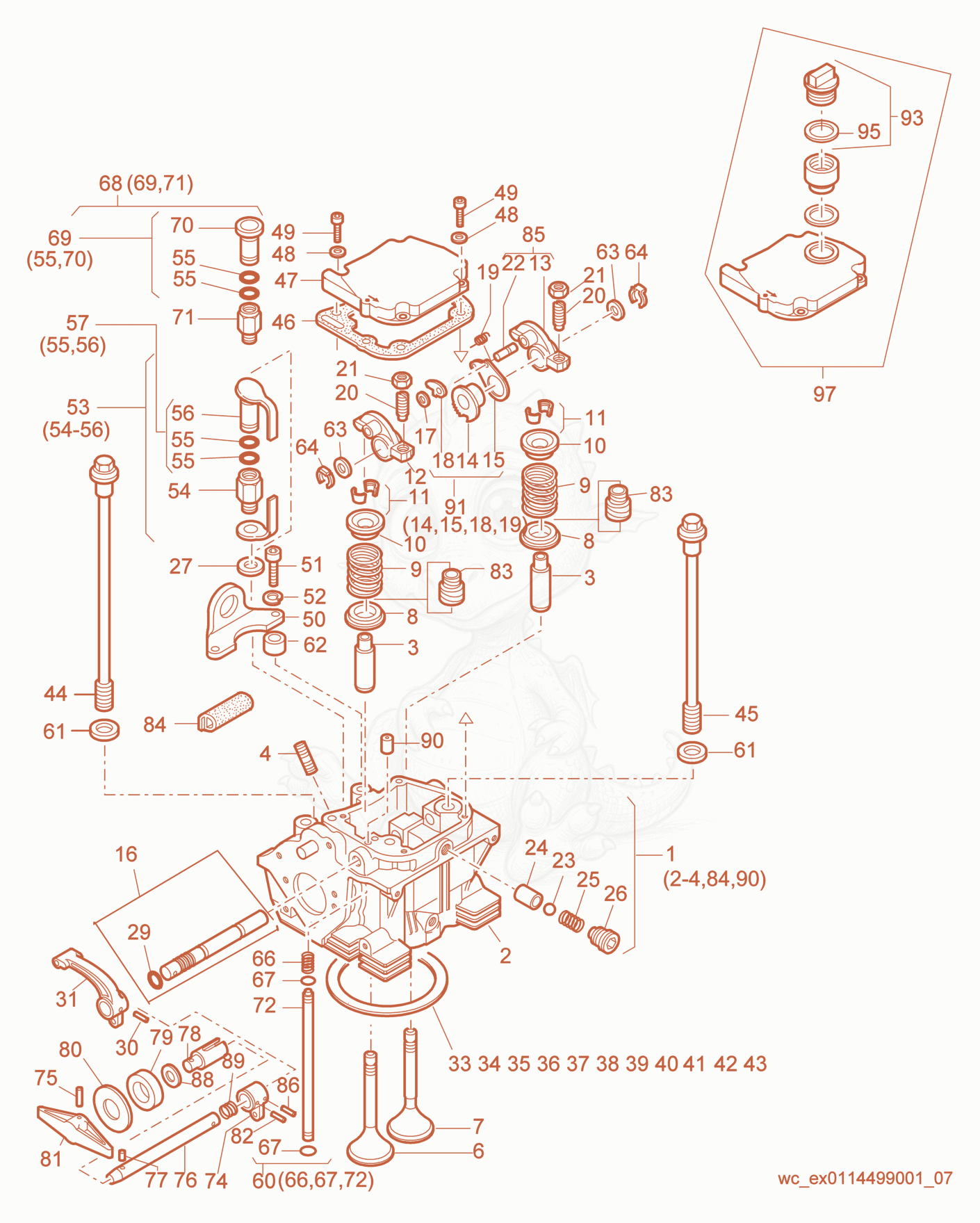

Despiece de Cylinder Head · RD7H-ESEU
- CYLINDER HEAD CPL. - 5000226582×1
- GUIDE-VALVE - 5000126916×2
- STUD M8 X 40 - 5000201378×1
- VALVE-INLET - 5000207806×1
- VALVE-EXHAUST - 5000207807×1
- DISK-SUPPORT - 5000104372×2
- SPRING-VALVE - 5000104370×2
- PLATE-SPRING - 5000104369×2
- SET-VALVE CONES - 5000047964×2
- ROCKER ARM INTAKE - 5000098449×1
- HOLDER - 5000094895×1
- SHAFT ROCKER - 5000106565×1
- CLIP-RETAINING - 5000202427×1
- Spring - 5000094894×1
- SCREW-ADJUSTING - 5000094891×2
- NUT-LOCK 5/16X24 - 5004101500×2
- Ball - 5000066801×1
- BUSHING - 5000094886×1
- Spring - 5000094887×1
- Screw - 5000094888×1
- SEAL-RING 12 X 15.5 - 5000013186×1
- O-RING 8X2 - 5000108801×1
- PIN - 5000013587×1
- LEVER-DECOMPRESSION - 5000094909×1
- SEAL 0.3MM - 5000104377×1
- SEAL 0.4MM - 5000104378×1
- SEAL 0.5MM - 5000104379×1
- SEAL 0.6MM - 5000104380×1
- SEAL 0.7MM - 5000104381×1
- SEAL 0.8MM - 5000104382×1
- SEAL 0.9MM - 5000104383×1
- SEAL 1.0MM - 5000104384×1
- SEAL 1.1MM - 5000104385×1
- SEAL 1.2MM - 5000104386×1
- SEAL 1.3MM - 5000104387×1
- BOLT-CYLINDER HEAD - 5000104363×2
- BOLT-CYLINDER HEAD - 5000104364×2
- GASKET-COVER - 5000098445×1
- COVER-VALVE - 5000098444×1
- WASHER-SPRING, A6 - 5000151290×4
- SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×4
- LIFTING EYE - 5000104439×1
- SCREW-ALLEN,M8 X 30 - 5000202439×2
- WASHER-SPRING - 5000151218×2
- PRIMER-FUEL - 5000102468×1
- O-RING 11.3 X 2.4 - 5000107390×2
- PLUG - 5000102469×1
- TUBE-OIL - 5000104373×1
- Washer - 5000104365×4
- SPACER-9.2 X 17.2 X 10 - 5000202383×2
- Washer - 5000094883×2
- RET.RING - 5000104389×2
- Spring - 5000094903×1
- O-Ring - 5000094905×2
- TUBE-FILLER - 5000202372×1
- plug 46mm - 5000202370×1
- holder - 5000202392×1
- PIN-ROLL 4 X 6 - 5000202428×1
- SHAFT-DECOMPRESSION - 5000202403×1
- PIN-ROLL 4 X 14 - 5000202418×1
