RD7Yeh HRC

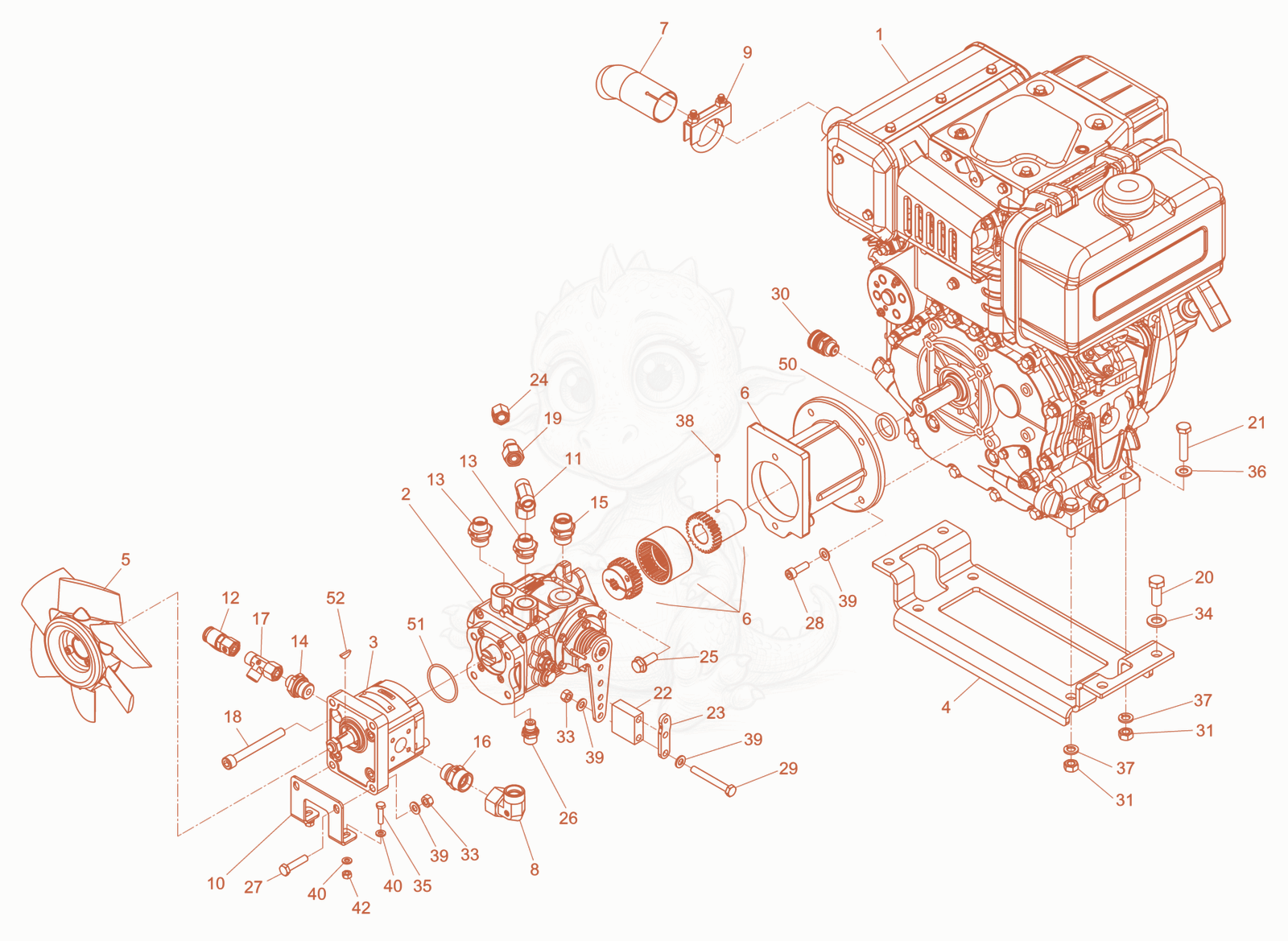

Despiece de Engine cpl. · RD7YEHHRC

Despiece del Engine cpl. de una máquina Wacker Neuson RD7YEHHRC, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100006352No la vendemos
    Combustion engine×1
  • 25100006586
    $3,382.49
    Axial pump - 5100006586×1
  • 25100006906
    $372.45
    Gasket set - 5100006906×1
  • 35100006587
    $801.89
    Gear pump - 5100006587×1
  • 35100006905
    $97.59
    Gasket set - 5100006905×1
  • 45100006642
    $378.24
    Plate Yanmar - 5100006642×1
  • 55100006939No la vendemos
    Fan wheel×1
  • 65100006612
    $1,207.69
    Engine clutch - 5100006612×1
  • 75100006837
    $145.22
    Exhaust pipeYanmar - 5100006837×1
  • 85100006580
    $115.89
    Angular connection - 5100006580×1
  • 95100006526
    $15.70
    Pipe clamp - 5100006526×1
  • 105100006754
    $61.36
    Bracket - 5100006754×1
  • 115100006566
    $77.17
    Screw connection - 5100006566×1
  • 125100006760
    $161.12
    Test port - 5100006760×1
  • 135100006742
    $40.62
    Male stud connector - 5100006742×2
  • 145100006571
    $34.54
    Male stud connector - 5100006571×1
  • 155100006577
    $24.22
    Male stud connector - 5100006577×1
  • 165100006578
    $46.43
    Male stud connector - 5100006578×1
  • 175100006588
    $97.80
    Screw connection - 5100006588×1
  • 185100006730
    $8.49
    Cyl. Head screw - 5100006730×2
  • 195100006567
    $47.30
    Tube end reducer - 5100006567×1
  • 205100006557
    $7.47
    Hexhead screw - 5100006557×4
  • 215100006678
    $4.82
    Hexhead screw - 5100006678×4
  • 225100006940No la vendemos
    Spacer×2
  • 235100006941No la vendemos
    Lever×1
  • 245100006761
    $35.24
    Plug - 5100006761×1
  • 255100006564
    $7.47
    Hexagon head screw M10x25 - 5100006564×2
  • 265100006575
    $17.05
    Male stud connector - 5100006575×1
  • 275100006555
    $5.75
    Hexhead screw - 5100006555×2
  • 285100006631
    $7.25
    Cyl. Head screw - 5100006631×4
  • 295100006942No la vendemos
    Hexhead screw×2
  • 305100006767
    $165.22
    Oil drain plug M16x1,2 - 5100006767×1
  • 315100006563
    $3.37
    Nut - 5100006563×4
  • 335100006543
    $3.00
    Nut - 5100006543×4
  • 345100006538
    $2.12
    Washer - 5100006538×4
  • 355100007163No la vendemos
    hexagonal head cap screw×2
  • 365100006551
    $1.64
    Washer - 5100006551×4
  • 375100006629
    $2.12
    Lock washer A10 - 5100006629×4
  • 385100006688
    $1.60
    Threaded pin M6x10 - 5100006688×1
  • 395100006553
    $0.88
    Washer - 5100006553×10
  • 405100006546
    $0.35
    Washer - 5100006546×4
  • 425100006542
    $1.60
    Nut - 5100006542×2
  • 505100006870
    $39.84
    Ring 35 - 5100006870×1
  • 515100006912
    $6.46
    O-Ring 47x2,5 - 5100006912×1
  • 525100006944No la vendemos
    Fitting key×1
