RS800A-ROLLER,SINGLE DRUM

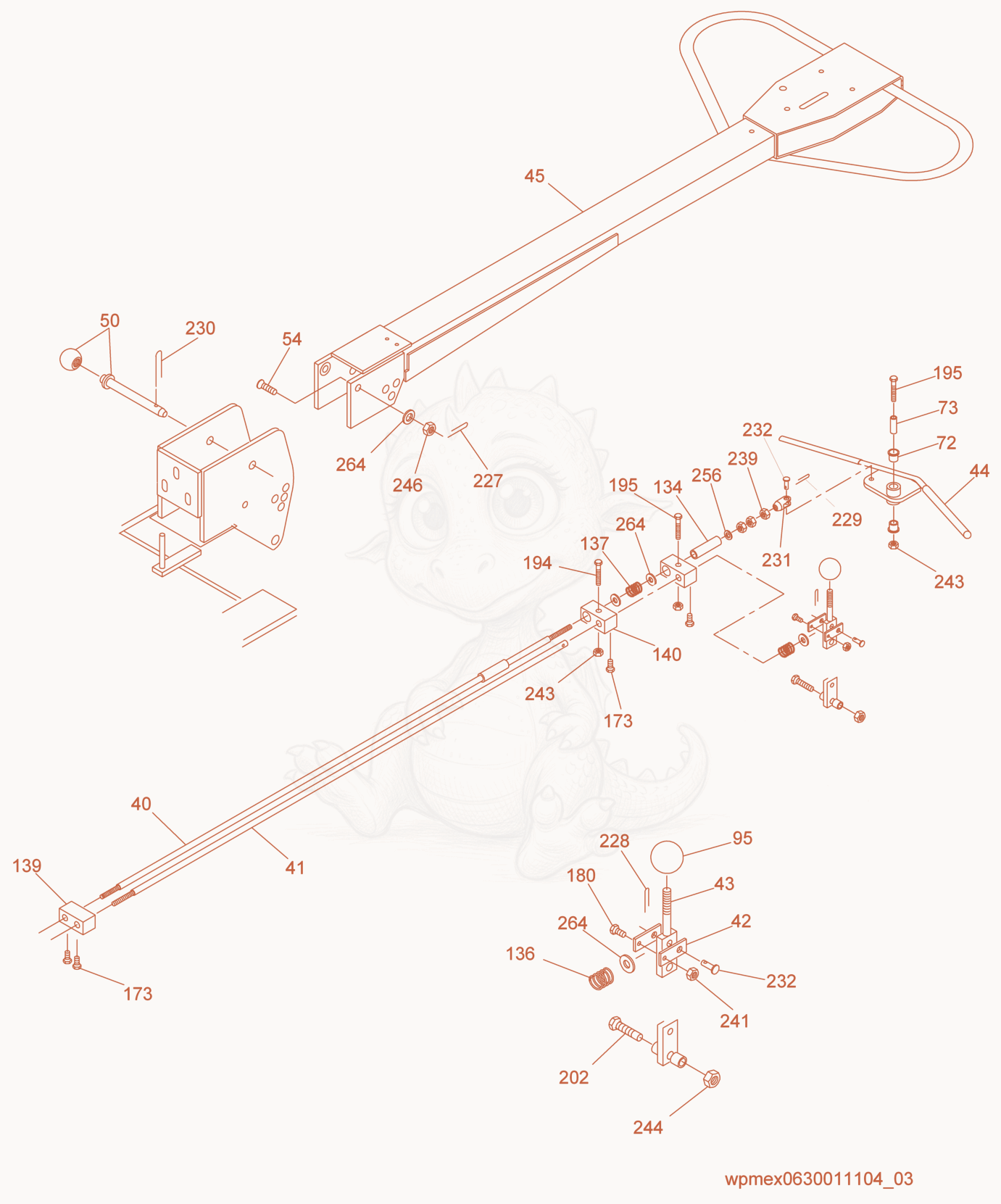

Despiece de Controls cpl. · RS800A
- ROD-TRANSMISSION CONTROL - 5000072728×1
- ROD-EXCITER CONTROL,LONG - 5000072733×1
- Link - 5000073806×2
- LEVER P-5000112007 - 5000073822×1
- LEVER-TRANSMISSION CONTROL - 5000078529×1
- HANDLE-ROLLER GUIDE,LONG - 5000080265×1
- PIN-HITCH 5/8 DIA X 5-3/4 - 5000110709×1
- SCREW M12 X 40,FL.HD.W/HOLE - 5000077255×2
- BUSHING-NYLON - 5000072726×2
- BUSHING-PIVOT - 5000080679×1
- KNOB C40 FS - 5000017609×1
- Spacer - 5000073021×1
- Spring - 5000074111×1
- Spring - 5000079360×1
- BLOCK-BOTTOM - 5000080262×1
- LOCK-SPRING - 5000080263×2
- SCREW 1/4-20 X 5/8 W/FW,HX.HD. - 5000080264×4
- SCREW M5X25 HX.HD. - 5000011474×1
- SCREW M8 X 50 HX.HD. - 5000011343×1
- SCREW M8 X 60 HX.HD. - 5000011345×2
- SCREW M10 X 50 HX.HD. - 5000011320×1
- PIN 1/8 X 1-1/4,COTTER - 5000077256×2
- PIN 1/8 X 3/4,COTTER - 5000025660×1
- PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
- PIN 3-9/16 LONG,COTTER - 5002005276×1
- PIN-CLEVIS,ADJUSTABLE - 5000072617×1
- PIN 5/16 DIA. X 1 ,CLEVIS - 5000073140×2
- NUT 5/16-24,HEX. - 5000028585×5
- NUT-LOCK M5 HEX. - 5000010369×1
- NUT-LOCK M8 HEX - 5000010367×3
- NUT-LOCK M10 HEX. - 5000010365×1
- NUT-LOCK M12 HX,SLOTTED - 5000013007×2
- WASHER-FLAT,M8,ZINC - 5000010622×1
- WASHER B13 FLAT - 5000010620×5
