TH955

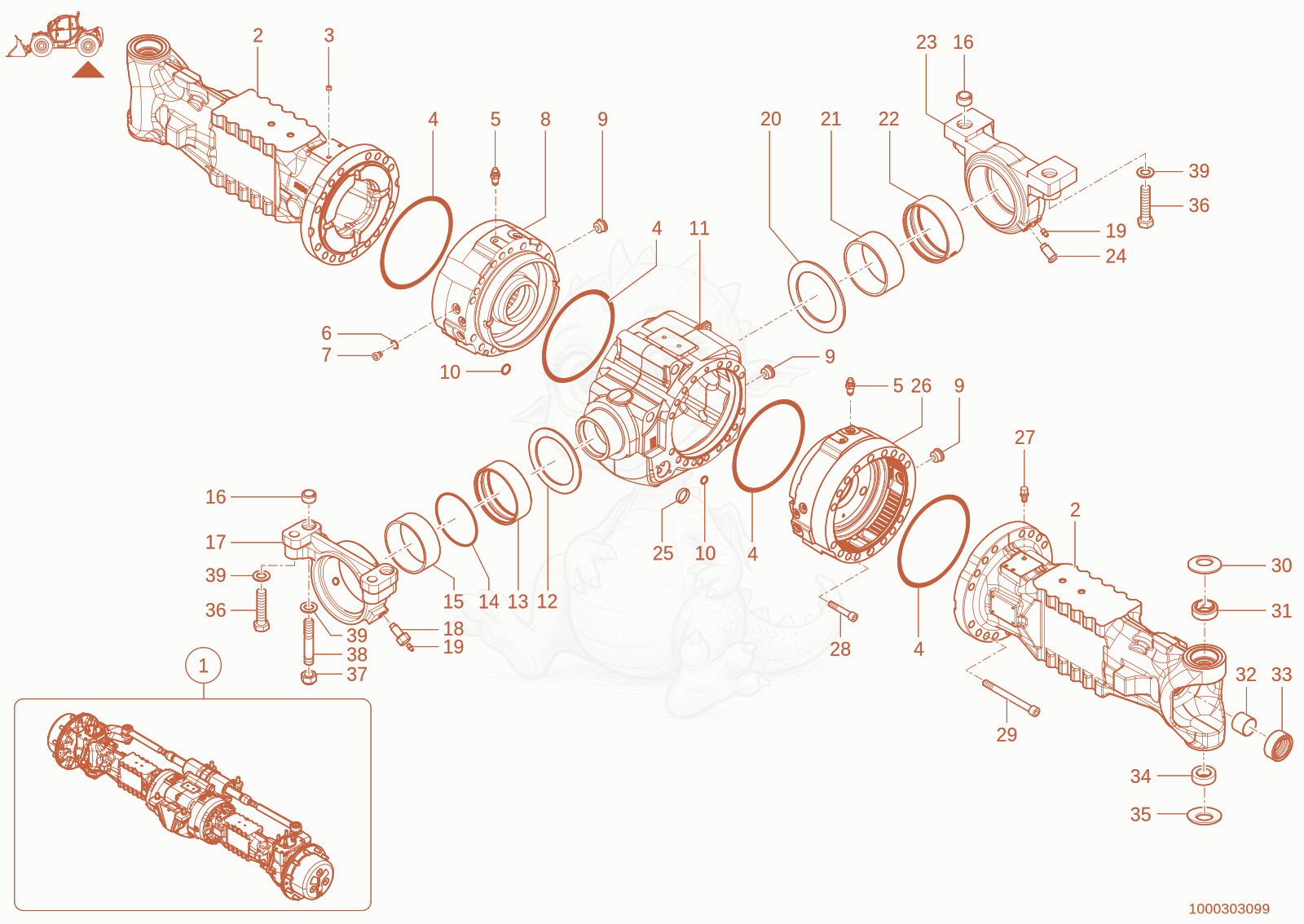

Despiece de rear axle · TH955(416-06)
- 11000311300No la vendemosrear axle×1
- 21000301584No la vendemosAxle carrier×2
- Plug - 1000132645×1
- O-Ring - 1000089248×4
- Breather - 1000052529×2
- SEAL RING - 1000104614×2
- Plug - 1000089251×2
- Flange - 1000302464×1
- Plug - 1000089284×3
- O-Ring - 1000089236×2
- Housing - 1000302467×1
- WASHER - 1000108623×1
- Bushing - 1000089275×1
- O-ring - 1000089243×1
- Bushing - 1000108624×1
- Bushing - 1000089265×4
- Wave spring washer - 1000302102×1
- SCREW - 1000109808×1
- Plug - 1000109810×2
- 201000166499No la vendemoswasher×1
- Bushing - 1000089306×1
- Bushing - 1000089312×1
- Wavespringwasher 1000302101×1
- thread bolt - 1000302103×1
- lock screw - 1000098748×2
- Flange - 1000302465×1
- Breather - 1000089261×1
- 281000132641No la vendemosscrew×2
- Screw - 1000294879×34
- SPRING RING - 1000130032×2
- Bushing - 1000130030×2
- Bushing - 1000294680×2
- Rotary shaft seal - 1000301603×2
- 341000130029No la vendemosbearing×2
- SPRING RING - 1000130028×2
- HEX SCREW - 1000085345×4
- 371000018412No la vendemoshexagon nut×2
- STUD - 1000127041×2
- WASHER - 1000101180×6
