VP1035R-VIBROPLATE

Despiece de Engine Block · VP1035R

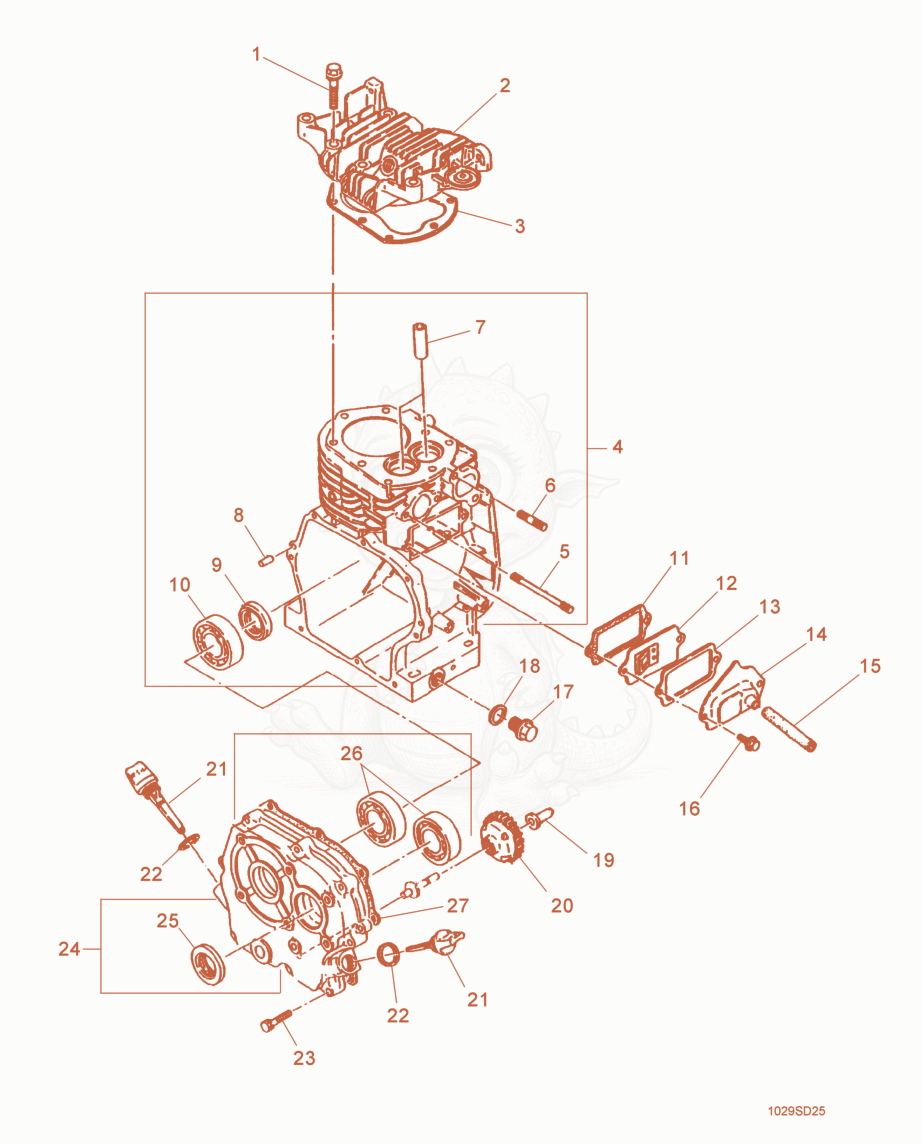

Despiece del Engine Block de una máquina Wacker Neuson VP1035R, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000053607
    $7.28
    SCREW M8 X 40,HEX.FLANGE - 5000053607×8
  • 25000053604
    $372.97
    HEAD-ENGINE CYLINDER - 5000053604×1
  • 35000053605No la vendemos
    Gasket×1
  • 45000115740
    $1,517.63
    CRANKCASE-COMPLETE - 5000115740×1
  • 55000053596
    $8.22
    STUD M6 X 82 - 5000053596×2
  • 65000053595No la vendemos
    Stud×2
  • 75000053594
    $104.43
    GUIDE-ENGINE VALVES - 5000053594×2
  • 85000053598
    $0.98
    PIN-DOWEL TYPE - 5000053598×2
  • 95000029407
    $16.42
    SEAL-SHAFT 25 X 38 X 7,5B - 5000029407×1
  • 105000029406
    $18.84
    BEARING-RADIAL BALL,6205 - 5000029406×1
  • 115000053611
    $5.28
    GASKET - 5000053611×1
  • 125000115741
    $43.02
    PLATE-BREATHER,COMPLETE - 5000115741×1
  • 135000053609No la vendemos
    Gasket×1
  • 145000053606
    $24.51
    COVER-COMPLETE,VALVE TAPPET - 5000053606×1
  • 155000053608
    $23.27
    HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
  • 165000053612No la vendemos
    Screw×2
  • 175000054771
    $15.61
    PLUG-OIL DRAIN - 5000054771×1
  • 185000115742
    $4.85
    GASKET-OIL DRAIN - 5000115742×1
  • 195000029436
    $11.62
    SLEEVE-ENGINE GOVERNOR - 5000029436×1
  • 205000053622
    $53.38
    GEAR-COMPLETE,ENGINE GOVERNOR - 5000053622×1
  • 215000053601No la vendemos
    Dipstick×2
  • 225000075754
    $0.98
    SEAL-RING - 5000075754×2
  • 235000053599
    $1.00
    SCREW M6 X 30 W/WASHER,HX.HD. - 5000053599×8
  • 245000115743
    $553.64
    COVER-BEARING,MAIN - 5000115743×1
  • 255000029407
    $16.42
    SEAL-SHAFT 25 X 38 X 7,5B - 5000029407×1
  • 265000029406
    $18.84
    BEARING-RADIAL BALL,6205 - 5000029406×2
  • 275000118073
    $23.06
    GASKET-COVER,BEARING - 5000118073×1
