VP1135R-AU

Despiece de Intake/Exhaust · VP1135R-AU

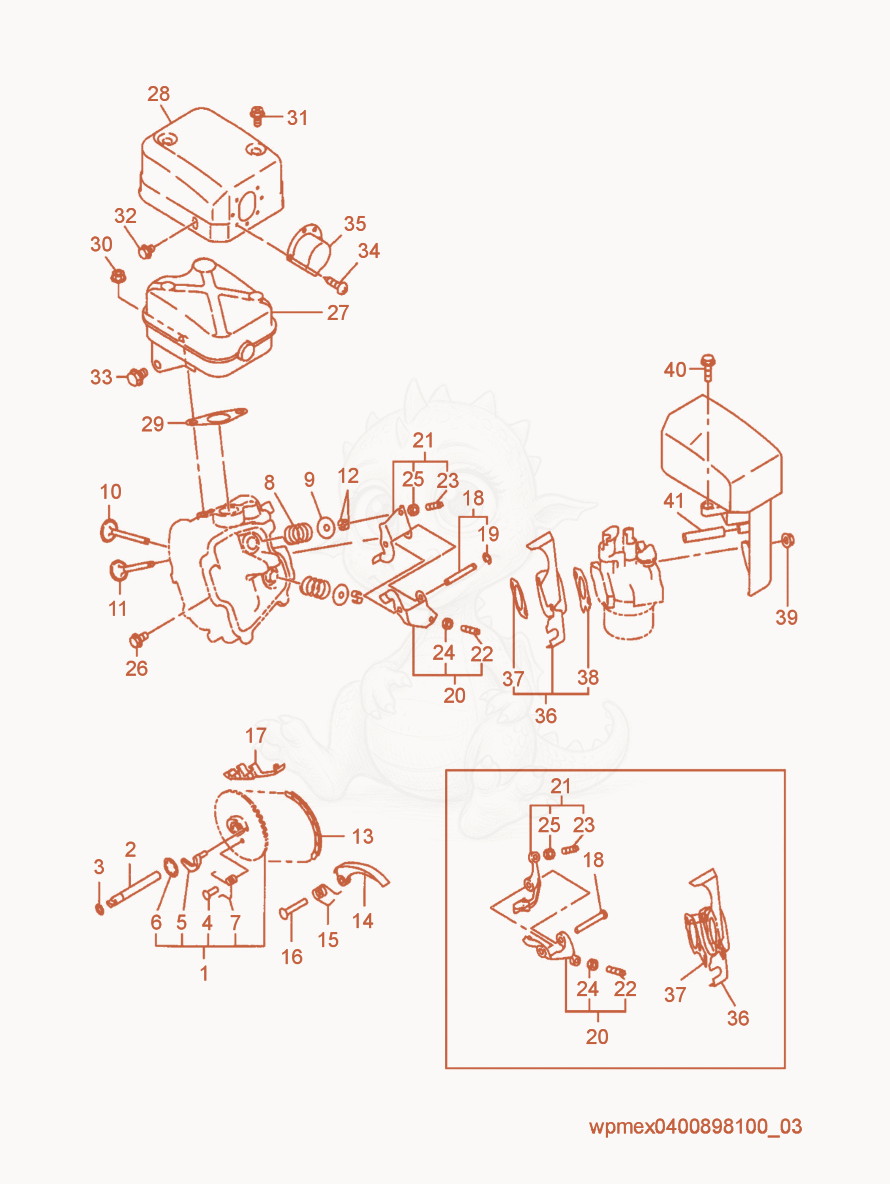

Despiece del Intake/Exhaust de una máquina Wacker Neuson VP1135R-AU, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000156470
    $203.31
    CAMSHAFT COMPL. - 5000156470×1
  • 25000156471
    $10.62
    PIN-CAMSHAFT - 5000156471×1
  • 35000156472
    $4.50
    O-Ring - 5000156472×1
  • 45000156473
    $2.37
    PIN-SPRING - 5000156473×1
  • 55000156474
    $26.79
    LEVER-RELEASE - 5000156474×1
  • 65000156475
    $3.75
    CLIP - 5000156475×1
  • 75000205123
    $4.26
    SPRING-RETURN - 5000205123×1
  • 85000156477
    $9.26
    SPRING-VALVE - 5000156477×2
  • 95000156478
    $7.30
    RETAINER-SPRING,VALVE - 5000156478×2
  • 105000216809No la vendemos
    Intake valve×1
  • 115000216810No la vendemos
    Exhaust valve×1
  • 125000156481
    $2.60
    HOLDER-VALVE - 5000156481×4
  • 135000205126
    $56.91
    CHAIN-TIMING,COMPLETE - 5000205126×1
  • 145000156483
    $20.43
    CRANK - 5000156483×1
  • 155000156484
    $3.76
    SPRING-TENSION - 5000156484×1
  • 165000156485
    $9.03
    PIN-TENSIONER - 5000156485×1
  • 175000156486
    $5.38
    GUIDE-CHAIN - 5000156486×1
  • 185000205304
    $5.10
    X-5200001097 PIN-ROCKER - 5000205304×1
  • 195000156106
    $0.55
    CLIP - 5000156106×1
  • 205000205128
    $65.40
    ROCKER ARM-INLET - 5000205128×1
  • 215000205129
    $60.25
    ROCKER ARM-EXHAUST - 5000205129×1
  • 225000205130
    $3.76
    SCREW-ADJUSTMENT - 5000205130×1
  • 235000205130
    $3.76
    SCREW-ADJUSTMENT - 5000205130×1
  • 245000205131
    $2.11
    nut - 5000205131×1
  • 255000205131
    $2.11
    nut - 5000205131×1
  • 265000156597
    $2.49
    BOLT-FLANGE - 5000156597×1
  • 275000216808No la vendemos
    Muffler cpl.×1
  • 285000216811No la vendemos
    Muffler cover×1
  • 295000203771
    $3.37
    GASKET-MUFFLER - 5000203771×1
  • 305000156497
    $3.70
    X-5000075270 NUT-FLANGE - 5000156497×2
  • 315000117241
    $1.51
    BOLT-TAPPING - 5000117241×2
  • 325000156645
    $2.46
    BOLT-FLANGE - 5000156645×1
  • 335000205305
    $1.43
    screw - 5000205305×1
  • 345000156494
    $0.35
    SCREW-SELF TAPPING - 5000156494×2
  • 355000202070
    $34.25
    DEFLECTOR - 5000202070×1
  • 365000205146
    $16.68
    INSULATOR - 5000205146×1
  • 375000205148
    $1.85
    GASKET-CARBURETOR - 5000205148×1
  • 385000205147
    $1.85
    GASKET-CARBURETOR - 5000205147×1
  • 395000053616
    $1.72
    NUT M6,HEX,FLANGE - 5000053616×2
  • 405000156503
    $1.32
    BOLT-FLANGE - 5000156503×1
  • 415000053608
    $23.27
    HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
