VP1550 VIBROPLATE

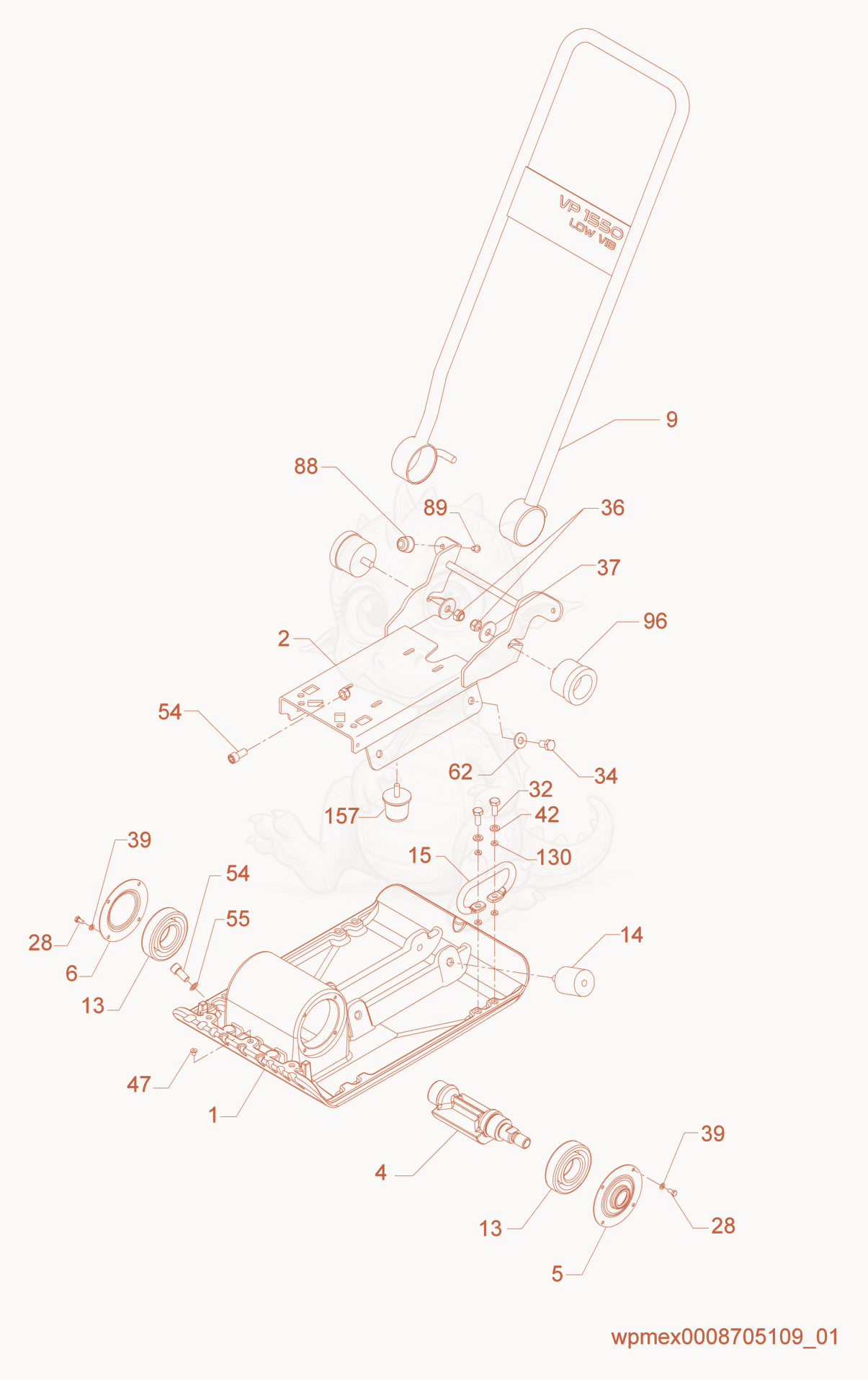

Despiece de Baseplate/Console cpl. · VP1550
- ASM_Baseplate 50 cm - 5000401270×1
- CONSOLE WELDMENT - 5000401602×1
- SHAFT-MACHINED,50CM X-5000403566 - 5000116137×1
- CAPS-SEAL COMPLETE - 5000155431×1
- CAP-END W/O HOLE,PAINTED - 5000117630×1
- GUIDE HANDLE ASSEMBLY - 5000130569×1
- BEARING-RADIAL BALL,6309 C3 - 5000117024×2
- SHOCKMOUNT 50X55,FORM B - 5000130000×4
- HANDLE LIFTING KIT - 5000130881×4
- SCREW M6 X 12 HX.HD. - 5000012357×8
- SCREW M10 X 25 HX.HD. - 5000011440×8
- SCREW M12 X 20 HX.HD. - 5000012368×4
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- WASHER .531X 1.625X.120,FLAT - 5000114766×2
- WASHER-LOCK B6 - 5000010649×8
- Washer Lock DIN6796,Zinc Mechanical - 5000407043×8
- PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×3
- Screw-M12 x 25, 12.9,Soc Mechanical Zinc - 5000017086×2
- SEAL-RING 12 X 18 - 5000013444×1
- WASHER-LOCK A12 - 5000031565×4
- SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
- SCREW M8 X 12 HX.HD. - 5000012360×2
- SHOCKMOUNT-LOW VIBE - 5000130064×2
- 1295000130655No la vendemosLabel×1
- SPACER-RUBBER - 5000130787×16
- Shockmount - 5000130961×1
