VP60HW-VIBROPLATE

Despiece de Crankcase · VP60HW

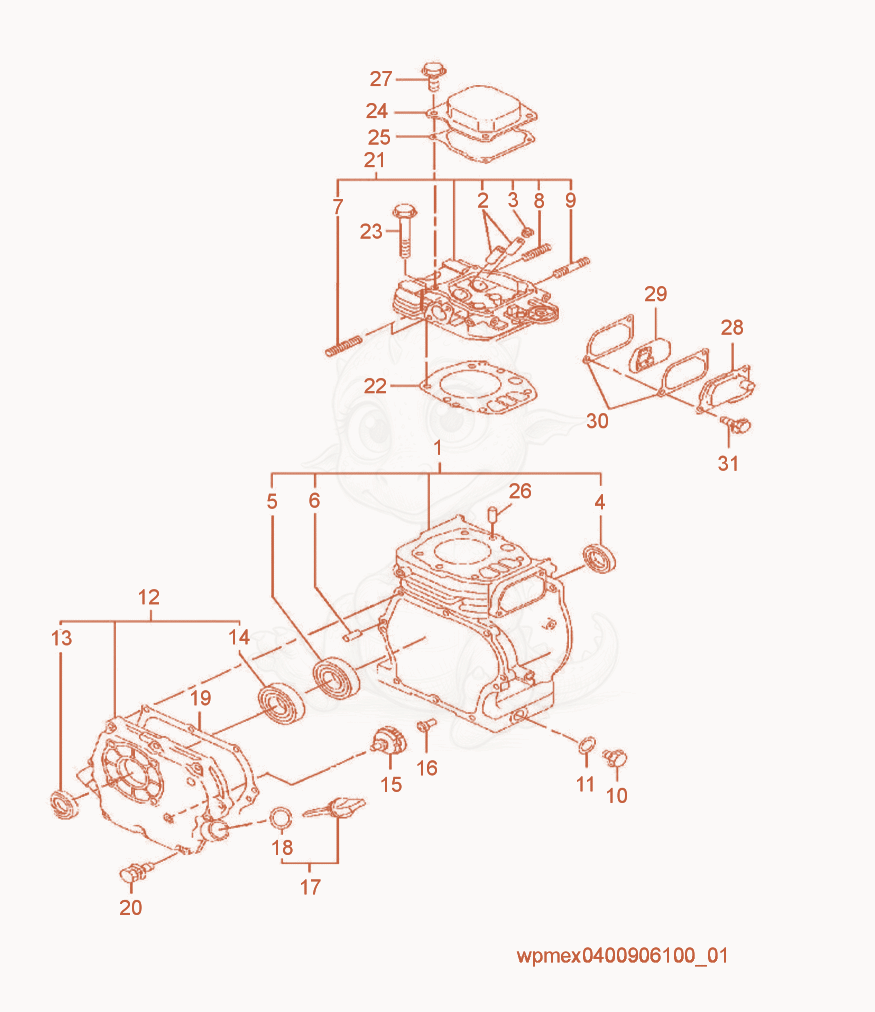

Despiece del Crankcase de una máquina Wacker Neuson VP60HW, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000216696No la vendemos
Crankcase cpl.×1
25000156440
$37.96
GUIDE-VALVE - 5000156440×2
35000156441
$11.02
seal - 5000156441×1
45000029407
$16.42
SEAL-SHAFT 25 X 38 X 7,5B - 5000029407×1
55000216687No la vendemos
Ball bearing×1
65000053598
$0.98
PIN-DOWEL TYPE - 5000053598×2
75000075214
$1.56
STUD 5/16-18 X 1-1/8 - 5000075214×2
85000084310
$2.28
Stud - 5000084310×1
95000216683No la vendemos
Stud×1
105000117215
$11.57
PLUG-OIL - 5000117215×2
115000029327
$0.72
SEAL-RING - 5000029327×2
125000216703No la vendemos
Bearing cover×1
135000077392
$14.70
SEAL-SHAFT 25 X 41.24 X 7 - 5000077392×1
145000216717No la vendemos
Ball bearing×1
155000053622
$53.38
GEAR-COMPLETE,ENGINE GOVERNOR - 5000053622×1
165000029436
$11.62
SLEEVE-ENGINE GOVERNOR - 5000029436×1
175000158415
$8.64
DIPSTICK COMPLETE - 5000158415×2
185000216716No la vendemos
Gasket×2
195000216712No la vendemos
Gasket×2
205000053599
$1.00
SCREW M6 X 30 W/WASHER,HX.HD. - 5000053599×8
215000216706No la vendemos
Cylinder head cpl.×1
225000216704No la vendemos
Gasket×1
235000084316
$3.92
FLANGE-BOLT - 5000084316×4
245000118025
$38.68
COVER-ROCKER - 5000118025×1
255000216713No la vendemos
Gasket×1
265000053598
$0.98
PIN-DOWEL TYPE - 5000053598×2
275000156597
$2.49
BOLT-FLANGE - 5000156597×4
285000117219
$9.37
COVER-BREATHER,COMPLETE - 5000117219×1
295000117220
$28.37
PLATE-BREATHER,COMPLETE - 5000117220×1
305000117220
$28.37
PLATE-BREATHER,COMPLETE - 5000117220×2
315000053648
$2.65
SCREW M6 X 14,HEX.FLANGE - 5000053648×2
325000084322
$33.46
GASKET SET-CRANKCASE - 5000084322×1
