WL110

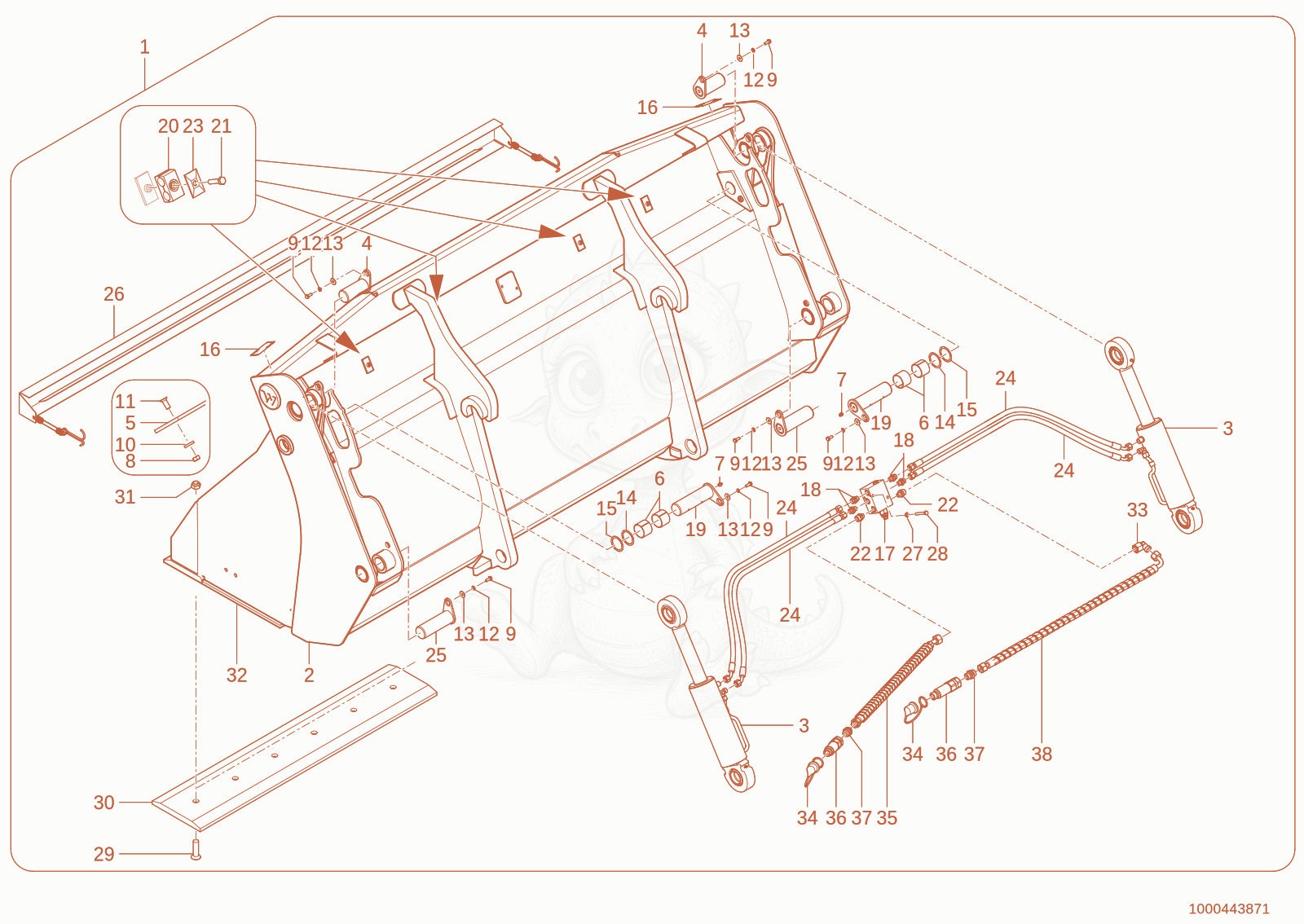

Despiece de multy purpose bucket · WL110(WRL90-05)

11000436110No la vendemos
4in1 Bucket 2500 1,8m³ TPV/WM×1
21000431651No la vendemos
4/1 shovel (V) 2500 mm KRA - 2,0 m³×1
31000357071No la vendemos
tilt ram×2
41000359399
$67.60
pin - 1000359399×2
51000359234No la vendemos
wear out rail×1
61000224690
$20.00
slide bearing - 1000224690×4
71000050469
$1.68
grease nipple - 1000050469×2
81000085583
$1.17
HEXAGON NUT - 1000085583×10
91000015342No la vendemos
hex screw×6
101000082633
$1.69
spring washer - 1000082633×10
111000222827
$3.95
COUNTERSUNK SCREW - 1000222827×10
121000082617
$1.08
spring washer - 1000082617×6
131000013027No la vendemos
washer×6
141000092365
$1.53
FITTING DISC - 1000092365×4
151000092322
$1.03
fitting disc - 1000092322×4
161000183258
$7.97
STICKER 'SECURITY' - 1000183258×2
171000266871
$244.62
X-1000054452 Pressure Reduction Valve - 1000266871×1
181000226157
$9.83
GES12L/M16X1,5 GRAD.EINSCHR.ST - 1000226157×4
191000359395
$88.61
pin - 1000359395×2
201000222625
$1.98
CLAMPING JAWS - 1000222625×4
211000085316
$1.49
hex screw - 1000085316×4
221000226241
$17.27
GES15L/M16X1,5 GRAD.EINSCHR.ST - 1000226241×2
231000222622
$4.36
cover plate - 1000222622×4
241000311644No la vendemos
Hose×4
251000359400
$81.74
pin - 1000359400×2
261000396858No la vendemos
tooth protection×1
271000222819
$1.75
Washer - 1000222819×2
281000085318
$1.11
6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
291000159008
$9.46
COUNTERSUNK SCREW - 1000159008×12
301000388848No la vendemos
wear out rail×2
311000018412No la vendemos
hexagon nut×12
321000436112No la vendemos
4/1 shovel 2500mm FRONT PART×1
331000015512No la vendemos
screw joint×1
341000109416
$8.43
Protection cap - 1000109416×2
351000400740
$51.78
SLHYDR 2SC 12 PN15 0 PN15 30 L850,0K - 1000400740×1
361000315585
$73.93
Coupling - 1000315585×2
371000225980
$4.51
GES15L/R 1/2" GRAD.EINSCHR.ST. - 1000225980×2
381000400741
$49.70
SLHYDR 2SC 12 PN15 0 PN15 90 L850,0K - 1000400741×1
