Articulated wheel loader WL28

Despiece de Universal shovel · WL28

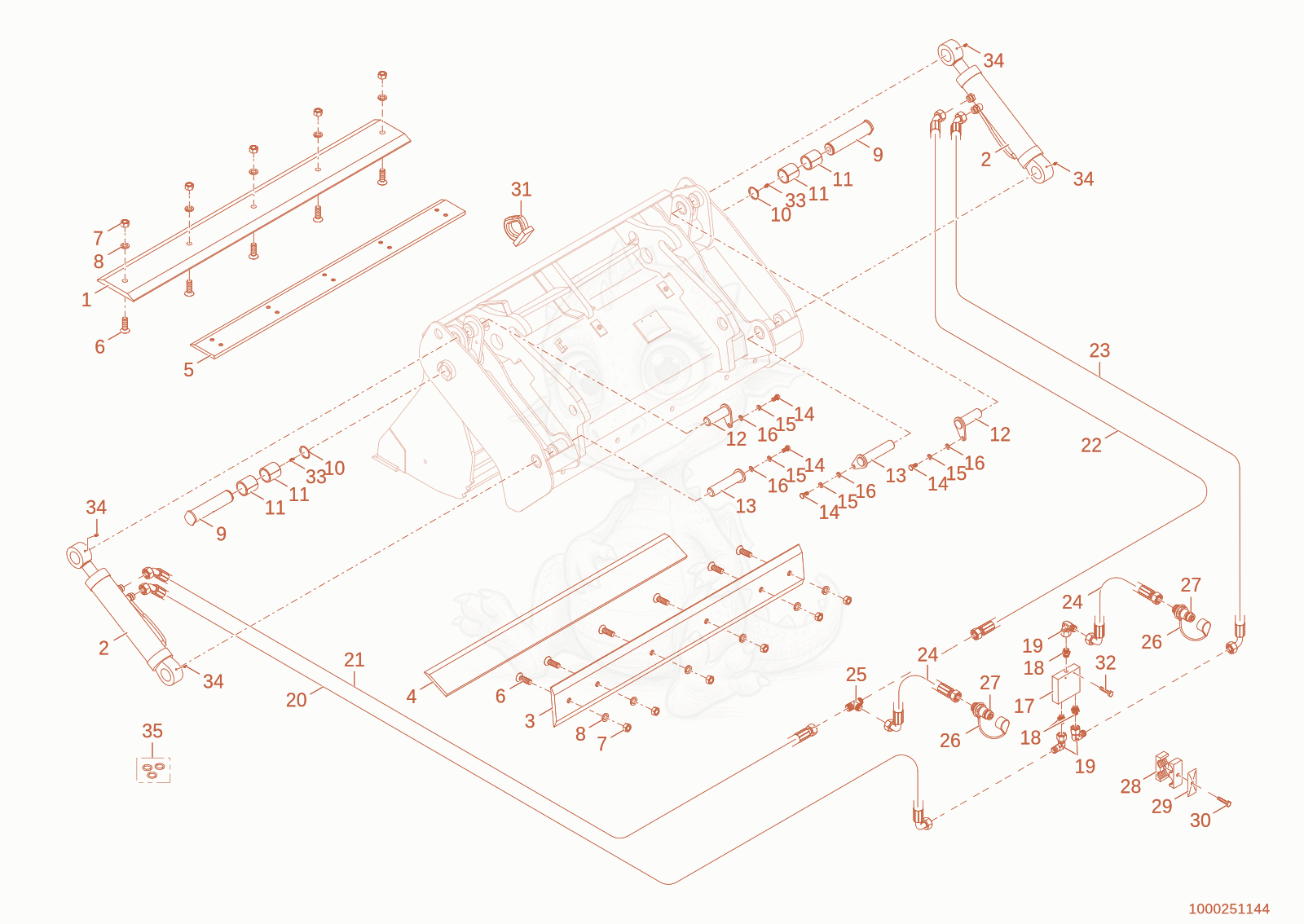

Despiece del Universal shovel de una máquina Wacker Neuson WL28, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000214838No la vendemos
wear out rail×1
21000256496
$1,436.47
Bucketcylinder 1000256496×2
31000214579No la vendemos
wear out rail×1
41000214595No la vendemos
wear out rail×1
51000214824No la vendemos
wear out rail×1
61000222825
$3.83
Schraube M16x 50 snk.10.9 - 1000222825×12
71000085583
$1.17
HEXAGON NUT - 1000085583×12
81000082633
$1.69
spring washer - 1000082633×12
91000224280
$248.81
Mainpin 1000224280×2
101000095360
$1.88
lock ring - 1000095360×2
111000224288
$97.49
slide bearing - 1000224288×4
121000224282
$75.31
CYLINDER PIN - 1000224282×2
131000224285
$85.34
PIN - 1000224285×2
141000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
151000022016No la vendemos
spring washer×4
161000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×4
171000210040No la vendemos
valve×1
181000028596No la vendemos
screw joint×3
191000000573No la vendemos
screw joint×3
201000222216No la vendemos
Hose×1
211000222208No la vendemos
Hose×1
221000222205No la vendemos
Hose×1
231000222211No la vendemos
Hose×1
241000222202No la vendemos
Hose×2
251000232621No la vendemos
Screw coupling×1
261000226073
$4.57
CAP-DUST - 1000226073×2
271000226221
$14.40
plug coupling - 1000226221×2
281000222625
$1.98
CLAMPING JAWS - 1000222625×2
291000031230No la vendemos
cover plate×2
301000085391
$0.91
hex screw - 1000085391×2
311000214682No la vendemos
lock hook×1
321000085457
$0.13
allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
331000050469
$1.68
grease nipple - 1000050469×2
341000223027
$1.96
FITTING-GREASE - 1000223027×4
351000224287No la vendemos
cylinder seal kit×2
351000264951
$145.28
CYLINDER SEAL KIT - 1000264951×1
