WL95

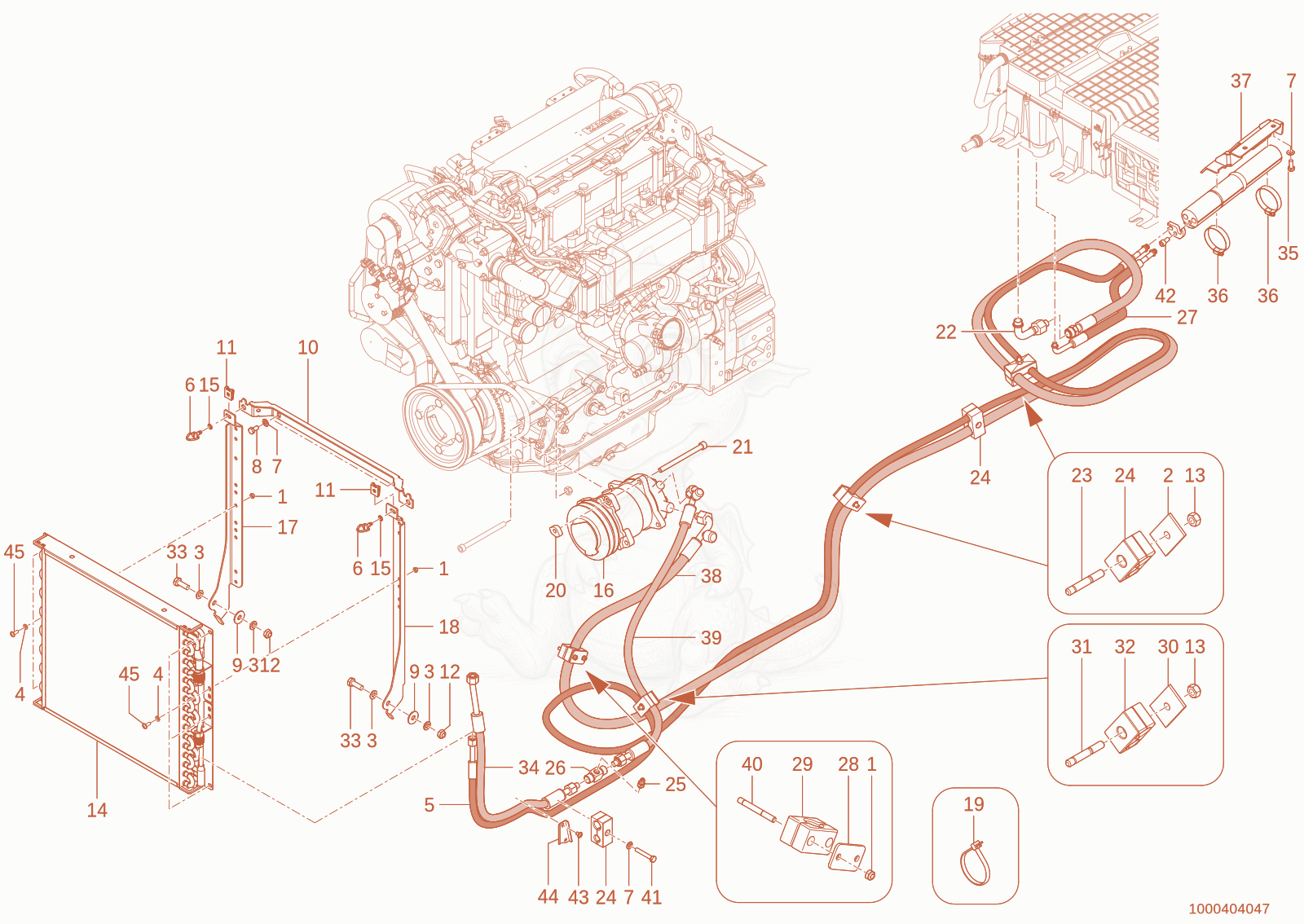

Despiece de Air conditioning system · WL95(R90-02)

Despiece del Air conditioning system de una máquina Wacker Neuson WL95(R90-02), con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×9
  • 21000031245No la vendemos
    cover plate×2
  • 31000092291
    $0.80
    WASHER - 1000092291×4
  • 41000092290
    $0.74
    WASHER - 1000092290×7
  • 51000358298
    $401.61
    hose - 1000358298×1
  • 61000152254
    $16.16
    Lock - 1000152254×2
  • 71000015431No la vendemos
    washer×5
  • 81000019136No la vendemos
    hex screw×2
  • 91000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 101000357524
    $142.71
    Bracket - 1000357524×1
  • 111000152256
    $10.13
    Lock - 1000152256×2
  • 121000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 131000013022No la vendemos
    hexagon nut×3
  • 141000357243
    $987.83
    Condenser - 1000357243×1
  • 151000152255
    $2.97
    Lock - 1000152255×2
  • 161000283361
    $815.81
    Compressoraircondition 1000283361×1
  • 171000434091No la vendemos
    mounting×1
  • 181000434090No la vendemos
    mounting×1
  • 191000089965
    $0.11
    Cable tie 200x4,6 - 1000089965×9
  • 201000179163
    $17.40
    Plate - 1000179163×1
  • 211000246447
    $10.31
    cheese head screw - 1000246447×1
  • 221000376253No la vendemos
    Hose fitting×1
  • 231000048894No la vendemos
    stud×2
  • 241000126725
    $5.32
    CLAMP - 1000126725×4
  • 251000375024
    $305.57
    VALVE - 1000375024×1
  • 261000375757No la vendemos
    Hose fitting×1
  • 271000376252
    $263.96
    hose - 1000376252×1
  • 281000031643No la vendemos
    cover plate×1
  • 291000031591
    $5.05
    CLAMP - 1000031591×1
  • 301000031230No la vendemos
    cover plate×1
  • 311000048892No la vendemos
    stud×1
  • 321000031749
    $4.50
    CLAMP - 1000031749×1
  • 331000015364No la vendemos
    hex screw×2
  • 341000375967
    $186.35
    hose - 1000375967×1
  • 351000013008No la vendemos
    hex screw×2
  • 361000032290
    $3.31
    CLAMP - 1000032290×2
  • 371000388962
    $263.10
    Bracket - 1000388962×1
  • 381000388613
    $376.06
    hose - 1000388613×1
  • 391000388612
    $184.69
    hose - 1000388612×1
  • 401000048887
    $1.31
    STUD - 1000048887×2
  • 411000015344No la vendemos
    hex screw×1
  • 421000048168No la vendemos
    cheese head screw×1
  • 431000187775
    $1.11
    SCREW - 1000187775×2
  • 441000396127
    $57.46
    plate - 1000396127×1
  • 451000187776
    $1.11
    SCREW - 1000187776×7
