WL95

Despiece de Engine bedding · WL95(WRL90-00)

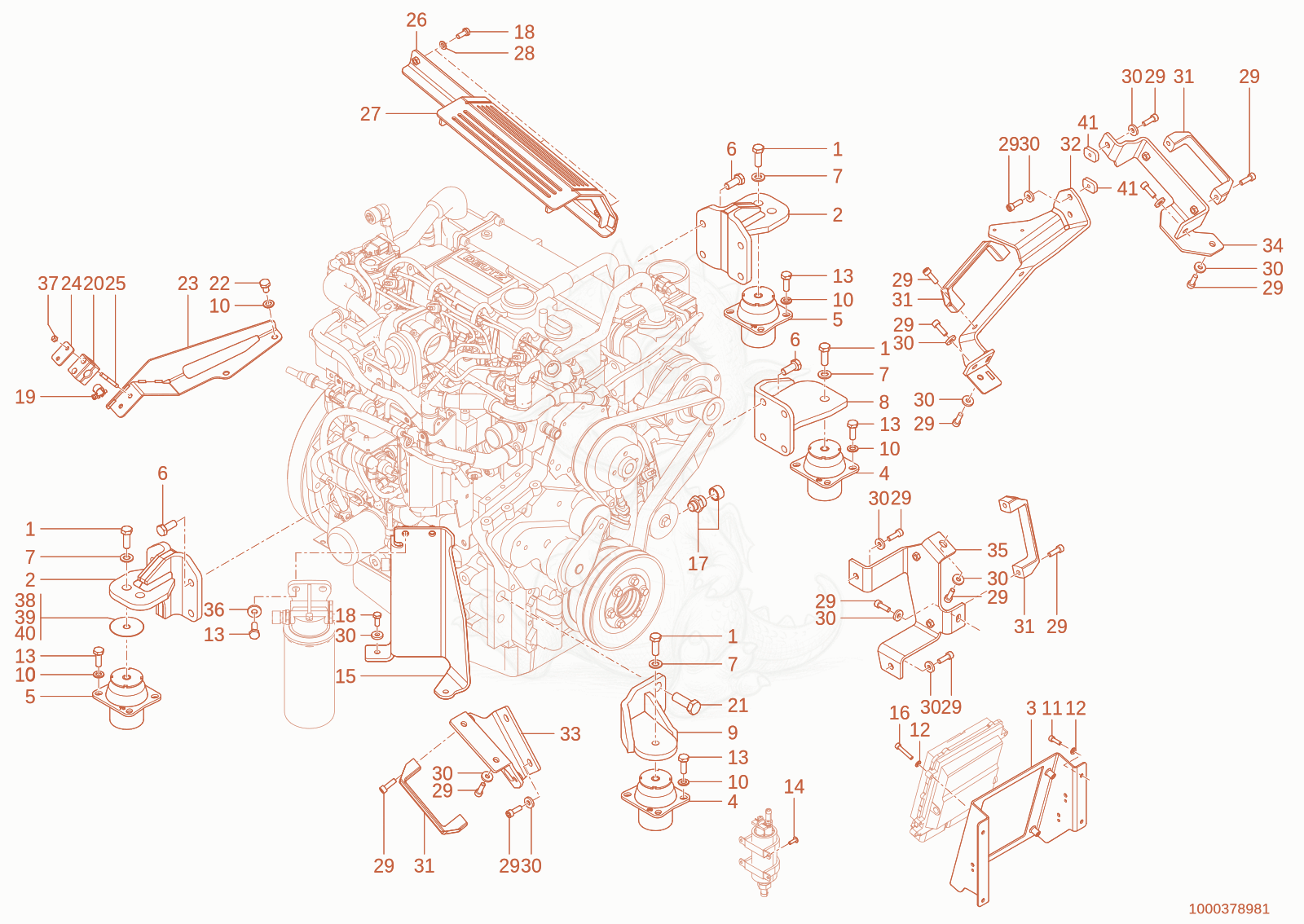

Despiece del Engine bedding de una máquina Wacker Neuson WL95(WRL90-00), con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000047789No la vendemos
    hex screw×4
  • 21000358269No la vendemos
    engine support×2
  • 31000399734
    $231.65
    Bracket - 1000399734×1
  • 41000261731
    $69.47
    hydro.bearing - 1000261731×2
  • 51000261733
    $67.85
    HYDRO.BEARING - 1000261733×2
  • 61000015347No la vendemos
    hex screw×12
  • 71000049219No la vendemos
    washer×4
  • 81000271991
    $198.85
    Enginebedding 1000271991×1
  • 91000271992
    $193.40
    Enginebedding 1000271992×1
  • 101000092291
    $0.80
    WASHER - 1000092291×18
  • 111000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
  • 121000092290
    $0.74
    WASHER - 1000092290×8
  • 131000015364No la vendemos
    hex screw×18
  • 141000052670No la vendemos
    ovalhead screw×4
  • 151000366280
    $338.54
    Bracket - 1000366280×1
  • 161000048166No la vendemos
    cheese head screw×4
  • 171000028095No la vendemos
    drain coupling×1
  • 181000013008No la vendemos
    hex screw×6
  • 191000368665
    $4.06
    clamp - 1000368665×1
  • 201000032051
    $2.39
    CLAMP - 1000032051×1
  • 211000015404No la vendemos
    hex screw×2
  • 221000013009No la vendemos
    hex screw×2
  • 231000381514
    $160.06
    bracket - 1000381514×1
  • 241000031260No la vendemos
    cover plate×1
  • 251000048887
    $1.31
    STUD - 1000048887×2
  • 261000385303
    $168.40
    bracket - 1000385303×1
  • 271000385310No la vendemos
    PROTECTION×1
  • 281000015431No la vendemos
    washer×4
  • 291000022386No la vendemos
    cheese head screw×22
  • 301000095341
    $1.16
    WASHER - 1000095341×17
  • 311000387535
    $16.16
    Handle - 1000387535×4
  • 321000401675
    $490.96
    Bracket - 1000401675×1
  • 331000389093
    $198.03
    Bracket - 1000389093×1
  • 341000401674
    $235.05
    Bracket - 1000401674×1
  • 351000389091
    $298.06
    Bracket - 1000389091×1
  • 361000049278No la vendemos
    washer×2
  • 371000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 381000099801
    $3.70
    DISC - 1000099801×1
  • 391000099800
    $3.77
    DISC - 1000099800×1
  • 401000099802
    $6.04
    DISC - 1000099802×1
  • 411000401671
    $57.22
    Plate - 1000401671×3
