WL950p

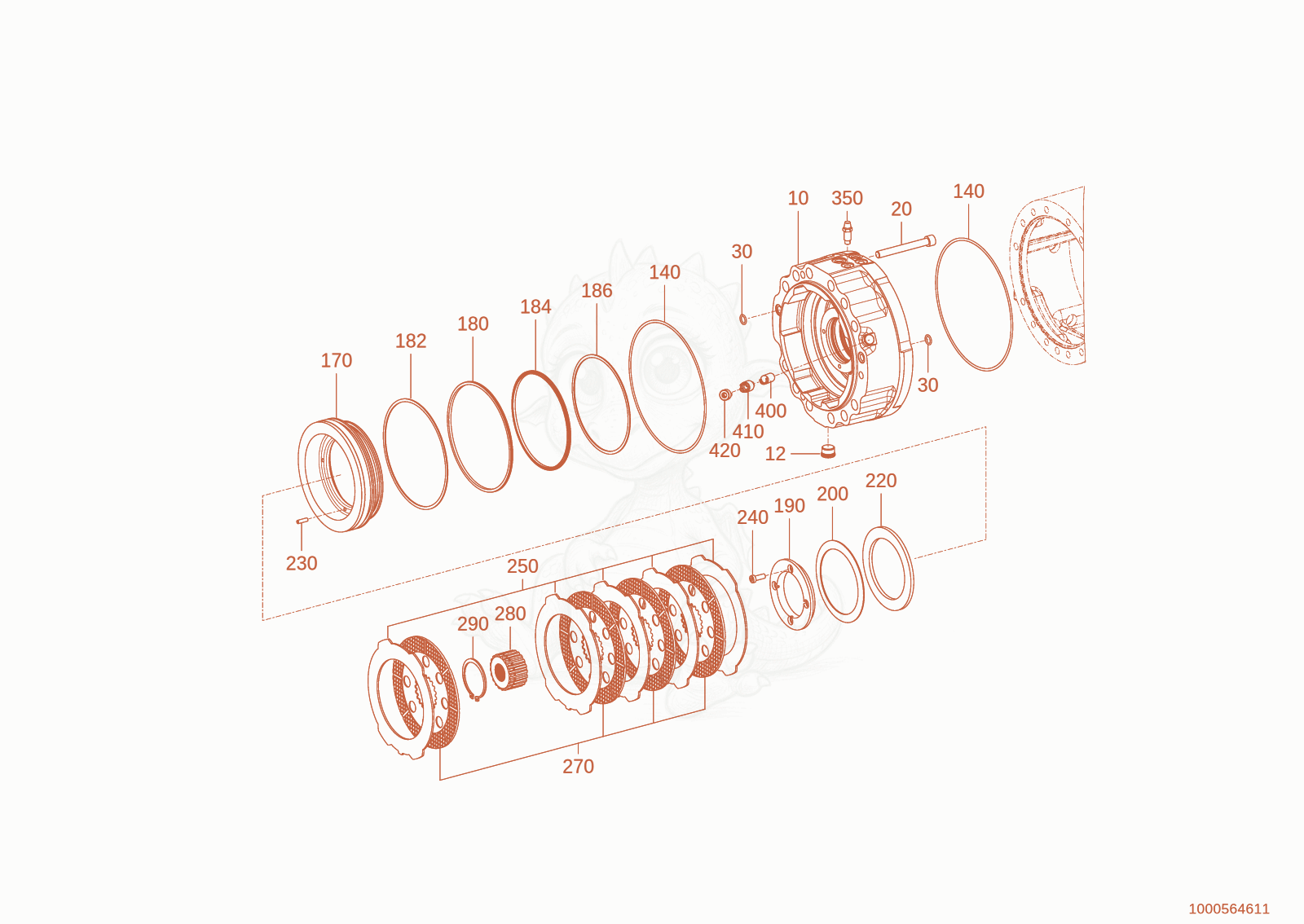

Despiece de multi disc brake · WL950P(A05-05)
- 101000528303No la vendemosbrake housing×1
- 121000528306No la vendemoslock screw×1
- 201000528307No la vendemoscheese head screw×3
- 301000528308No la vendemoso-ring×5
- 1401000528309No la vendemoso-ring×2
- 1701000564607No la vendemosbrake pirton×1
- 1801000528311No la vendemosseal ring×1
- 1821000528312No la vendemossupport ring×1
- 1841000528313No la vendemosseal ring×1
- 1861000528314No la vendemossupport ring×1
- 1901000528315No la vendemosintermediate ring×1
- 2001000528316No la vendemosdisc spring×1
- 2201000528317No la vendemospressure plate×1
- 2301000528318No la vendemosstud×4
- 2401000528319No la vendemoscheese head screw×4
- 2501000528321No la vendemosouter clutch disc×5
- 2701000528323No la vendemosinner disc×4
- 2801000528325No la vendemosdisc carrier×1
- lock ring - 1000092423×2
- 3501000461024No la vendemosventing valve×1
- 4001000528333No la vendemospressure pin×1
- 4101000528336No la vendemosthread pin×2
- 4201000528340No la vendemoslock screw×2
- 101000528303No la vendemosbrake housing×1
- 121000528306No la vendemoslock screw×1
- 201000528307No la vendemoscheese head screw×3
- 301000528308No la vendemoso-ring×5
- 1401000528309No la vendemoso-ring×2
- 1701000564607No la vendemosbrake pirton×1
- 1801000528311No la vendemosseal ring×1
- 1821000528312No la vendemossupport ring×1
- 1841000528313No la vendemosseal ring×1
- 1861000528314No la vendemossupport ring×1
- 1901000528315No la vendemosintermediate ring×1
- 2001000528316No la vendemosdisc spring×1
- 2201000528317No la vendemospressure plate×1
- 2301000528318No la vendemosstud×4
- 2401000528319No la vendemoscheese head screw×4
- 2501000528321No la vendemosouter clutch disc×5
- 2701000528323No la vendemosinner disc×4
- 2801000528325No la vendemosdisc carrier×1
- lock ring - 1000092423×2
- 3501000461024No la vendemosventing valve×1
- 4001000528333No la vendemospressure pin×1
- 4101000528336No la vendemosthread pin×2
- 4201000528340No la vendemoslock screw×2
